Top » Piese de schimb » PIESE METABO » 06875423

KN 6875 - 06875423 - US 120V
[06875423]
KN 6875 - 06875423 - US 120V
Click pentru a mari
Imagini suplimentare
KN 6875 - 06875423 - US 120V
Click pentru a mari

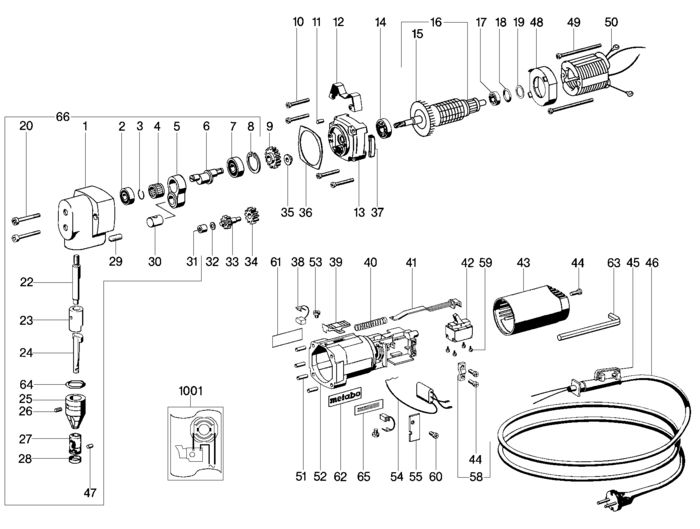

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Housing (315102640) 137236 RON
2 1 1 Ball bearing, 9x26x8 (143110060) 5479 RON
3 1 1 Circlip WR14 (342020680) 446 RON
4 1 1 Needle cage (320050100) 7157 RON
5 1 1 Con rod (341142040) 73930 RON
6 1 1 Eccentric axle (341602710) 9821 RON
7 1 1 Ball bearing, 10x30x9 (143111090) 5926 RON
8 1 1 141180370 - Indisponibil
9 1 1 Spur gear (340011050) 11519 RON
10 1 4 Self-tap. fill. h. screw (141116990) 781 RON
11 1 1 Cylindrical pin (141160340) 446 RON
12 1 1 Foot (339034890) 190 RON
13 1 1 Flange complete (316007430) 46975 RON
14 1 1 Ball bearing, 8x22x7 (143113400) 488 RON
15 1 1 Fan (330000860) 105 RON
16 1 1 Armature cpl. 115 V (310002320) 59166 RON
17 1 1 Ball bearing, 7x22x7 (143110030) 488 RON
18 1 1 Supporting ring (344091990) 781 RON
19 1 1 Washer (141151320) 781 RON
20 1 2 Cap screw (141113730) 781 RON
22 1 1 630202000 - Indisponibil
23 1 1 Guide sleeve (341141040) 4442 RON
24 1 1 Bearing pin cpl. (316007440) 78180 RON
25 1 1 Punch guide (338300870) 108379 RON
26 1 1 Notched taper pin 3x8 (341800050) 446 RON
27 1 1 630203000 - Indisponibil
28 1 1 Cover (341011320) 2459 RON
29 1 1 Grub screw (341701060) 5479 RON
30 1 1 Piston-rod bolt (341144160) 3698 RON
31 1 1 Needle bearing (143113450) 15993 RON
32 1 1 Washer (141150920) 446 RON
33 1 1 Intermediate gear (340011260) 19236 RON
34 1 1 Spur gear (340011030) 7157 RON
35 1 1 Sealing ring (343378120) 2459 RON
36 1 1 Gasket (339010770) 781 RON
37 1 1 Covering strip (343353340) 781 RON
38 1 1 Carbon brush (316033490) 8275 RON
39 1 1 316017230 - Indisponibil
40 1 1 Pressure spring (342000820) 446 RON
41 1 1 Switch rod (343355910) 781 RON
42 1 1 Switch (343404230) 8275 RON
43 1 1 Motor cap (343355880) 3689 RON
44 1 3 Self-tap. fill. h. screw (141116800) 446 RON
45 1 1 Cable sleeve (344100210) 105 RON
46 1 1 Cable with UL-CSA-plug (344492750) 7157 RON
47 1 1 Cylindrical pin (341513840) 446 RON
48 1 1 Baffle (339150510) 105 RON
49 1 2 Self-tap. fill. h. screw (141118260) 446 RON
50 1 1 Field coil 115 V (311007760) 21361 RON
51 1 4 Cylinder sleeve (142160280) 446 RON
52 1 1 Motor housing cpl. (316019670) 13756 RON
53 1 2 Fillister head screw (141110450) 446 RON
54 1 1 399999990 - Indisponibil
55 1 1 399999990 - Indisponibil
58 1 1 Cable clip (316024890) 1340 RON
59 1 4 Fillister head screw (141118990) 446 RON
60 1 1 399999990 - Indisponibil
61 1 1 Rating plate (338009380) 781 RON
62 1 1 Metabo label (338123580) 105 RON
63 1 1 Hexagonal key (344161530) 781 RON
64 1 1 O-ring (143194470) 1340 RON
65 1 1 Warning label (338115880) 1564 RON
66 1 1 Nibbler head (316011710) 442359 RON
1001 1 1 338504300 - Indisponibil
