Top » Piese de schimb » PIESE METABO » 06872001

KU 6872 - 06872001 - EU 230V
[06872001]
KU 6872 - 06872001 - EU 230V
Click pentru a mari
Imagini suplimentare
KU 6872 - 06872001 - EU 230V
Click pentru a mari

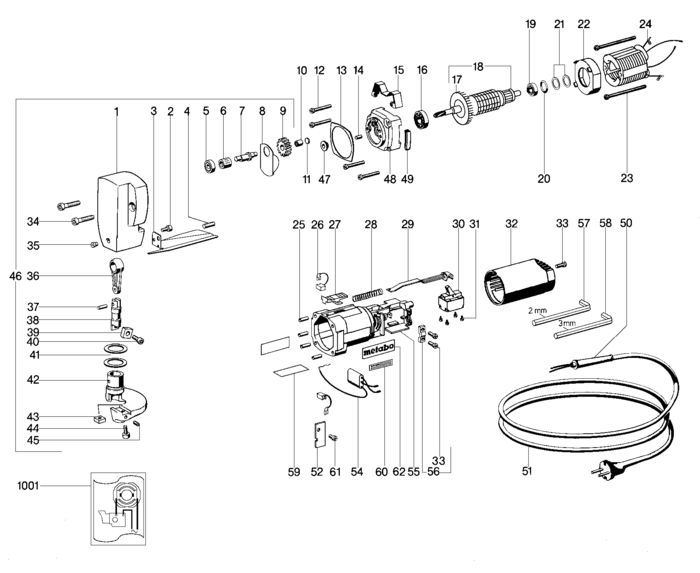

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Housing (315103130) 68673 RON
2 1 1 Cap screw (141113670) 781 RON
3 1 1 Sheet-metal straightener (339122150) 8275 RON
4 1 1 Grub screw (341701610) 488 RON
5 1 1 Ball bearing, 6x19x6 (143112230) Indisponibil Indisponibil
6 1 1 Needle sleeve (320050180) 5926 RON
7 1 1 Eccentric axle (341602820) 59166 RON
8 1 1 Sheet metal plate (339122140) 5926 RON
9 1 1 Spur gear (340011030) 7157 RON
10 1 1 Needle sleeve (143111430) Indisponibil Indisponibil
11 1 1 Butting washer (339001290) 446 RON
12 1 4 Self-tap. fill. h. screw (141116990) 781 RON
13 1 1 Gasket (339010770) 781 RON
14 1 1 Cylindrical pin (141160340) 446 RON
15 1 1 Foot (339034890) 190 RON
16 1 1 Ball bearing, 8x22x7 (143113400) 488 RON
17 1 1 Fan (330000860) 105 RON
18 1 1 Armature cpl. 220 V (310002130) 59166 RON
19 1 1 Ball bearing, 7x22x7 (143110030) 488 RON
20 1 1 O-ring (143192510) 781 RON
21 1 2 Washer (141151320) 781 RON
22 1 1 Baffle (339150510) 105 RON
23 1 2 Self-tap. fill. h. screw (141118260) 446 RON
24 1 1 Field coil 220 V (311007210) 21361 RON
25 1 4 Cylinder sleeve (142160280) 446 RON
26 1 1 Carbon brush (316033570) 7157 RON
27 1 1 316017230 - Indisponibil
28 1 1 Pressure spring (342000820) 446 RON
29 1 1 Switch rod (343355910) 781 RON
30 1 1 Switch (343404230) 8275 RON
31 1 4 Fillister head screw (141116970) 781 RON
32 1 1 Motor cap (343355880) 3689 RON
33 1 3 Self-tap. fill. h. screw (141116800) 446 RON
34 1 2 Cap screw (141113720) 781 RON
35 1 1 Oiler (143190180) 446 RON
36 1 1 341142600 - Indisponibil
37 1 1 Cylindrical pin (341513560) 781 RON
38 1 1 Ram (341051160) 78180 RON
39 1 1 631041000 - Indisponibil
40 1 1 Cap screw (341701600) 781 RON
41 1 2 Compensating Washer (339003970) 1340 RON
42 1 1 Fixed blade support cpl. (341142580) 220451 RON
43 1 1 631042000 - Indisponibil
44 1 1 Cap screw (141113590) 781 RON
45 1 1 Grub screw (141116480) 446 RON
46 1 1 Shear head (316021280) 197187 RON
47 1 1 Sealing ring (343378120) 2459 RON
48 1 1 Flange complete (316007430) 46975 RON
49 1 1 Covering strip (343353340) 781 RON
50 1 1 Cable sleeve (344100640) Indisponibil Indisponibil
51 1 1 Cable with plug (344488350) 8275 RON
52 1 1 Cover (339010750) 781 RON
54 1 1 Interference suppr. cond. (343252530) 5479 RON
55 1 1 Motor housing cpl. (316019660) 24046 RON
56 1 1 Cable clip (316024890) 1340 RON
57 1 1 Hexagonal key (344161570) 446 RON
58 1 1 Hexagonal key (344161540) 781 RON
59 1 1 Rating plate (338007220) 446 RON
60 1 2 Metabo label (338123580) 105 RON
61 1 1 Self-tap. fill. h. screw (141118730) 446 RON
62 1 1 399999990 - Indisponibil
1001 1 1 338500700 - Indisponibil
