Top » Piese de schimb » PIESE METABO » 06870003

KU 6870 - 06870003 - EU 230V
[06870003]
KU 6870 - 06870003 - EU 230V
Click pentru a mari
Imagini suplimentare
KU 6870 - 06870003 - EU 230V
Click pentru a mari

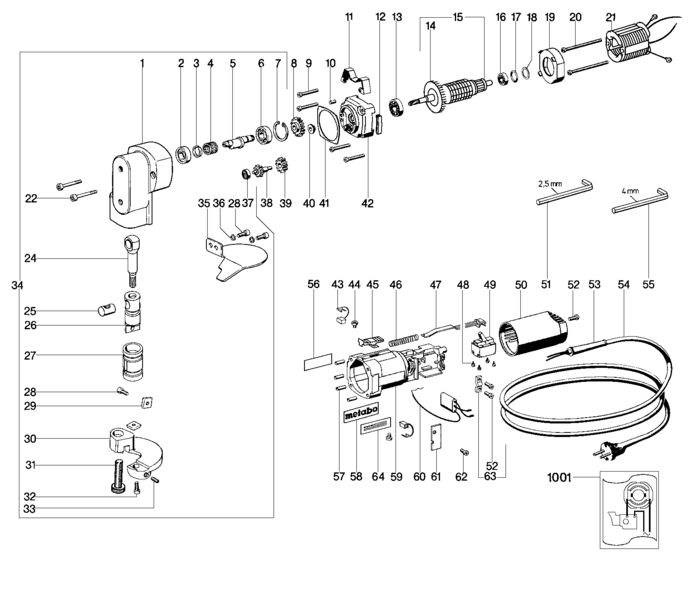

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Housing (315103430) 73930 RON
2 1 1 Ball bearing, 9x24x7 (143110110) 955 RON
3 1 1 Clamping ring (341011310) 3689 RON
4 1 1 Needle cage (320050070) 7157 RON
5 1 1 Eccentric axle (341603030) 64311 RON
6 1 1 Ball bearing, 10x26x8 (143112150) 5926 RON
7 1 1 Retaining ring (141180350) 781 RON
8 1 1 Spur gear (340011050) 11519 RON
9 1 4 Self-tap. fill. h. screw (141116990) 781 RON
10 1 1 Cylindrical pin (141160340) 446 RON
11 1 1 Foot (339034890) 190 RON
12 1 1 Covering strip (343353340) 781 RON
13 1 1 Ball bearing, 8x22x7 (143113400) 488 RON
14 1 1 Fan (330000860) 105 RON
15 1 1 Armature cpl. 220 V (310002130) 59166 RON
16 1 1 Ball bearing, 7x22x7 (143110030) 488 RON
17 1 1 Supporting ring (344091990) 781 RON
18 1 1 Washer (141151320) 781 RON
19 1 1 Baffle (339150510) 105 RON
20 1 2 Self-tap. fill. h. screw (141118260) 446 RON
21 1 1 Field coil 220 V (311004220) 21361 RON
22 1 2 Cap screw (141113730) 781 RON
24 1 1 Con rod (341144150) 4442 RON
25 1 1 Piston-rod bolt (341144160) 3698 RON
26 1 1 Ram (341144140) 9821 RON
27 1 1 Bush (341144170) 26730 RON
28 1 3 Cap screw (141113670) 781 RON
29 1 2 630201000 - Indisponibil
30 1 1 Fixed blade support (341144130) 137236 RON
31 1 1 Cap screw (141117450) 1340 RON
32 1 1 Cap screw (141113680) 781 RON
33 1 1 Grub screw (341701070) 2124 RON
34 1 1 Shear head cpl. (316020000) 442359 RON
35 1 1 Sheet-metal straightener (339037970) 18341 RON
36 1 2 Spring washer (141150270) 446 RON
37 1 1 143112140 - Indisponibil
38 1 1 Intermediate gear (340011040) 18341 RON
39 1 1 Spur gear (340011030) 7157 RON
40 1 1 Sealing ring (343378120) 2459 RON
41 1 1 Gasket (339010770) 781 RON
42 1 1 Flange complete (316007430) 46975 RON
43 1 1 Carbon brush (316033460) 8275 RON
44 1 2 Fillister head screw (141110450) 446 RON
45 1 1 316017230 - Indisponibil
46 1 1 Pressure spring (342000820) 446 RON
47 1 1 Switch rod (343355910) 781 RON
48 1 4 Fillister head screw (141116970) 781 RON
49 1 1 Switch (343404230) 8275 RON
50 1 1 Motor cap (343355880) 3689 RON
51 1 1 Hexagonal key (344160780) 781 RON
52 1 3 Self-tap. fill. h. screw (141116800) 446 RON
53 1 1 Cable sleeve (344100640) Indisponibil Indisponibil
54 1 1 Cable with plug (344486730) 8275 RON
55 1 1 Hexagonal key (344160770) 781 RON
56 1 1 Rating plate (338007160) 446 RON
57 1 4 Cylinder sleeve (142160280) 446 RON
58 1 1 Metabo label (338123580) 105 RON
59 1 1 Motor housing cpl. (316019670) 13756 RON
60 1 1 Interference suppr. cond. (343252530) 5479 RON
61 1 1 Cover (339010750) 781 RON
62 1 1 Self-tap. fill. h. screw (141116130) 446 RON
63 1 1 Cable clip (316024890) 1340 RON
64 1 1 399999990 - Indisponibil
1001 1 1 338500700 - Indisponibil
