Top » Piese de schimb » PIESE METABO » 0010066000 10

660/15/90 D - 0010066000 10 - 3 / 400V/50Hz
[0010066000 10]
660/15/90 D - 0010066000 10 - 3 / 400V/50Hz
Click pentru a mari
Imagini suplimentare
660/15/90 D - 0010066000 10 - 3 / 400V/50Hz
Click pentru a mari
660/15/90 D - 0010066000 10 - 3 / 400V/50Hz
Click pentru a mari

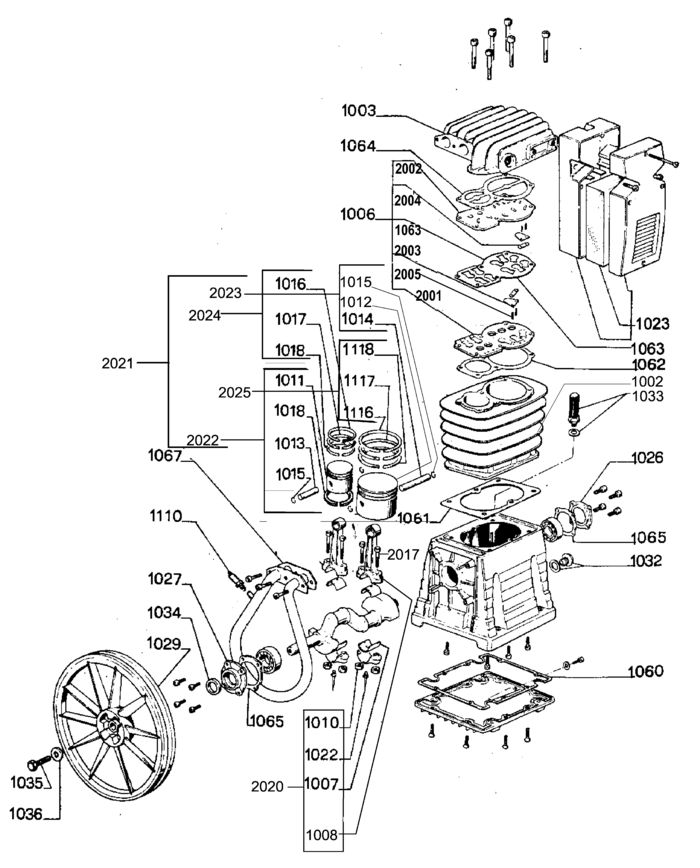

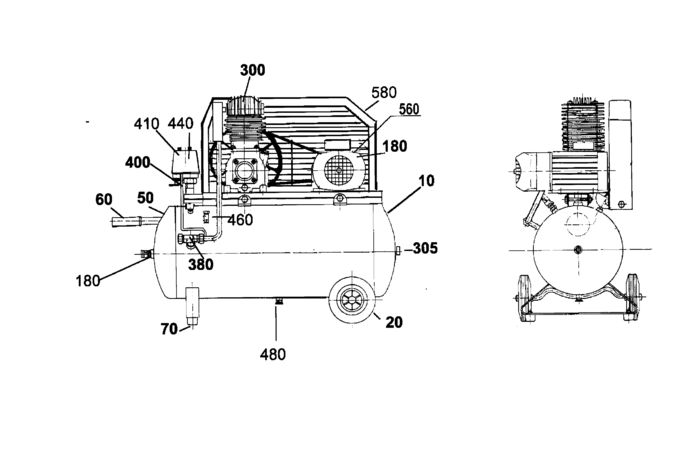

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
10 1 1 1314051277 - Indisponibil
20 1 1 WHEEL, SOLID RUBBER RD 250/60 NABE 20X63 (87270035781) 11519 RON
50 1 1 RATCHET LOCK LEVER, MALE M 8X25 (87006088990) 3689 RON
60 1 1 HANDLE BAR (81001144959) 955 RON
70 1 1 RUBBER-METAL ANTI-VIBR. MOUNT 40X40 /M 8 (87058059174) 3018 RON
180 1 1 8013011614 - Indisponibil
300 1 1 COMPRESSOR PUMP B 5900/B (81313030128) 392698 RON
305 1 1 THREADED PLUG 1/4" (86109069173) 2124 RON
380 1 1 CHECK VALVE, ELBOW TYPE R 1/2"X RD 18 (81001014745) 24046 RON
400 1 1 RELIEF VALVE EV 5 MECHANISCH (87834025994) 18341 RON
410 1 1 AUTOM. PRESSURE CONTROL SWITCH 12-16 BAR (88101037798) 4442 RON
440 1 1 MOTOR PROTECTION RELAY 6,1-10,3 A (88103027889) 26730 RON
460 1 1 SAFETY VALVE R 1/4" 16 BAR (87833009626) 26730 RON
480 1 1 DRAIN VALVE R 1/4" GRO? /ET (87830009595) 7157 RON
560 1 1 V-BELT PULLEY SPA 170-2 RDI 28 NUT 8 (87240041841) 3698 RON
580 1 1 PROTECTIVE GRATING (81001414123) 137236 RON
1002 1 1 CYLINDER ET (81310157097) 245282 RON
1003 1 1 CYLINDER HEAD ET (81319156190) 83437 RON
1006 1 1 VALVE ASSEMBLY ET (81319156204) 14839 RON
1007 1 1 CONROD BEARING SHELL ET (81319166714) 13756 RON
1008 1 1 CONNECTING ROD ET (81319165645) 54357 RON
1010 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
1011 1 1 1319161844 - Indisponibil
1012 1 1 1319161860 - Indisponibil
1013 1 1 1315161858 - Indisponibil
1014 1 1 1315161874 - Indisponibil
1015 1 1 CIRCLIP FOR BORES 18X1 ET (86401627209) 446 RON
1016 1 1 1319164258 - Indisponibil
1017 1 1 1319164266 - Indisponibil
1018 1 1 1319164274 - Indisponibil
1022 1 1 OIL SPLASH NEEDLE ET (81319164789) 190 RON
1023 1 1 7825156253 - Indisponibil
1029 1 1 FLYWHEEL RD 430 ET (81319155852) 88582 RON
1032 1 1 OIL SIGHT GLASS 1" ET (81319155879) 7157 RON
1033 1 1 CRANKCASE BREATHER 3/8" ET (81319155909) 10288 RON
1034 1 1 ROTARY SHAFT SEAL 30x42x7 ET (87635638910) 7157 RON
1060 1 1 CRANKCASE PACKING ET (81319164460) 18341 RON
1061 1 1 CYLINDER FOOT GASKET ET (81319162000) 8275 RON
1062 1 1 CYLINDER GASKET ET (81319156239) 13756 RON
1063 1 1 PACKING, VALVE PLATE ET (81319156212) 21361 RON
1064 1 1 CYLINDER HEAD GASKET ET (81319156247) 18341 RON
1065 1 1 PACKING, BEARING CAP ET (81319164525) 1564 RON
1116 1 1 PISTON RING RD 105X2,5 ET (81319164312) 15993 RON
1117 1 1 PISTON RING RD 105X2,5 ET (81319164312) 15993 RON
1118 1 1 OIL WIPING RING RD 105X5,5 ET (81319164339) 30980 RON
2003 1 1 FLAP VALVE ET (81319155810) 3018 RON
2004 1 1 FRICTION SPRING ET (87052161805) 781 RON
2005 1 1 PARALLEL PIN 2,5X7 ET (86500161815) 446 RON
2017 1 1 6143166595 - Indisponibil
2020 1 1 1319161836 - Indisponibil
2021 1 1 PISTON SET WITH RINGS ET (81319166846) 197187 RON
2022 1 1 PISTON ASSEMBLY, HP ET (81319166811) 83437 RON
2023 1 1 PISTON ASSEMBLY, LP ET (81319166854) 117663 RON
2024 1 1 PISTON RING SET, HP ET (81319161887) 54357 RON
