Top » Piese de schimb » PIESE METABO » 0010066018 11

660/15 - 0010066018 11 - 3 / 400V/50Hz
[0010066018 11]
660/15 - 0010066018 11 - 3 / 400V/50Hz
Click pentru a mari
Imagini suplimentare
660/15 - 0010066018 11 - 3 / 400V/50Hz
Click pentru a mari
660/15 - 0010066018 11 - 3 / 400V/50Hz
Click pentru a mari
660/15 - 0010066018 11 - 3 / 400V/50Hz
Click pentru a mari

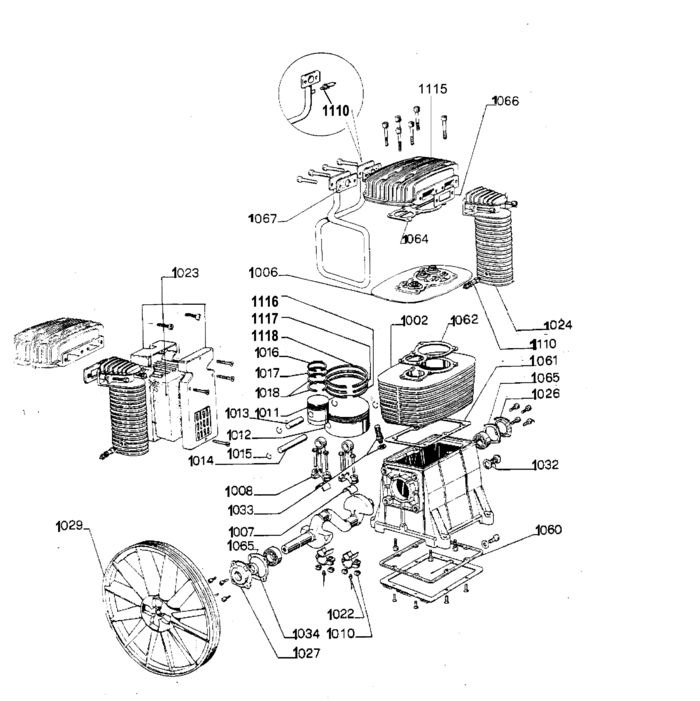

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
126 1 1 V-BELT 13X1725 LI (87230013181) 18341 RON
127 1 1 7853185960 - Indisponibil
146 1 1 PRESSURE HOSE ET (81319650519) 14839 RON
200 1 1 COMPRESSOR PUMP B 5900/B L?FTERRAD BEARB (81313650223) 392698 RON
1002 1 1 CYLINDER ET (81310157097) 245282 RON
1006 1 1 VALVE ASSEMBLY ET (81319156204) 14839 RON
1007 1 4 CONROD BEARING SHELL ET (81319166714) 13756 RON
1010 1 4 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
1011 1 1 1319161844 - Indisponibil
1012 1 1 1319161860 - Indisponibil
1013 1 1 1315161858 - Indisponibil
1014 1 1 1315161874 - Indisponibil
1015 1 4 CIRCLIP FOR BORES 18X1 ET (86401627209) 446 RON
1016 1 1 1319164258 - Indisponibil
1017 1 1 1319164266 - Indisponibil
1018 1 1 1319164274 - Indisponibil
1022 1 1 OIL SPLASH NEEDLE ET (81319164789) 190 RON
1023 1 1 7825156253 - Indisponibil
1024 1 1 AFTERCOOLER ET (81313631792) 73930 RON
1029 1 1 FLYWHEEL RD 430 ET (81319155852) 88582 RON
1032 1 1 OIL SIGHT GLASS 1" ET (81319155879) 7157 RON
1033 1 1 CRANKCASE BREATHER 3/8" ET (81319155909) 10288 RON
1034 1 1 ROTARY SHAFT SEAL 30x42x7 ET (87635638910) 7157 RON
1060 1 1 PACKING, HOUSING LID ET (81319665656) 18341 RON
1061 1 1 CYLINDER FOOT GASKET ET (81319162000) 8275 RON
1062 1 1 CYLINDER GASKET ET (81319156239) 13756 RON
1064 1 1 CYLINDER HEAD GASKET ET (81319156247) 18341 RON
1065 1 2 PACKING, BEARING CAP ET (81319164525) 1564 RON
1066 1 1 PACKING, AFTERCOOLER ET (81319161747) 8275 RON
1067 1 1 INTERMEDIATE COOLER ET (81319636281) 8275 RON
1110 1 1 SAFETY VALVE R 1/4" 4,0-4,5BAR ET (87833626781) 7157 RON
1115 1 1 CYLINDER HEAD ET (81319650594) 93951 RON
1116 1 1 PISTON RING RD 105X2,5 ET (81319164312) 15993 RON
1117 1 1 PISTON RING RD 105X2,5 ET (81319164320) 18341 RON
1118 1 1 OIL WIPING RING RD 105X5,5 ET (81319164339) 30980 RON
