660/11/270 DS - 0010060311 10 - 3 / 400V/50Hz
[0010060311 10]
660/11/270 DS - 0010060311 10 - 3 / 400V/50Hz
Click pentru a mari
Imagini suplimentare
660/11/270 DS - 0010060311 10 - 3 / 400V/50Hz
Click pentru a mari
660/11/270 DS - 0010060311 10 - 3 / 400V/50Hz
Click pentru a mari

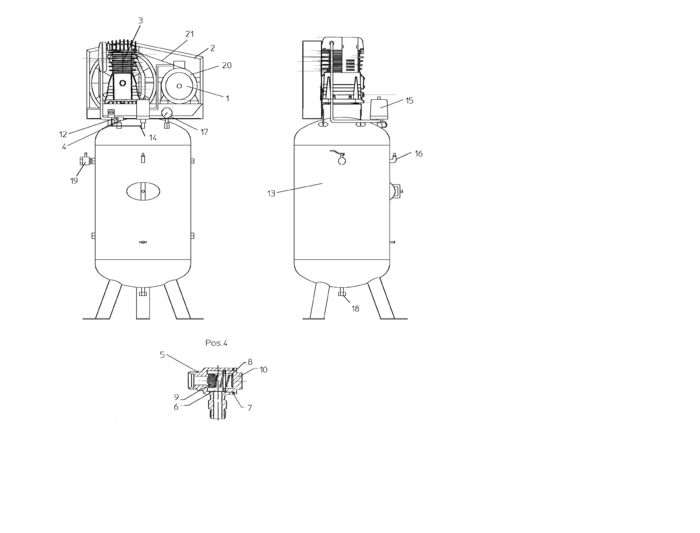

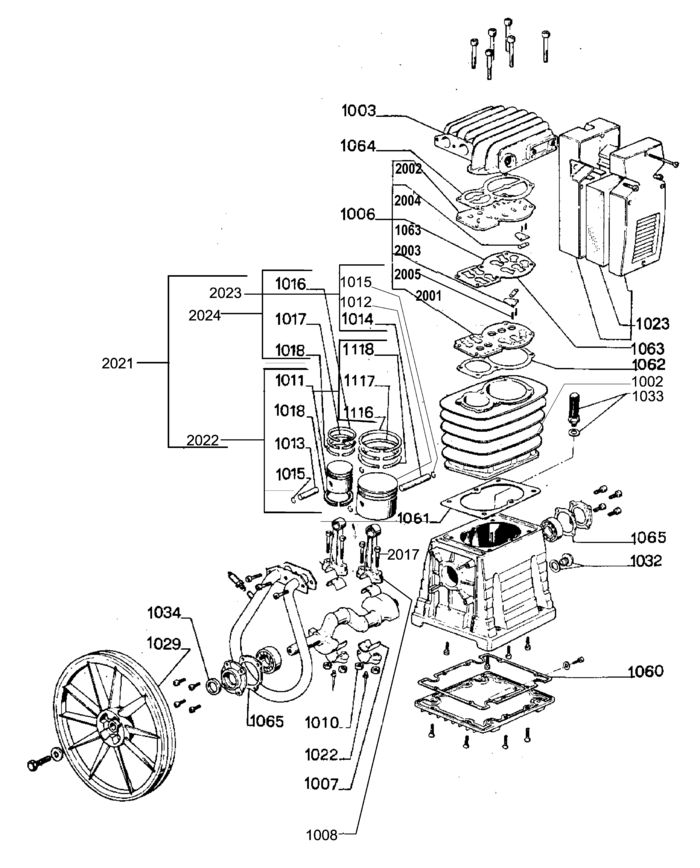

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ELECTRIC MOTOR 400/690/3/50 3000UPM B3 (88013642819) 295725 RON
2 1 1 PROTECTIVE GRATING (81001414123) 137236 RON
3 1 1 COMPRESSOR PUMP B 5900/B (81313030128) 392698 RON
4 1 1 CHECK VALVE, ELBOW TYPE R 1/2"X RD 18 (81001014745) 24046 RON
5 1 1 VALVE BODY R 1/2" AG X RD 18 (81310097574) 10288 RON
6 1 1 CAGE RD 27,5X26 (81311052310) 105 RON
7 1 1 1311052620 - Indisponibil
8 1 1 PRESSURE SPRING RD 1XDM 15X40 ROSTFREI (87051052638) 446 RON
9 1 1 7631057092 - Indisponibil
10 1 1 THREADED PLUG C M30X1,5 (86109055202) 8275 RON
12 1 1 UNION NUT M 18LH / M 26X1,5 CHROMATIERT (87874098200) 2459 RON
13 1 1 1314179680 - Indisponibil
14 1 1 RELIEF VALVE EV 5 MECHANISCH (87834025994) 18341 RON
15 1 1 AUTOM. PRESSURE CONTROL SWITCH 7-11 BAR (88101037780) 34448 RON
16 1 1 SAFETY VALVE R 1/4" 11 BAR (87833009618) 19236 RON
17 1 1 7823010219 - Indisponibil
18 1 1 DRAIN VALVE R 1/2" (87830029286) 15993 RON
19 1 1 BALL VALVE 3/4" X 3/4" (87830026279) 10288 RON
20 1 1 V-BELT PULLEY SPA 170-2 RDI 28 NUT 8 (87240041841) 3698 RON
1002 1 1 CYLINDER ET (81310157097) 245282 RON
1003 1 1 CYLINDER HEAD ET (81319156190) 83437 RON
1006 1 1 VALVE ASSEMBLY ET (81319156204) 14839 RON
1007 1 1 CONROD BEARING SHELL ET (81319166714) 13756 RON
1008 1 1 CONNECTING ROD ET (81319165645) 54357 RON
1010 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
1011 1 1 1319161844 - Indisponibil
1012 1 1 1319161860 - Indisponibil
1013 1 1 1315161858 - Indisponibil
1014 1 1 1315161874 - Indisponibil
1015 1 1 CIRCLIP FOR BORES 18X1 ET (86401627209) 446 RON
1016 1 1 1319164258 - Indisponibil
1017 1 1 1319164266 - Indisponibil
1018 1 1 1319164274 - Indisponibil
1022 1 1 OIL SPLASH NEEDLE ET (81319164789) 190 RON
1023 1 1 7825156253 - Indisponibil
1029 1 1 FLYWHEEL RD 430 ET (81319155852) 88582 RON
1032 1 1 OIL SIGHT GLASS 1" ET (81319155879) 7157 RON
1033 1 1 CRANKCASE BREATHER 3/8" ET (81319155909) 10288 RON
1034 1 1 ROTARY SHAFT SEAL 30x42x7 ET (87635638910) 7157 RON
1060 1 1 CRANKCASE PACKING ET (81319164460) 18341 RON
1061 1 1 CYLINDER FOOT GASKET ET (81319162000) 8275 RON
1062 1 1 CYLINDER GASKET ET (81319156239) 13756 RON
1063 1 1 PACKING, VALVE PLATE ET (81319156212) 21361 RON
1064 1 1 CYLINDER HEAD GASKET ET (81319156247) 18341 RON
1065 1 1 PACKING, BEARING CAP ET (81319164525) 1564 RON
1116 1 1 PISTON RING RD 105X2,5 ET (81319164312) 15993 RON
1117 1 1 PISTON RING RD 105X2,5 ET (81319164312) 15993 RON
1118 1 1 OIL WIPING RING RD 105X5,5 ET (81319164339) 30980 RON
2003 1 1 FLAP VALVE ET (81319155810) 3018 RON
2004 1 1 FRICTION SPRING ET (87052161805) 781 RON
2005 1 1 PARALLEL PIN 2,5X7 ET (86500161815) 446 RON
2017 1 1 6143166595 - Indisponibil
2021 1 1 PISTON SET WITH RINGS ET (81319166846) 197187 RON
2022 1 1 PISTON ASSEMBLY, HP ET (81319166811) 83437 RON
2023 1 1 PISTON ASSEMBLY, LP ET (81319166854) 117663 RON
2024 1 1 PISTON RING SET, HP ET (81319161887) 54357 RON
7000 1 1 MOTOR PROTECTION RELAY 6,1-10,3 A (88103027889) 26730 RON
7001 1 1 COMPRESSION RING S-R 18L (87875098211) 1564 RON
