Top » Piese de schimb » PIESE METABO » 0230066019 10

660/10/90 DF - 0230066019 10 - 3 / 400V/50Hz
[0230066019 10]
660/10/90 DF - 0230066019 10 - 3 / 400V/50Hz
Click pentru a mari
Imagini suplimentare
660/10/90 DF - 0230066019 10 - 3 / 400V/50Hz
Click pentru a mari
660/10/90 DF - 0230066019 10 - 3 / 400V/50Hz
Click pentru a mari

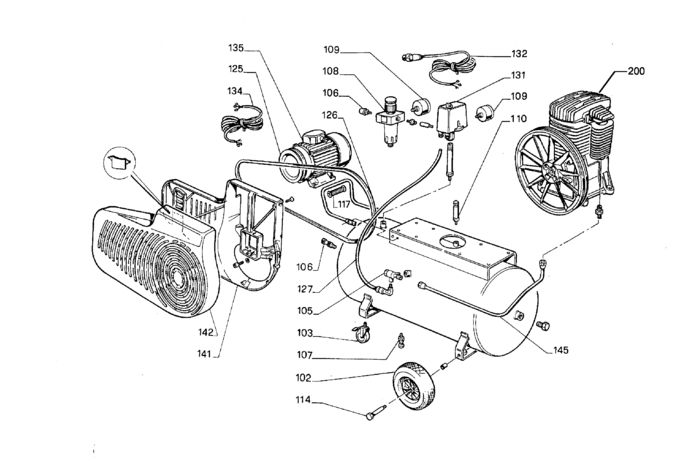

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
102 1 1 WHEEL, PNEUMATIC TYRE RD 250 / NABE 20 E (87270182555) 26730 RON
103 1 1 SWIVEL PLATE CASTER (87271650277) 2848 RON
105 1 1 CHECK VALVE ET (87831626849) 34448 RON
107 1 1 DRAIN VALVE R 1/4" GRO? /ET (87830009595) 7157 RON
108 1 1 SERVICE UNIT ET (87822626852) 14839 RON
110 1 1 SAFETY VALVE R 3/8" 11 BAR ET (87833182638) 33553 RON
114 1 1 KEY PIN RD 20X105 ET (81315182677) 10288 RON
117 1 1 HANDLE BAR SLEEVE RD 20 ET (87008679490) 13756 RON
125 1 1 V-BELT PULLEY 180X2 BOHRUNG 28 /ET (87240627145) 4442 RON
126 1 1 KEILRIEMEN A 72 (87230626868) 446 RON
127 1 1 7853185960 - Indisponibil
145 1 1 PRESSURE LINE ET (81001626872) 108379 RON
200 1 1 COMPRESSOR PUMP B 5900/B L?FTERRAD BEARB (81313650223) 392698 RON
1002 1 1 CYLINDER ET (81310157097) 245282 RON
1006 1 1 VALVE ASSEMBLY ET (81319156204) 14839 RON
1007 1 1 CONROD BEARING SHELL ET (81319166714) 13756 RON
1010 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
1011 1 1 1319161844 - Indisponibil
1012 1 1 1319161860 - Indisponibil
1013 1 1 1315161858 - Indisponibil
1014 1 1 1315161874 - Indisponibil
1015 1 1 CIRCLIP FOR BORES 18X1 ET (86401627209) 446 RON
1016 1 1 1319164258 - Indisponibil
1017 1 1 1319164266 - Indisponibil
1018 1 1 1319164274 - Indisponibil
1022 1 1 OIL SPLASH NEEDLE ET (81319164789) 190 RON
1023 1 1 7825156253 - Indisponibil
1024 1 1 AFTERCOOLER ET (81313631792) 73930 RON
1029 1 1 FLYWHEEL RD 430 ET (81319155852) 88582 RON
1032 1 1 OIL SIGHT GLASS 1" ET (81319155879) 7157 RON
1033 1 1 CRANKCASE BREATHER 3/8" ET (81319155909) 10288 RON
1034 1 1 ROTARY SHAFT SEAL 30x42x7 ET (87635638910) 7157 RON
1060 1 1 CRANKCASE PACKING ET (81319164460) 18341 RON
1061 1 1 CYLINDER FOOT GASKET ET (81319162000) 8275 RON
1062 1 1 CYLINDER GASKET ET (81319156239) 13756 RON
1064 1 1 CYLINDER HEAD GASKET ET (81319156247) 18341 RON
1065 1 1 PACKING, BEARING CAP ET (81319164525) 1564 RON
1066 1 1 PACKING, AFTERCOOLER ET (81319161747) 8275 RON
1067 1 1 INTERMEDIATE COOLER ET (81319636281) 8275 RON
1110 1 1 SAFETY VALVE R 1/4" 4,0-4,5BAR ET (87833626781) 7157 RON
1116 1 1 PISTON RING RD 105X2,5 ET (81319164312) 15993 RON
1117 1 1 PISTON RING RD 105X2,5 ET (81319164320) 18341 RON
1118 1 1 OIL WIPING RING RD 105X5,5 ET (81319164339) 30980 RON
