LP 652/10/90 DF - 0230065225 10 - 3 / 400V/50Hz
[0230065225 10]
LP 652/10/90 DF - 0230065225 10 - 3 / 400V/50Hz
Click pentru a mari
Imagini suplimentare
LP 652/10/90 DF - 0230065225 10 - 3 / 400V/50Hz
Click pentru a mari
LP 652/10/90 DF - 0230065225 10 - 3 / 400V/50Hz
Click pentru a mari

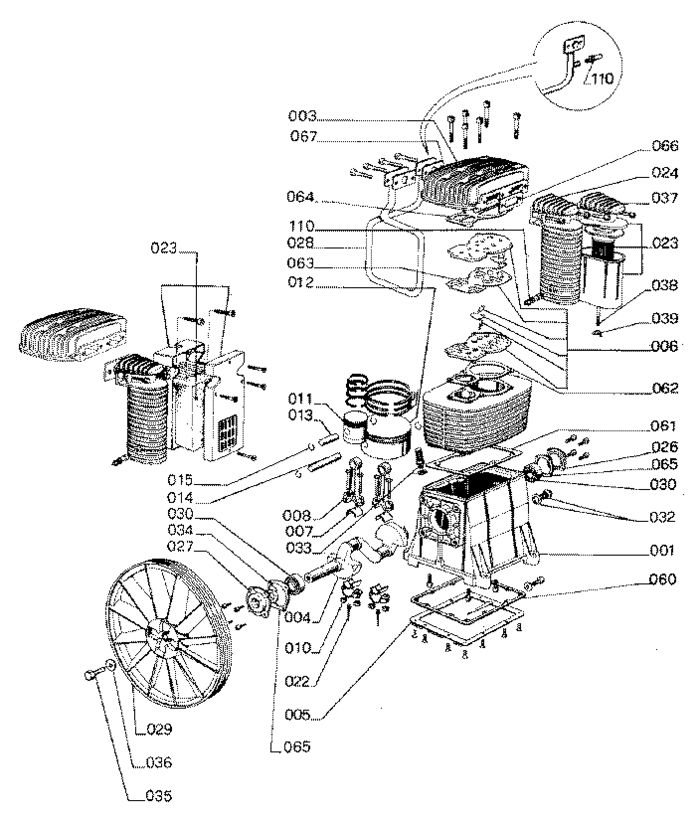

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
6 1 1 VALVE ASSEMBLY ET (81319156204) 14839 RON
7 1 1 CONROD BEARING SHELL ET (81319166714) 13756 RON
8 1 1 CONNECTING ROD ET (81319165645) 54357 RON
11 1 1 1319161844 - Indisponibil
12 1 1 PISTON, LP RD 100 ET (81319163812) 108379 RON
13 1 1 1315161858 - Indisponibil
22 1 1 OIL SPLASH NEEDLE ET (81319164789) 190 RON
23 1 1 AIR FILTER ET (87825156318) 18341 RON
24 1 1 AFTERCOOLER ET (81313611562) 33553 RON
29 1 1 FLYWHEEL RD 430 ET (81319155852) 88582 RON
32 1 1 OIL SIGHT GLASS 1" ET (81319155879) 7157 RON
33 1 1 CRANKCASE BREATHER 3/8" ET (81319155909) 10288 RON
61 1 1 CYLINDER FOOT GASKET ET (81319164509) 8275 RON
62 1 1 CYLINDER GASKET ET (81319164517) 15993 RON
63 1 1 PACKING, VALVE PLATE ET (81319156212) 21361 RON
64 1 1 CYLINDER HEAD GASKET ET (81319156247) 18341 RON
65 1 1 PACKING, AFTERCOOLER ET (81319161747) 8275 RON
66 1 1 PACKING, BEARING CAP ET (81319164525) 1564 RON
100 1 1 1313627825 - Indisponibil
102 1 1 WHEEL, PNEUMATIC TYRE RD 250 / NABE 20 E (87270182555) 26730 RON
103 1 1 7057627160 - Indisponibil
105 1 1 CHECK VALVE ET (87831626849) 34448 RON
106 1 1 7801009071 - Indisponibil
107 1 1 DRAIN VALVE R 1/4" GRO? /ET (87830009595) 7157 RON
108 1 1 SERVICE UNIT ET (87822626852) 14839 RON
109 1 1 PRESSURE GAUGE, REAR CONNECT RD 40 R1/4" (87823088501) 11519 RON
110 1 1 SAFETY VALVE R 1/4" 4,0-4,5BAR ET (87833626781) 7157 RON
111 1 1 SAFETY VALVE R 3/8" 11 BAR ET (87833182638) 33553 RON
114 1 1 KEY PIN RD 20X105 ET (81315182677) 10288 RON
125 1 1 V-BELT PULLEY 180X2 BOHRUNG 28 /ET (87240627145) 4442 RON
126 1 1 V-BELT 13X1825 LI (87230036661) 19236 RON
127 1 1 PRESSURE HOSE 6/8 ET (87853185978) 4249 RON
128 1 1 7853185960 - Indisponibil
131 1 1 AUTOM. PRESSURE CONTROL SWITCH MDR3/11 E (88101182755) 88582 RON
135 1 1 8013011614 - Indisponibil
142 1 1 1001626880 - Indisponibil
145 1 1 PRESSURE LINE ET (81001626872) 108379 RON
7000 1 1 AFTERCOOLER ET (81313631792) 73930 RON
7010 1 1 1319166960 - Indisponibil
7015 1 1 PROTECTIVE GRATING ET (81311627810) 19236 RON
7020 1 1 COVER ET (81311627801) 21361 RON
7025 1 1 PISTON RING SET, HP ET (81319161887) 54357 RON
7050 1 1 INTERMEDIATE COOLER ET (81319633231) 127394 RON
