Top » Piese de schimb » PIESE METABO » 00626390

B E 622 S R+L - 00626390 - GB 110V
[00626390]
B E 622 S R+L - 00626390 - GB 110V
Click pentru a mari
Imagini suplimentare
B E 622 S R+L - 00626390 - GB 110V
Click pentru a mari

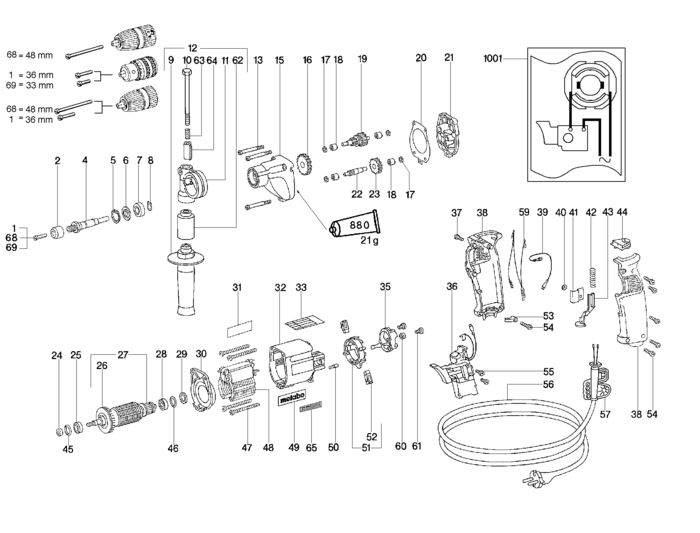

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 399999990 - Indisponibil
2 1 1 399999990 - Indisponibil
4 1 1 Spindle (341602990) 19236 RON
5 1 1 Retaining ring (141181560) 446 RON
6 1 1 Cover plate (343362170) 3689 RON
7 1 1 Ball bearing, 12x28x8 (143111440) 955 RON
8 1 1 RETAINING RING (141180060) 446 RON
9 1 1 314000550 - Indisponibil
10 1 1 Hexagon head screw (141121470) 781 RON
11 1 1 Clamping piece (343359780) 2124 RON
12 1 1 631074000 - Indisponibil
13 1 3 Tight-fit screw plast. 45 (341702180) 781 RON
15 1 1 Gear housing cpl. (316024070) 30980 RON
16 1 1 Spur gear (340011640) 11519 RON
17 1 4 Butting washer (339001290) 446 RON
18 1 4 Needle sleeve (143111430) Indisponibil Indisponibil
19 1 1 Intermediate gear (316022930) 34448 RON
20 1 1 Gasket (339210270) 1340 RON
21 1 1 Gear flange cpl. (316022940) 19236 RON
22 1 1 Intermediate gear (340011630) 15993 RON
23 1 1 Spur gear (340011620) 11519 RON
24 1 1 Sealing ring (343356500) 446 RON
25 1 1 Ball bearing, 8x22x7 (143114880) Indisponibil Indisponibil
26 1 1 Fan cpl. (330001060) 190 RON
27 1 1 Armature cpl. 115 V (310006220) 41718 RON
28 1 1 Ball bearing, 6x19x6 (143112230) Indisponibil Indisponibil
29 1 1 Washer (141153400) 781 RON
30 1 1 Intermediate flange (343361780) 2459 RON
31 1 1 Rating plate (338029140) 446 RON
32 1 1 Motor housing (315012320) 11519 RON
33 1 1 Indication label (338108250) 1340 RON
35 1 1 Pressure plate cpl. (316021020) 4249 RON
36 1 1 Electronic unit,120V/50Hz (343072760) 26730 RON
37 1 1 Screw (341702050) 446 RON
38 1 1 Pistol grip (343362350) 8275 RON
39 1 1 Strand cpl. AWG18SW (344490150) 105 RON
40 1 1 Circlip (141181760) 446 RON
41 1 1 Cover (339111020) 446 RON
42 1 1 Pressure spring (342001210) 446 RON
43 1 1 Locking catch (343362460) 446 RON
44 1 1 Cover (343361770) 781 RON
45 1 1 O-ring (143192570) 781 RON
46 1 1 O-ring (143192430) Indisponibil Indisponibil
47 1 4 Self-tap. fill. h. screw (141118260) 446 RON
48 1 1 Field coil 115 V (311008880) 26730 RON
49 1 1 338115630 - Indisponibil
50 1 1 Index bolt (342001140) 781 RON
51 1 1 Setting ring compl.,R+L (316025770) 955 RON
52 1 1 Brush with holder (316033740) 5926 RON
53 1 1 Cable clip (343362490) 781 RON
54 1 6 Screw (141120340) 446 RON
55 1 2 Fillister head screw (141116970) 781 RON
56 1 1 Cable without plug,110V (344489670) 13756 RON
57 1 1 Cable sleeve (344100590) 105 RON
59 1 1 399999990 - Indisponibil
60 1 1 Insulating disc (341052920) 1564 RON
61 1 2 Self-tap. fill. h. screw (141116840) 446 RON
62 1 1 Extension (343370240) 781 RON
63 1 1 Pressure spring (342007800) 781 RON
64 1 1 Locking bushing (343364910) 781 RON
65 1 1 399999990 - Indisponibil
68 1 1 399999990 - Indisponibil
69 1 1 399999990 - Indisponibil
880 1 1 Grease 50Gr 1,8oz (344130970) 488 RON
1001 1 1 338500070 - Indisponibil
