BW 600/4,20 DNB - 0106004200 10 - 3 / 400V/50Hz
[0106004200 10]
BW 600/4,20 DNB - 0106004200 10 - 3 / 400V/50Hz
Click pentru a mari
Imagini suplimentare
BW 600/4,20 DNB - 0106004200 10 - 3 / 400V/50Hz
Click pentru a mari

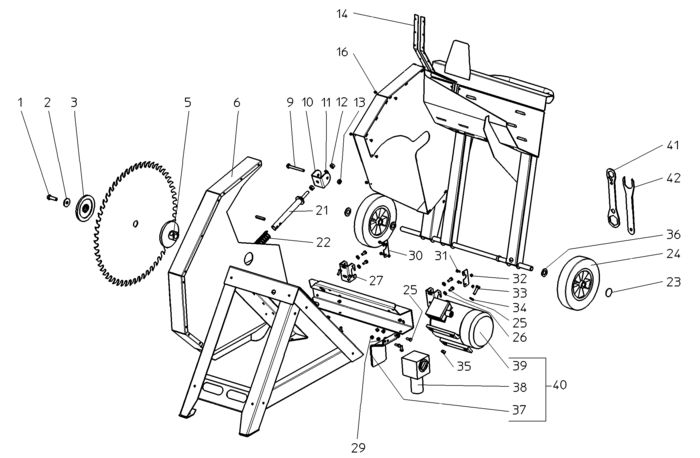

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HEXAGON HEAD SCREW M 12X40 VERZ. (86103027770) 446 RON
2 1 1 WASHER 40X12X4 BW600/ET (81385683371) 3018 RON
3 1 1 BLADE COLLAR, OUTER BW600/ET (81380683365) 18341 RON
5 1 1 BLADE COLLAR BW600/ET (81380683357) 26730 RON
6 1 1 COVER PLATE BL 1,50X892,5X896,5 BW600-NE (81382684202) 54357 RON
9 1 1 HEXAGON HEAD SCRE M 10X80 VERZ. (86103618817) 1340 RON
10 1 1 U-BLECH BW600 (81382682463) 5479 RON
11 1 2 Washer (86300016705) Indisponibil Indisponibil
12 1 1 HEXAGON NUT (86200017992) 446 RON
13 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002313) 446 RON
14 1 2 INLAY STRIP 2,00X22X496 BW600 (81381681609) 5926 RON
16 1 6 GLIDE PIECE (82391202772) 446 RON
21 1 1 SPRING GUIDE BW 600 GEPULVERT (81010681665) 15993 RON
22 1 1 PRESSURE SPRING 4X32X120 BW600 (87051682496) 7157 RON
23 1 2 STARLOCK WITH CAP RD 20 (87016026551) 105 RON
24 1 2 WHEEL, SOLID RUBBER RD 250/60 NABE 20X63 (87270035781) 11519 RON
25 1 10 Hex head screw (86103001178) Indisponibil Indisponibil
26 1 4 Washer (86300016322) Indisponibil Indisponibil
27 1 2 ANGLE BRACKET, ROCKER BEARING BL 2,99X14 (81482407486) 1564 RON
29 1 10 Flange nut (6209110995) 446 RON
30 1 2 ROCKER RETAINER BL 2,00X33X80 (81482407753) 781 RON
31 1 4 Hex head screw (86103001127) 446 RON
32 1 4 Flange nut (86209114230) 446 RON
33 1 4 HEXAGON HEAD SCREW M 10X40 VERZ. (86103001259) 446 RON
34 1 4 SPRING LOCK WASHER B 10 VERZ. (86301002554) 446 RON
35 1 4 FLANGE NUT M 10 VERZ./VERZAHNUNGSAUF (86209675984) 446 RON
36 1 2 MEDIUM WASHER (86300087696) 446 RON
37 1 1 SWITCH PLATE BL 1,5X108X216 Z-F?RMIG (81332036064) 2124 RON
38 1 1 SWITCH SSK DNB UC400V M=6,0A PHW K900VB/ (88132681199) 88582 RON
39 1 1 ELECTRIC MOTOR 400/3/50 1500UPM (88013681202) 197187 RON
40 1 1 1010683269 - Indisponibil
41 1 1 Key (81492102829) 3689 RON
42 1 1 OPEN END SPANNER SW 34 (89101683254) 3689 RON
