Top » Piese de schimb » PIESE METABO » 00557190

BE 560 - 00557190 - AU 240V
[00557190]
BE 560 - 00557190 - AU 240V
Click pentru a mari
Imagini suplimentare
BE 560 - 00557190 - AU 240V
Click pentru a mari

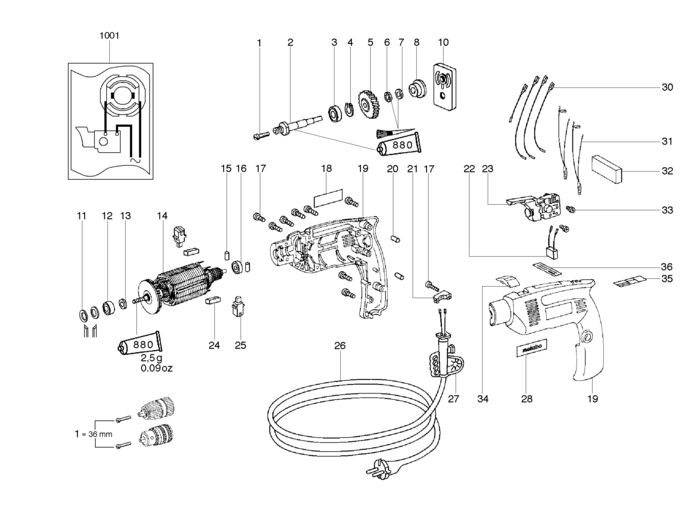

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Cheese-head screw (341701940) 781 RON
2 1 1 Spindle (341603410) 10288 RON
3 1 1 Ball bearing, 12x28x8 (143111080) 5926 RON
4 1 1 RETAINING RING (141180060) 446 RON
5 1 1 Spur gear (341054650) 5926 RON
6 1 1 Ball holder (320050260) 1564 RON
7 1 1 Washer (339005870) 446 RON
8 1 1 Pressure plate (341055040) 3689 RON
10 1 1 Gear flange cpl. (316026010) 5926 RON
11 1 2 Cup spring (141150590) 446 RON
12 1 1 Ball bearing, 8x22x7 (143113400) 488 RON
13 1 1 Washer (341055170) 781 RON
14 1 1 Arrmature + field coil (316027100) 24046 RON
15 1 2 Rubber plug (344091420) 446 RON
16 1 1 Ball bearing, 6x19x6 (143112230) Indisponibil Indisponibil
17 1 9 Self-tap. fill. h. screw (141116020) 781 RON
18 1 1 Rating plate (338039140) 446 RON
19 1 1 343371830 - Indisponibil
20 1 2 Rubber plug (344092220) 446 RON
21 1 1 Cable clip (343362490) 781 RON
22 1 1 Suppressor (343254010) 1340 RON
23 1 1 343406360 - Indisponibil
24 1 2 Rubber plug (344093350) 446 RON
25 1 1 Brush holder cpl. (316033870) 5479 RON
26 1 1 Cable with plug (344491010) 5926 RON
27 1 1 Cable sleeve (344100590) 105 RON
28 1 1 Metabo label (338115220) 781 RON
30 1 1 Strand set (344493140) 190 RON
31 1 2 Suppressor (343253940) 2459 RON
32 1 1 Insert (344103000) 446 RON
33 1 2 Fillister head screw (141116970) 781 RON
34 1 1 Dummy slide (343371960) 446 RON
35 1 1 Indication label (338115270) 446 RON
36 1 1 399999990 - Indisponibil
880 1 1 Grease GL 402 (344130650) 488 RON
1001 1 1 338500260 - Indisponibil
