Top » Piese de schimb » PIESE METABO » 05175180

DS W 5175 - 05175180 - CH 230V
[05175180]
DS W 5175 - 05175180 - CH 230V
Click pentru a mari
Imagini suplimentare
DS W 5175 - 05175180 - CH 230V
Click pentru a mari

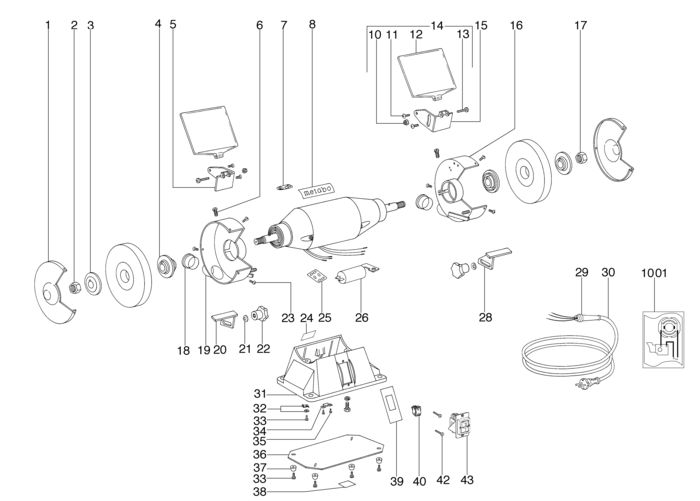

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 2 Wheel guard cover (339202640) 13756 RON
2 1 1 Hexagonal nut (141131300) 1340 RON
3 1 2 Clamping flange (315414460) 7157 RON
4 1 2 Labyrinth flange (315414470) 10288 RON
5 1 1 Angle left (339128010) 7157 RON
6 1 2 Cap screw (141111390) 781 RON
7 1 1 GS APPROVAL SEAL (338110710) 781 RON
8 1 1 Metabo label (338115520) 1340 RON
10 1 2 Hexagonal lock nut (141130930) 446 RON
11 1 4 Fillister head screw (141110600) 446 RON
12 1 2 Eye shield (344350130) 5479 RON
13 1 2 Fillister head screw (141115970) 781 RON
14 1 2 Eye protection (316026000) 955 RON
15 1 1 Angle right (339128030) 7157 RON
16 1 1 Wheel guard right (339202660) 21361 RON
17 1 1 Hexagonal nut (141130180) 1340 RON
18 1 2 Plug (343371470) 105 RON
19 1 1 Wheel guard left (339202650) 21361 RON
20 1 1 Table left (315414480) 8275 RON
21 1 2 Saucer spring (141150540) 446 RON
22 1 2 Star grip (143170030) 1564 RON
23 1 6 Fillister head screw (141110580) 446 RON
24 1 1 Rating plate (338033140) 781 RON
25 1 1 Insulation (339051210) 781 RON
26 1 1 343253910 - Indisponibil
28 1 1 Table right (315414490) 8275 RON
29 1 1 Cable sleeve (344094990) 3018 RON
30 1 1 344492960 - Indisponibil
31 1 1 Foot (315414500) 26730 RON
32 1 1 Grounding terminal (339128040) 446 RON
33 1 5 Cap screw (141111070) 446 RON
34 1 1 Cable clip (339128050) 105 RON
35 1 2 Cap screw (141111080) 446 RON
36 1 1 Base plate (339210790) 2459 RON
37 1 4 Rubber foot (344095030) 105 RON
38 1 1 Indication label (338105510) 781 RON
39 1 1 Face plate (341145770) 105 RON
40 1 1 Switch (343406190) 5926 RON
42 1 2 Fillister head screw (141110460) 446 RON
43 1 1 Switch (343408430) 488 RON
1001 1 1 338501550 - Indisponibil
