Top » Piese de schimb » PIESE METABO » 05014001

TB E 5014 - 05014001 - EU 230V
[05014001]
TB E 5014 - 05014001 - EU 230V
Click pentru a mari
Imagini suplimentare
TB E 5014 - 05014001 - EU 230V
Click pentru a mari

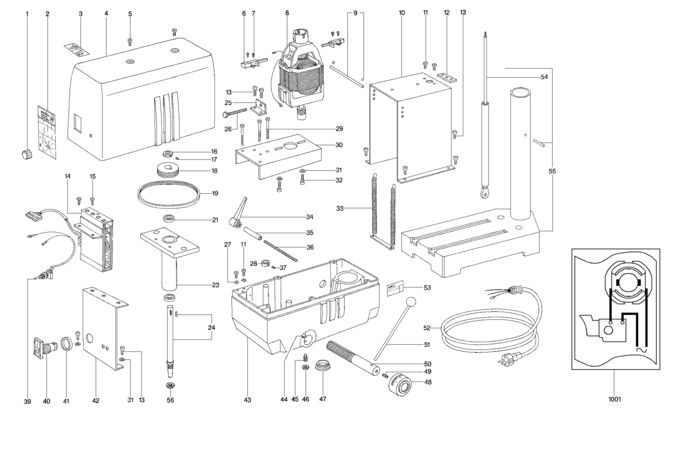

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Control knob (343369540) 5479 RON
2 1 1 Indication label (338109130) 2124 RON
3 1 1 Pictograph (338109230) 2124 RON
4 1 1 Wheel guard (343369470) 68673 RON
5 1 2 Fillister head screw (141117120) 446 RON
6 1 2 Carbon brush (343011490) 8275 RON
7 1 4 Fillister head screw (141110470) 446 RON
8 1 1 Motor compl. (317001900) 270112 RON
9 1 1 Retaining rod (316024350) 3018 RON
10 1 1 Retraining sheet (339127040) 2848 RON
11 1 4 Cap screw (141113830) 446 RON
12 1 1 Cover plate (315414010) 18341 RON
13 1 8 Cap screw (141113840) 781 RON
14 1 1 Electronic unit (343075690) 9821 RON
15 1 2 Hexagon head screw (141119180) 446 RON
16 1 1 nut (341004720) 13756 RON
17 1 1 141119930 - Indisponibil
18 1 1 Belt pulley (341200880) 26730 RON
19 1 1 V-Belt (344260230) 18341 RON
21 1 2 Ball bearing, 15x35x11 (143111520) 7157 RON
23 1 1 Spindle sleeve cpl. (341145190) 88582 RON
24 1 1 Spindle B16 (341603380) 41718 RON
25 1 1 Clamping angle (315414040) 5926 RON
26 1 1 Hexagon head screw (141113340) 781 RON
27 1 2 Serrated lock washer (141150430) 446 RON
28 1 1 Setting ring (341004740) 11519 RON
29 1 3 Cap screw (141113940) 446 RON
30 1 1 Motor holder (315414050) 21361 RON
31 1 4 Washer Washer cod vechi 86300016365 (141151940) 446 RON
32 1 2 Cap screw (141113850) 781 RON
33 1 1 Tension spring (316024370) 7157 RON
34 1 1 Clamping lever (341111960) 8275 RON
35 1 1 Spacing tube (341004730) 4249 RON
36 1 1 Threaded rod (341112290) 3018 RON
37 1 1 Grub screw (141112610) 446 RON
39 1 1 Potentiometer (343075740) 19236 RON
40 1 1 Switch (343407170) 26730 RON
41 1 1 Spacer ring (343369550) 7157 RON
42 1 1 Supporting angle (339131950) 10288 RON
43 1 1 Head (315413960) 295725 RON
44 1 1 Stop (339126930) 2124 RON
45 1 1 Grub screw (141116470) 781 RON
46 1 1 Plain hexagon nut (141130240) 781 RON
47 1 1 Cap (343369530) 1340 RON
48 1 1 Stop ring compl. (316024290) 34448 RON
49 1 1 Grub screw (141115040) 781 RON
50 1 1 Intermediate gear (340003050) 4442 RON
51 1 1 Drill lever compl. (341112280) 7157 RON
52 1 1 Cable cpl. (344492320) 10288 RON
53 1 1 Rating plate (338028910) 446 RON
54 1 1 Gas spring (342021490) 26730 RON
55 1 1 Table cpl. (316024360) 197187 RON
56 1 1 Plain hexagon nut (141131760) 955 RON
1001 1 1 338502330 - Indisponibil
