Top » Piese de schimb » PIESE METABO » 0230050015 11

500/10/60 D - 0230050015 11 - 3 / 400V/50Hz
[0230050015 11]
500/10/60 D - 0230050015 11 - 3 / 400V/50Hz
Click pentru a mari
Imagini suplimentare
500/10/60 D - 0230050015 11 - 3 / 400V/50Hz
Click pentru a mari
500/10/60 D - 0230050015 11 - 3 / 400V/50Hz
Click pentru a mari

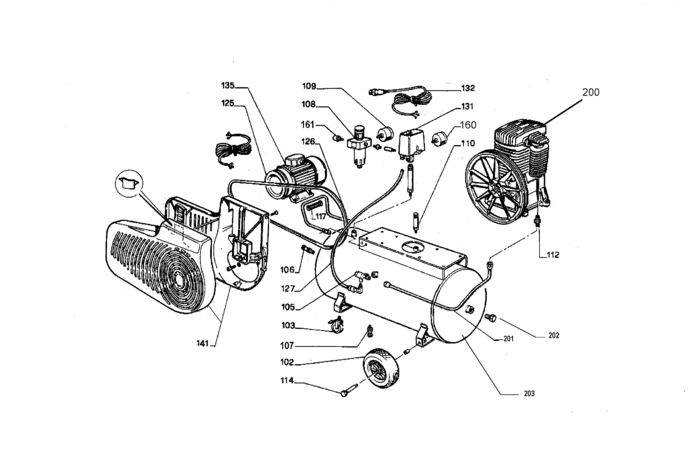

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
102 1 1 WHEEL, PNEUMATIC TYRE RD 200 / NABE 20 E (87270182547) 33553 RON
103 1 1 SWIVEL PLATE CASTER (87271650277) 2848 RON
105 1 1 CHECK VALVE 3/4"X1/2" ET (87831182592) 18341 RON
106 1 1 7801009071 - Indisponibil
107 1 1 DRAIN VALVE R 1/4" GRO? /ET (87830009595) 7157 RON
108 1 1 FILTER PRESSURE REGULATOR 0-8 BAR ET (87820182612) 83437 RON
109 1 1 PRESSURE GAUGE RD 40 1/8" 0/12 ET (87823182621) 11519 RON
110 1 1 SAFETY VALVE R 3/8" 11 BAR ET (87833182638) 33553 RON
112 1 1 REDUCER NIPPLE 1"X1/2" MIT KONUS ET (87808182658) 15993 RON
114 1 1 KEY PIN RD 20X75 ET (81315182669) 19236 RON
117 1 1 HANDLE BAR SLEEVE RD 20 ET (87008679490) 13756 RON
125 1 1 V-BELT PULLEY 130X1 A=BOHRUNG 24 (87240182682) 26730 RON
126 1 1 V-BELT 13X1372 LI (87230072269) 7157 RON
127 1 1 7853185960 - Indisponibil
131 1 1 AUTOM. PRESSURE CONTROL SWITCH MDR3/11 E (88101182755) 88582 RON
132 1 1 CABLE, RUBBER JACKET,WITH PLUG A=CEE16A (88402127911) 18341 RON
135 1 1 ELECTRIC MOTOR 3,00 DN 400/3/50 B3 /M.K (88013663891) 270112 RON
141 1 1 PROTECTIVE GRATING 2-TEILIG /ET (81311661260) 4442 RON
160 1 1 PRESSURE GAUGE RD 50 1/4"0/20 10B ET (87823182869) 15993 RON
161 1 1 7801009055 - Indisponibil
200 1 1 1313657317 - Indisponibil
201 1 1 1317182887 - Indisponibil
202 1 1 6109079322 - Indisponibil
203 1 1 1314185583 - Indisponibil
1003 1 1 CYLINDER HEAD ET (81319738076) 64311 RON
1006 1 1 1319155933 - Indisponibil
1008 1 2 CONNECTING ROD ET (81319657378) 2848 RON
1012 1 2 PISTON RD 60 ET (81319163766) 2848 RON
1014 1 2 GUDGEON PIN RD 15X50 ET (81315163885) 11519 RON
1015 1 4 6401627241 - Indisponibil
1016 1 2 PISTON RING RD 60X2 ET (81319164100) 13756 RON
1017 1 2 PISTON RING RD 60X2 ET (81319164118) 15993 RON
1018 1 2 OIL WIPING RING RD 60X3 ET (81319164126) 18341 RON
1023 1 1 7825156113 - Indisponibil
1024 1 1 AFTERCOOLER ET (81313611562) 33553 RON
1026 1 1 BEARING CAP, PINION END ET (81319157049) 7157 RON
1030 1 2 DEEP GROOVE BALL BEARING 25X52X15 6205 (87100157076) 18341 RON
1032 1 1 OIL SIGHT GLASS 1/2" ET (81319155860) 488 RON
1033 1 1 OIL WIPING SCREW 3/8" ET (81319655111) 955 RON
1034 1 1 ROTARY SHAFT SEAL ET (87635157067) 5479 RON
1035 1 1 Cap screw (86121000839) Indisponibil Indisponibil
1036 1 1 WASHER 8,5X30X5 ET (81315166400) 3018 RON
1060 1 1 PACKING, HOUSING LID ET (81319657386) 13756 RON
1061 1 1 1319657394 - Indisponibil
1062 1 1 1319655146 - Indisponibil
1064 1 1 1319655138 - Indisponibil
1065 1 1 1319157022 - Indisponibil
1066 1 1 PACKING, AFTERCOOLER ET (81319151431) 5479 RON
