Top » Piese de schimb » PIESE METABO » 06301380

G 500 - 06301380 - GB 230V
[06301380]
G 500 - 06301380 - GB 230V
Click pentru a mari
Imagini suplimentare
G 500 - 06301380 - GB 230V
Click pentru a mari

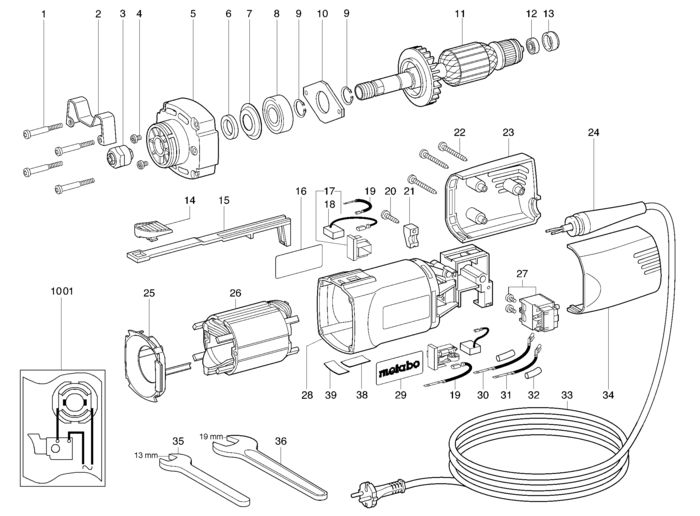

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 4 Tight-fit screw (341701490) 446 RON
2 1 1 Foot (339034890) 190 RON
3 1 1 631945000 - Indisponibil
4 1 2 Fillister head screw (141120190) 446 RON
5 1 1 Spindle head (315410040) 19236 RON
6 1 1 Felt ring (143191190) 446 RON
7 1 1 Sealing washer (339003480) 781 RON
8 1 1 Ball bearing, 15x35x11 (143114650) 5479 RON
9 1 2 Retaining ring (141180090) 781 RON
10 1 1 Clamping washer (339031530) 1564 RON
11 1 1 Armature cpl. 230 V (310008320) 54357 RON
12 1 1 Ball bearing, 6X 19X 6 (143114750) Indisponibil Indisponibil
13 1 1 Rubber bushing (344096360) 446 RON
14 1 1 Switch slide (343394180) 669 RON
15 1 1 Switch rod (343373640) 781 RON
16 1 1 Rating plate (338042520) 446 RON
17 1 2 Brush holder cpl. (316035500) 3018 RON
18 1 1 Carbon brush (316035510) 5479 RON
19 1 2 Cable strand (344493960) 781 RON
20 1 1 Self-tap. fill. h. screw (141116020) 781 RON
21 1 1 Cable clip (343362490) 781 RON
22 1 3 Self-tap. fill. h. screw (141116990) 781 RON
23 1 1 Housing with cover (343374410) 2124 RON
24 1 1 Cable sleeve (344101140) 105 RON
25 1 1 Baffle (339150930) 781 RON
26 1 1 Field coil 230 V elec (311010060) 19236 RON
27 1 1 Switch (343406730) 7157 RON
28 1 1 Motor housing (315012680) 488 RON
29 1 1 M-Label,08 52x22 (338122160) 446 RON
30 1 1 Strand (344493950) 446 RON
31 1 1 Strand (344493970) 446 RON
32 1 2 Insulading hose (339040760) 446 RON
33 1 1 Cable with plug (344493740) 955 RON
34 1 1 Housing with cover (343374420) 2124 RON
35 1 1 Open-end spanner (344162400) 2124 RON
36 1 1 Open-end spanner (344161300) 2459 RON
38 1 1 399999990 - Indisponibil
39 1 1 Label to read instructions (338117240) 446 RON
1001 1 1 338501980 - Indisponibil
