LP 452/11/90 DF - 0010045282 10 - 3 / 400V/50Hz
[0010045282 10]
LP 452/11/90 DF - 0010045282 10 - 3 / 400V/50Hz
Click pentru a mari
Imagini suplimentare
LP 452/11/90 DF - 0010045282 10 - 3 / 400V/50Hz
Click pentru a mari
LP 452/11/90 DF - 0010045282 10 - 3 / 400V/50Hz
Click pentru a mari

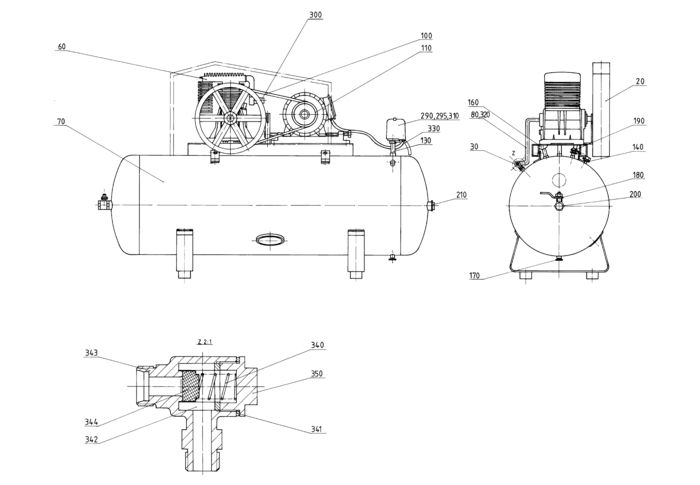

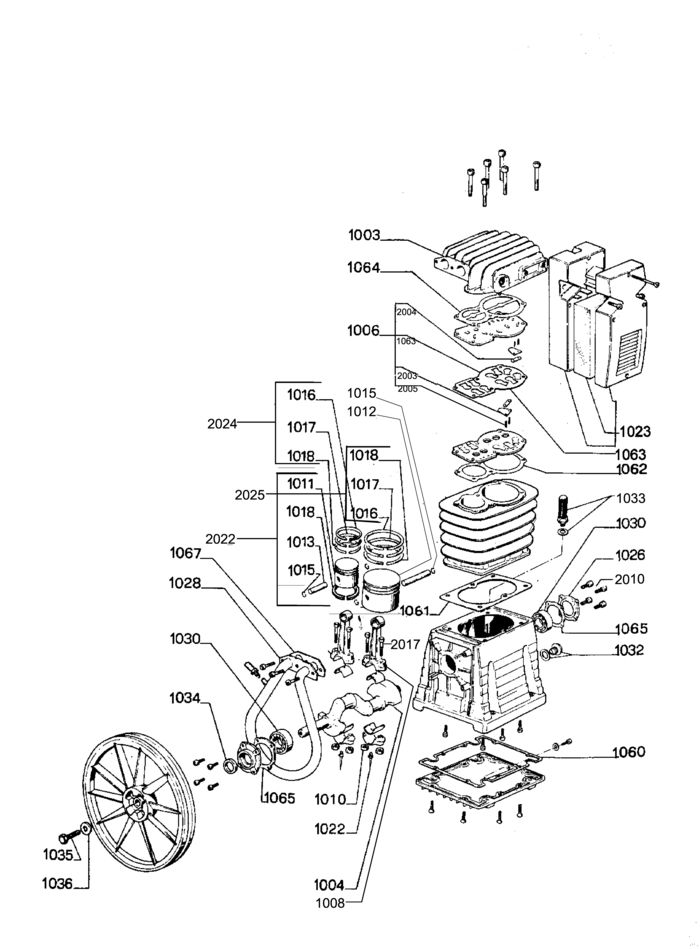

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
20 1 1 1001013560 - Indisponibil
30 1 1 CHECK VALVE, ELBOW TYPE R 1/2"X RD15 ET (81001014290) 21361 RON
60 1 1 1313029960 - Indisponibil
70 1 1 1314080390 - Indisponibil
80 1 1 COPPER PIPE RD 15X1 NAHTLOS GEZOGEN (83257033839) 8275 RON
100 1 1 V-BELT 13X1350 LI (87230052063) 15993 RON
110 1 1 7240064671 - Indisponibil
130 1 1 PIPE NIPPLE 1/2"X80 VERZINKT ENTFETTET (87812025613) 190 RON
140 1 1 TEST FLANGE R 3/8" (87818026352) 7157 RON
160 1 1 7823010219 - Indisponibil
170 1 1 DRAIN VALVE R 1/4" GRO? /ET (87830009595) 7157 RON
180 1 1 BALL VALVE 3/4" X 3/4" (87830026279) 10288 RON
190 1 1 SAFETY VALVE R 1/4" 11 BAR M.RED.1/4"X1/ (81001615137) 21361 RON
200 1 1 REDUCER NIPPLE 2"X3/4" NR.241 / VERZ. (87871043030) 7157 RON
210 1 1 THREADED PLUG 2" NR.290 / VERZ. (87871056409) 5479 RON
290 1 1 88101111602 - Indisponibil
295 1 1 MOTOR PROTECTION RELAY 4-7 A (88103025932) 34448 RON
310 1 1 RELIEF VALVE EV 5 MECHANISCH (87834025994) 18341 RON
320 1 1 COPPER PIPE RD 6X1 NAHTLOS GEZOGEN (83257033847) 4249 RON
330 1 1 COPPER PIPE RD 6X1X70 ET (81317054374) 781 RON
340 1 1 PRESSURE SPRING RD 1XDM 15X40 ROSTFREI (87051052638) 446 RON
341 1 1 7631057092 - Indisponibil
342 1 1 CAGE RD 27,5X26 (81311052310) 105 RON
343 1 1 VALVE BODY R 1/2" AG X RD 15 (81310051485) 955 RON
344 1 1 1311052620 - Indisponibil
350 1 1 THREADED PLUG C M30X1,5 (86109055202) 8275 RON
400 1 1 1001002402 - Indisponibil
1003 1 1 CYLINDER HEAD ET (81319156123) 83437 RON
1004 1 1 CRANKSHAFT ET (81315164709) 220451 RON
1006 1 1 VALVE ASSEMBLY ET (81319156131) 117663 RON
1008 1 1 CONNECTING ROD B4900B /ET (81319679142) 41718 RON
1010 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
1011 1 1 PISTON, HP RD 50 ET (81319163790) 64311 RON
1012 1 1 PISTON, LP RD 95 ET (81319163804) 108379 RON
1013 1 1 GUDGEON PIN RD 18X42 ET (81315163915) 15993 RON
1015 1 1 CIRCLIP FOR BORES 18X1 ET (86401627209) 446 RON
1016 1 1 1319164193 - Indisponibil
1017 1 1 1319164207 - Indisponibil
1018 1 1 1319164215 - Indisponibil
1022 1 1 OIL SPLASH NEEDLE ET (81319164789) 190 RON
1023 1 1 AIR FILTER ET (87825156180) 13756 RON
1026 1 1 BEARING CAP, PINION END ET (81319157049) 7157 RON
1028 1 1 1319639310 - Indisponibil
1030 1 1 DEEP GROOVE BALL BEARING 25X52X15 6205 (87100157076) 18341 RON
1032 1 1 OIL SIGHT GLASS 1/2" ET (81319155860) 488 RON
1033 1 1 CRANKCASE BREATHER 3/8" ET (81319155895) 15993 RON
1034 1 1 ROTARY SHAFT SEAL ET (87635157067) 5479 RON
1035 1 1 Cap screw (86121000839) Indisponibil Indisponibil
1036 1 1 WASHER 8,5X30X5 ET (81315166400) 3018 RON
1060 1 1 CRANKCASE PACKING ET (81319164444) 13756 RON
1061 1 1 CYLINDER FOOT GASKET ET (81319161992) 7157 RON
1062 1 1 CYLINDER GASKET ET (81319156166) 955 RON
1063 1 1 PACKING, VALVE PLATE ET (81319156140) 18341 RON
1064 1 1 CYLINDER HEAD GASKET ET (81319156174) 13756 RON
1065 1 1 1319157022 - Indisponibil
1067 1 1 PACKING, INTERMEDIATE COOLER ET (81319157138) 488 RON
2003 1 1 FLAP VALVE ET (81319155810) 3018 RON
2004 1 1 FRICTION SPRING ET (87052161805) 781 RON
2005 1 1 PARALLEL PIN 2,5X7 ET (86500161815) 446 RON
2010 1 1 HEXAGON SOCKET HEAD CAP SCREW M 8X20 VER (86121000804) 446 RON
2017 1 1 6143166595 - Indisponibil
2022 1 1 PISTON ASSEMBLY, HP ET (81319166781) 64311 RON
2024 1 1 1319162042 - Indisponibil
2025 1 1 PISTON RING SET, LP RD 95 ET (81319162034) 64311 RON
7000 1 1 AIR FILTER ELEMENT ET (87825167026) 955 RON
