TB E 4512 - 04512000 - EU 230V
[04512000]
TB E 4512 - 04512000 - EU 230V
Click pentru a mari
Imagini suplimentare
TB E 4512 - 04512000 - EU 230V
Click pentru a mari

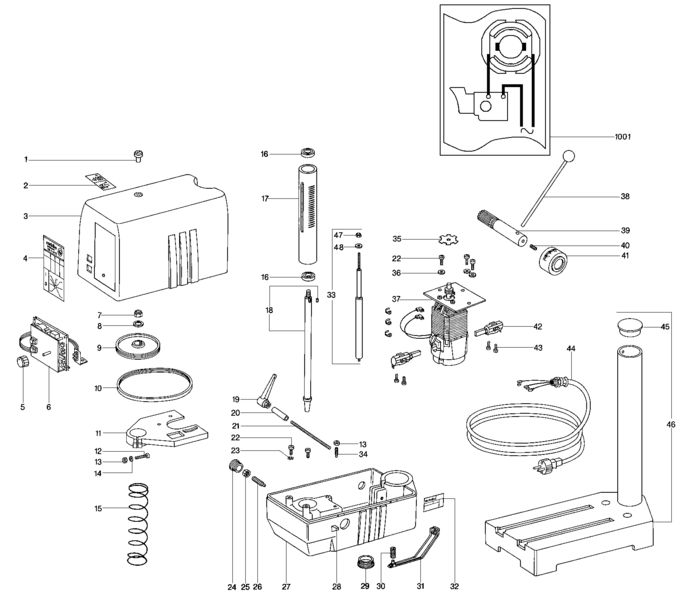

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Threaded cap (341004660) 105 RON
2 1 1 Pictograph (338109080) 1340 RON
3 1 1 Wheel guard (343369460) 34448 RON
4 1 1 Indication label (338109070) 3018 RON
5 1 1 Control knob (343369540) 5479 RON
6 1 1 Electronic unit (343075600) 78180 RON
7 1 1 Hexagonal lock nut (141130890) 781 RON
8 1 1 141153680 - Indisponibil
9 1 1 Belt pulley (341200870) 18341 RON
10 1 1 V-belt (344260220) 5926 RON
11 1 1 Motor holder (315413930) 955 RON
12 1 1 Cap screw (141113880) 446 RON
13 1 1 Hexagonal nut (141130100) 446 RON
14 1 1 Washer Washer cod vechi 86300016365 (141151940) 446 RON
15 1 1 Pressure spring (342002190) 7157 RON
16 1 1 Ball bearing, 15x35x11 (143111520) 7157 RON
17 1 1 Spindle sleeve (341145160) 68673 RON
18 1 1 Spindle B16 (341603340) 3698 RON
19 1 1 Clamping lever (341111940) 7157 RON
20 1 1 Spacing tube (341054280) 190 RON
21 1 1 Threaded rod (341514410) 190 RON
22 1 5 Cap screw (141113840) 781 RON
23 1 1 Serrated lock washer (141150430) 446 RON
24 1 1 Cap (343369520) 781 RON
25 1 1 Hexagonal nut (141131010) 446 RON
26 1 1 Grub screw (341514420) 2459 RON
27 1 1 Chuck (315413940) 171574 RON
28 1 1 Stop (339126930) 2124 RON
29 1 1 Cap (343369530) 1340 RON
30 1 1 Pressure spring (342002210) 190 RON
31 1 1 Eccentric lever (341145150) 5926 RON
32 1 1 Rating plate (338028890) 446 RON
33 1 1 Threaded rod cpl. (316024180) 15993 RON
34 1 1 Grub screw (141115180) 781 RON
35 1 1 Slotted washer (341004680) 781 RON
36 1 3 Washer (141150130) 446 RON
37 1 1 Motor compl. (317001840) 108379 RON
38 1 1 Drill lever compl. (341112280) 7157 RON
39 1 1 Intermediate gear (340003030) 41718 RON
40 1 1 Grub screw (141115040) 781 RON
41 1 1 Stop ring compl. (316024290) 34448 RON
42 1 1 Carbon brush compl. (316033790) 7157 RON
43 1 2 Fillister head screw (141113200) 446 RON
44 1 1 Cable cpl. (344492260) 19236 RON
45 1 1 Cover (343369490) 105 RON
46 1 1 Table with column (316024170) 171574 RON
47 1 1 Hexagonal lock nut (141130650) 781 RON
48 1 1 Washer (141155100) 2459 RON
1001 1 1 338501660 - Indisponibil
