SR 4350 - 04350480 - JP 100V
[04350480]
SR 4350 - 04350480 - JP 100V
Click pentru a mari
Imagini suplimentare
SR 4350 - 04350480 - JP 100V
Click pentru a mari

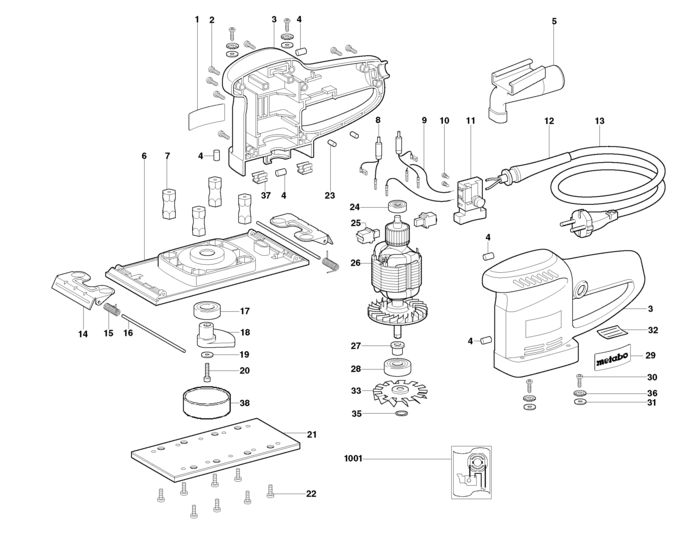

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Rating plate (338040850) 446 RON
2 1 7 Self-tap. fill. h. screw (141116020) 781 RON
3 1 1 Housing with cover (343373370) 7157 RON
4 1 5 Rubber plug (344091420) 446 RON
5 1 1 399999990 - Indisponibil
6 1 1 Oscillating plate (315414790) 955 RON
7 1 4 Swivel pin (344094850) 190 RON
8 1 2 344493260 - Indisponibil
9 1 1 Cable set (344493480) 781 RON
10 1 2 Fillister head screw (141116970) 781 RON
11 1 1 Pressure switch black (343408920) 3018 RON
12 1 1 Cable sleeve (344101080) 669 RON
13 1 1 Cable with UL-CSA-plug (344492750) 7157 RON
14 1 2 Pressure lever cpl. (339129070) 781 RON
15 1 2 Torsion spring (342020930) 446 RON
16 1 2 Rivet (341520060) 781 RON
17 1 1 143114710 - Indisponibil
18 1 1 Counterweight (315414810) 3689 RON
19 1 1 Washer (339005890) 446 RON
20 1 1 Cap screw (141122110) 446 RON
21 1 1 Sanding base-plate (339160560) 7157 RON
22 1 8 Fillister head screw (141113040) 446 RON
23 1 2 Rubber plug (344092220) 446 RON
24 1 1 Ball bearing, 7x22x7 (143110030) 488 RON
25 1 1 Brush holder cpl. (316033870) 5479 RON
26 1 1 317002410 - Indisponibil
27 1 1 Bush (341004670) 781 RON
28 1 1 Ball bearing, 12x32x10 (143113960) 4249 RON
29 1 1 M-Label,08 52x22 (338122160) 446 RON
30 1 4 Fillister head screw (141113220) 446 RON
31 1 4 Washer (141151860) Indisponibil Indisponibil
32 1 1 399999990 - Indisponibil
33 1 1 Fan (330001480) 781 RON
35 1 1 O-ring (143194630) 105 RON
36 1 4 Serrated lock washer (141150410) 781 RON
37 1 2 clamp (339006540) 105 RON
38 1 1 Cover (339160610) 1340 RON
1001 1 1 338501840 - Indisponibil
