Top » Piese de schimb » PIESE METABO » 0230040125 10

LP 401/10/60 D - 0230040125 10 - 3 / 400V/50Hz
[0230040125 10]
LP 401/10/60 D - 0230040125 10 - 3 / 400V/50Hz
Click pentru a mari
Imagini suplimentare
LP 401/10/60 D - 0230040125 10 - 3 / 400V/50Hz
Click pentru a mari
LP 401/10/60 D - 0230040125 10 - 3 / 400V/50Hz
Click pentru a mari

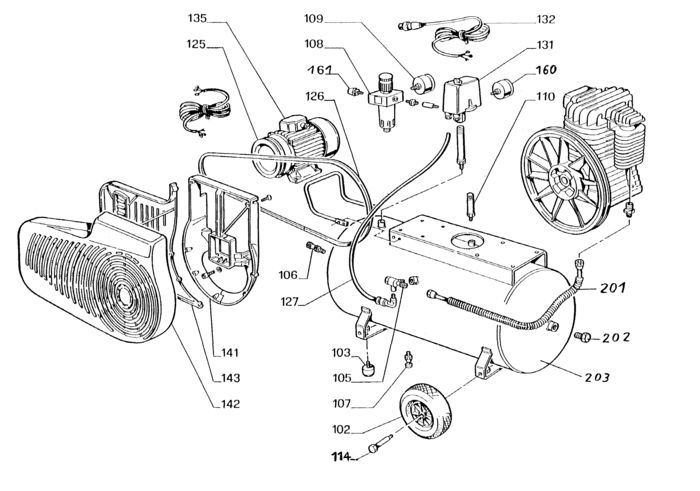

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
102 1 1 WHEEL, PNEUMATIC TYRE RD 200 / NABE 20 E (87270182547) 33553 RON
103 1 1 7057182568 - Indisponibil
105 1 1 CHECK VALVE 3/4"X1/2" ET (87831182592) 18341 RON
106 1 1 7801009071 - Indisponibil
107 1 1 DRAIN VALVE R 1/4" GRO? /ET (87830009595) 7157 RON
108 1 1 FILTER PRESSURE REGULATOR 0-8 BAR ET (87820182612) 83437 RON
109 1 1 PRESSURE GAUGE RD 40 1/8" 0/12 ET (87823182621) 11519 RON
110 1 1 SAFETY VALVE R 3/8" 11 BAR ET (87833182638) 33553 RON
114 1 1 KEY PIN RD 20X75 ET (81315182669) 19236 RON
125 1 1 V-BELT PULLEY 130X1 A=BOHRUNG 24 (87240182682) 26730 RON
126 1 1 V-BELT 13X1372 LI (87230072269) 7157 RON
127 1 1 PLASTIC HOSE BLACK RD 6X1X1000 SCHWARZ (87851190842) 2124 RON
131 1 1 AUTOM. PRESSURE CONTROL SWITCH MDR 3/11- (88101182747) 88582 RON
132 1 1 CABLE, RUBBER JACKET,WITH PLUG A=CEE16A (88402127911) 18341 RON
135 1 1 ELECTRIC MOTOR 400/3/50 B3 ET (88013182818) 295725 RON
141 1 1 1311182834 - Indisponibil
142 1 1 1311182842 - Indisponibil
143 1 1 PROTECTIVE GRATING ET (81311182850) 13756 RON
160 1 1 PRESSURE GAUGE RD 50 1/4"0/20 10B ET (87823182869) 15993 RON
161 1 1 7801009055 - Indisponibil
201 1 1 1317182887 - Indisponibil
202 1 1 6109079322 - Indisponibil
203 1 1 1314185583 - Indisponibil
1003 1 1 1319155992 - Indisponibil
1004 1 1 CRANKSHAFT ET (81315164822) 197187 RON
1005 1 1 1310164557 - Indisponibil
1006 1 1 316050460 - Indisponibil
1008 1 1 1319161925 - Indisponibil
1012 1 1 PISTON RD 65 ET (81319163774) 30980 RON
1014 1 1 GUDGEON PIN RD 15X55 ET (81315163893) 11519 RON
1015 1 1 6401627241 - Indisponibil
1016 1 1 PISTON RING RD 65X2 ET (81319164134) 18341 RON
1017 1 1 1319164142 - Indisponibil
1018 1 1 OIL WIPING RING RD 65X4 ET (81319164150) 18341 RON
1022 1 1 OIL SPLASH NEEDLE ET (81319161933) 1564 RON
1023 1 1 AIR FILTER (87825115107) 18341 RON
1024 1 1 FITTING FLANGE ET (81310157127) 18341 RON
1026 1 1 BEARING CAP, PINION END ET (81319157049) 7157 RON
1029 1 1 FLYWHEEL RD 330 ET (81319155836) 93951 RON
1030 1 1 DEEP GROOVE BALL BEARING 25X52X15 6205 (87100157076) 18341 RON
1032 1 1 OIL SIGHT GLASS 1/2" ET (81319155860) 488 RON
1033 1 1 CRANKCASE BREATHER 3/8" ET (81319155887) 955 RON
1034 1 1 ROTARY SHAFT SEAL ET (87635157067) 5479 RON
1035 1 1 Cap screw (86121000839) Indisponibil Indisponibil
1036 1 1 WASHER 8,5X30X5 ET (81315166400) 3018 RON
1060 1 1 CRANKCASE PACKING ET (81319164428) 15993 RON
1061 1 1 CYLINDER FOOT GASKET ET (81319161976) 5479 RON
1062 1 1 CYLINDER GASKET ET (81319156034) 10288 RON
1063 1 1 PACKING, VALVE PLATE ET (81319156018) 15993 RON
1064 1 1 1319156042 - Indisponibil
1065 1 1 1319157022 - Indisponibil
1066 1 1 PACKING, PRESSURE LINE ET (81319161763) 5479 RON
2003 1 1 FLAP VALVE ET (81319155810) 3018 RON
2004 1 1 FRICTION SPRING ET (87052161805) 781 RON
2005 1 1 PARALLEL PIN 2,5X7 ET (86500161815) 446 RON
2006 1 1 AIR FILTER ELEMENT ET (87825167026) 955 RON
2009 1 1 HEXAGON SOCKET HEAD CAP SCREW (86121000731) 446 RON
2010 1 1 HEXAGON SOCKET HEAD CAP SCREW M 8X20 VER (86121000804) 446 RON
2011 1 1 HEXAGON SOCKET HEAD CAP SCREW M 8X16 VER (86121000790) 446 RON
2012 1 1 HEXAGON SOCKET HEAD CAP SCREW M 8X45 VER (86121166605) 446 RON
2013 1 1 HEXAGON SOCKET HEAD CAP SCREW M 8X25 VER (86121000820) 446 RON
2015 1 1 PACKING RING RD 8,4 ET (87631166576) 781 RON
2016 1 1 1311166561 - Indisponibil
2020 1 1 CONNECTING ROD ASSEMBLY ET (81319166382) 24046 RON
2021 1 1 PISTON SET WITH RINGS ET (81319166439) 78180 RON
2023 1 1 1319166358 - Indisponibil
7010 1 1 GASKET KIT ET (81319156026) 46975 RON
