Top » Piese de schimb » PIESE METABO » 00405180

SX E 400 - 00405180 - CH 230V
[00405180]
SX E 400 - 00405180 - CH 230V
Click pentru a mari
Imagini suplimentare
SX E 400 - 00405180 - CH 230V
Click pentru a mari

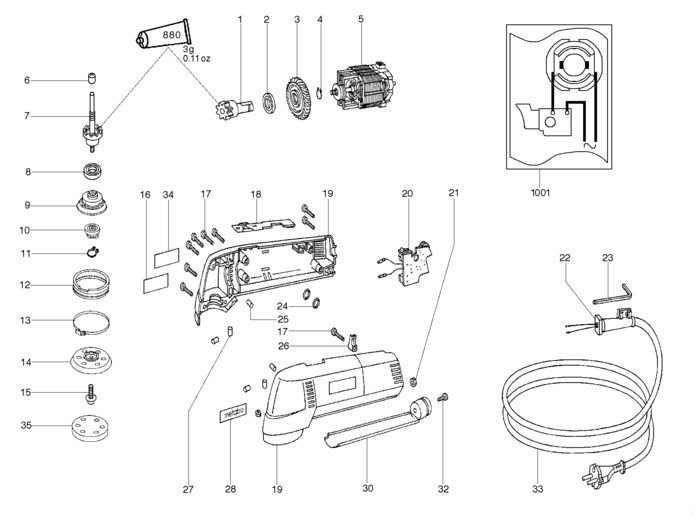

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Intermediate gear (341055460) 7157 RON
2 1 1 Ball bearing, 10x26x8 (143112150) 5926 RON
3 1 1 Fan (330000830) 1564 RON
4 1 1 Retaining ring (141180040) 446 RON
5 1 1 Motor 230V compl. (317002360) 26730 RON
6 1 1 Needle bushing (143112240) 1564 RON
7 1 1 Coated shaft (341055470) 7157 RON
8 1 1 Ball bearing, 15x32x9 (143112030) 8275 RON
9 1 1 Oscillating plate (315414600) 13756 RON
10 1 1 Carrier cpl. (316028090) 8275 RON
11 1 1 Ring (141180540) 781 RON
12 1 1 Brake ring (344095180) 4249 RON
13 1 1 Clamping band (339006170) 4249 RON
14 1 1 Backing pad (339160460) 11519 RON
15 1 1 Screw (341702680) 446 RON
16 1 1 Rating plate (338035580) 446 RON
17 1 9 Self-tap. fill. h. screw (141116020) 781 RON
18 1 1 Switch slide (343369150) 781 RON
19 1 1 Housing with cover (343369020) 5926 RON
20 1 1 Electronic unit,230V/50Hz (343079760) 11519 RON
21 1 1 Hexagonal nut (141130100) 446 RON
22 1 1 Cable sleeve (344100210) 105 RON
23 1 1 Hexagonal key (344161530) 781 RON
24 1 2 O-ring (143192430) Indisponibil Indisponibil
25 1 2 Rubber plug (344092220) 446 RON
26 1 1 Cable clip (343362490) 781 RON
27 1 4 Rubber plug (344091420) 446 RON
28 1 1 Metabo label (338122410) 446 RON
30 1 1 Nozzle (343373440) 1340 RON
32 1 1 Cap screw (141122300) 446 RON
33 1 1 Cable with plug (344488700) 4249 RON
34 1 1 399999990 - Indisponibil
35 1 1 Adhesive washer (344204790) 3689 RON
880 1 1 Grease 50Gr 1,8oz (344130930) 13756 RON
1001 1 1 338501100 - Indisponibil
