Top » Piese de schimb » PIESE METABO » 0021004006 10

SG 400 - 0021004006 10 - EU 230V
[0021004006 10]
SG 400 - 0021004006 10 - EU 230V
Click pentru a mari
Imagini suplimentare
SG 400 - 0021004006 10 - EU 230V
Click pentru a mari
SG 400 - 0021004006 10 - EU 230V
Click pentru a mari

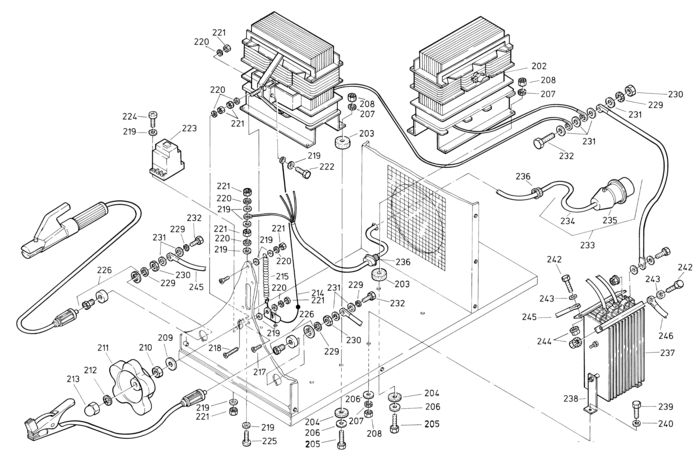

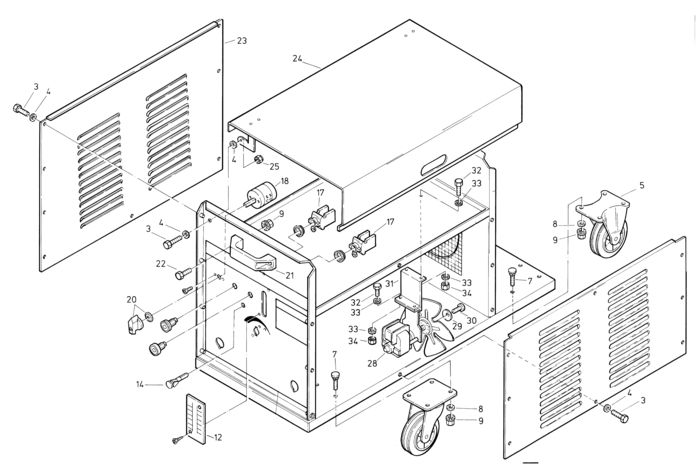

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
3 1 1 HEXAGON HEAD SCREW M 5X12 VERZ. (86103001100) 446 RON
4 1 1 Washer (86300016357) 446 RON
5 1 1 RIGID PLATE CASTER RD 200/50 (87271080292) 15993 RON
7 1 1 CUP SQUARE NECK SCREW M 8X16 VERZ. (86110000632) 446 RON
8 1 1 Washer (86300016322) Indisponibil Indisponibil
9 1 1 Flange nut (6209110995) 446 RON
12 1 1 GLASS COVER 130X60X3 (81321022266) 3018 RON
14 1 1 CONTROL LIGHT 380 V GELB (88601121000) 4249 RON
17 1 1 CONTACT BLOCK BK 11 (88116041350) 18341 RON
18 1 1 ROTARY SWITCH A-256/3.01.000 (88112048155) 4442 RON
20 1 1 SWITCH KNOB G 23 SCHWARZ (88190014909) 1340 RON
21 1 1 1321115663 - Indisponibil
22 1 1 Hex head screw (86103001178) Indisponibil Indisponibil
24 1 1 1002003240 - Indisponibil
25 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002283) 446 RON
28 1 1 TURBO FAN 1X230 V 50 HZ ET (88041065703) 30980 RON
29 1 1 MEDIUM WASHER (86300016330) 446 RON
30 1 1 Fillister head screw (86123002022) 446 RON
31 1 1 1322081355 - Indisponibil
32 1 1 Hex head screw (86103015675) 446 RON
33 1 1 Serrated lock washer (86304084047) 446 RON
34 1 1 Hex nut (86200002219) 446 RON
202 1 1 THERMOSTAT 140 GRAD 402/6025 (88102022085) 8275 RON
203 1 1 1321006643 - Indisponibil
204 1 1 INSULATING WASHER (81321006635) 446 RON
205 1 1 HEXAGON HEAD SCREW (86103001143) 446 RON
206 1 1 Washer (86305002087) 446 RON
207 1 1 Serrated lock washer (86304084047) 446 RON
208 1 1 Hex nut (86200002219) 446 RON
209 1 1 MEDIUM WASHER (86300016349) 446 RON
210 1 1 HEXAGON NUT M 10 VERZ. (86200002251) 446 RON
211 1 1 HANDWHEEL RD 100XM 10 STAHLGEW.BUCHSE M (87003016930) 488 RON
212 1 1 SERRATED LOCK WASHER A 10,5 VERZ. (86304084055) 446 RON
213 1 1 CAP NUT M 10 VERZ. (86201002140) 446 RON
214 1 1 WELDING CURRENT INDICATOR SK 260 (81002006819) 8275 RON
215 1 1 TENSION SPRING RD 0,6X5,5X65 (87051005826) 781 RON
218 1 1 CROSS RECESSED FLAT HEAD SCREW M 4X25 VE (86131074008) 446 RON
219 1 1 MEDIUM WASHER (86300016330) 446 RON
220 1 1 Serrated lock washer (86304084020) 446 RON
221 1 1 HEXAGON NUT (86200002197) 446 RON
222 1 1 6173007246 - Indisponibil
223 1 1 8104041320 - Indisponibil
224 1 1 RAISED CHEESE HEAD SCREW M 4X20 VERZ. (86123084703) 446 RON
225 1 1 6120000126 - Indisponibil
226 1 1 PANEL SOCKET ASSEMBLY 50 MM2 MIT ISOLIER (88215071317) 5926 RON
229 1 1 SERRATED LOCK WASHER A 10,5 VERZ. (86304084055) 446 RON
230 1 1 HEXAGON NUT M 10 VERZ. (86200002251) 446 RON
231 1 1 MEDIUM WASHER A 10,5 (86300034215) 446 RON
232 1 1 HEXAGON HEAD SCREW M 10X35 VERZ. (86103001240) 446 RON
235 1 1 8215014410 - Indisponibil
236 1 1 8240106338 - Indisponibil
237 1 1 RECTIFIER STACK DB125/165-300A6 (88053071733) 127394 RON
238 1 1 1322075258 - Indisponibil
239 1 1 Hex head screw (86103015675) 446 RON
240 1 1 Washer (86305002087) 446 RON
242 1 1 Hex head screw (86103001178) Indisponibil Indisponibil
243 1 1 Washer (86300016322) Indisponibil Indisponibil
244 1 1 Flange nut (6209110995) 446 RON
245 1 1 WELDING CABLE 50 MM2 (88406034233) 8275 RON
7000 1 1 1325117679 - Indisponibil
7003 1 1 SPINDLE RD 20X153,5 (81325022139) 11519 RON
