Top » Piese de schimb » PIESE METABO » 0113033363 11

HC 333 G/2,50 WNB - 0113033363 11 - GB 230V
[0113033363 11]
HC 333 G/2,50 WNB - 0113033363 11 - GB 230V
Click pentru a mari
Imagini suplimentare
HC 333 G/2,50 WNB - 0113033363 11 - GB 230V
Click pentru a mari
HC 333 G/2,50 WNB - 0113033363 11 - GB 230V
Click pentru a mari
HC 333 G/2,50 WNB - 0113033363 11 - GB 230V
Click pentru a mari

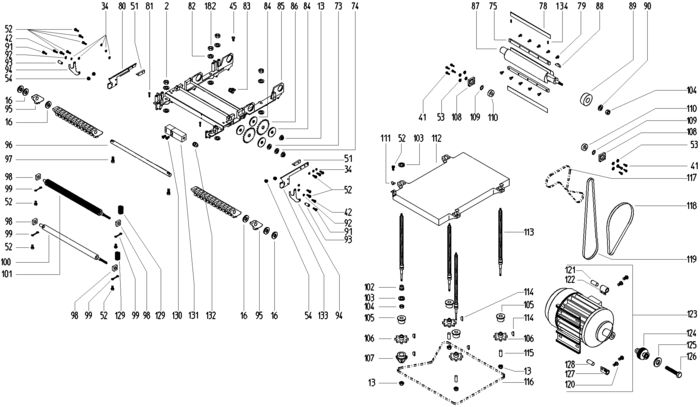

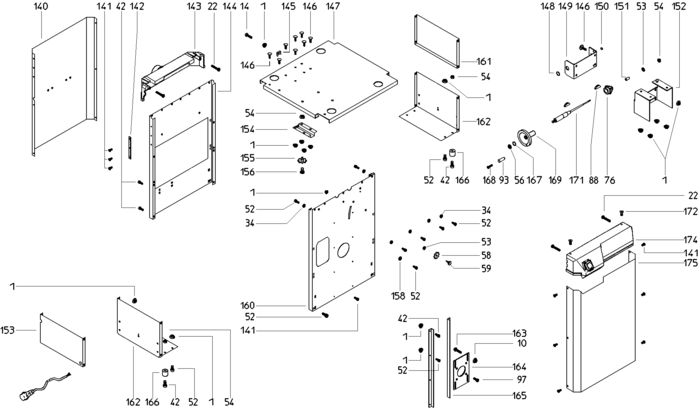

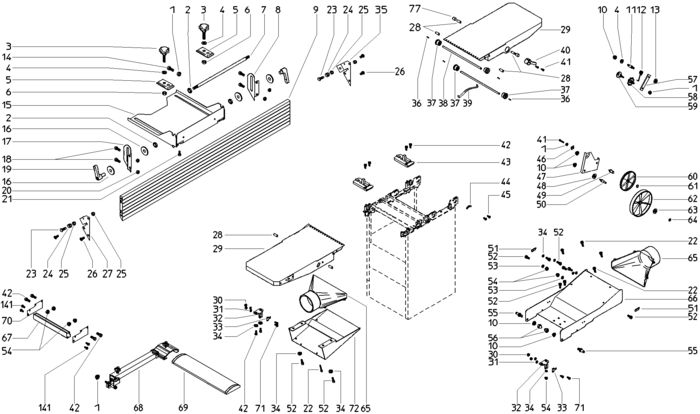

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 50 Flange nut (86209114230) 446 RON
2 1 8 HEXAGON THIN NUT M 12 VERZ. FORM B (86205055744) 446 RON
3 1 2 STARKNOB SCREW M 8X23 (DIN 933) VERZINKT (87001144191) 105 RON
4 1 3 Washer (86305002486) 446 RON
5 1 2 TENSION PLATE BL 2,99X88,0X44,0 (81382651770) 2124 RON
6 1 2 O-RING 5,23X2,62 70 SHORE (87632149640) 446 RON
7 1 1 GUIDE SHAFT RD 12X544,5 (81485651990) 19236 RON
8 1 1 ANGLE BRACKET BL 2,99X79,5X(158) HINTEN (81482218837) 3689 RON
9 1 1 FENCE EXTRUSION 1100 MM (81383651456) 64311 RON
10 1 9 Flange nut (6209110995) 446 RON
11 1 1 BOLT RD 16X40,5 M8 (81485652228) 5479 RON
12 1 1 TORSION SPRING (87051005753) Indisponibil Indisponibil
13 1 7 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
14 1 3 Hex head screw (86103001151) 446 RON
15 1 1 FENCE BASE PLATE BL 3,00X675,0X513,5 (81382651690) 4442 RON
16 1 40 MEDIUM WASHER (86300016349) 446 RON
17 1 1 ANGLE BRACKET BL 2,99X79,5X(158) VORNE (81482218829) 3689 RON
18 1 4 Hex head screw (86103001178) Indisponibil Indisponibil
19 1 2 RATCHET LOCK LEVER, FEMALE (87006028653) Indisponibil Indisponibil
20 1 4 SQUARE NUT (86218005126) 446 RON
21 1 2 GLIDE PIECE (82391202772) 446 RON
22 1 16 86189011421 - Indisponibil
23 1 2 CROSS RECESSED FLAT HEAD SCREW M 5X35 VE (86131014870) 446 RON
24 1 2 TRAVEL STOP RD 20X5,5 (81381211394) 781 RON
25 1 6 HEXAGON NUT (86200002200) 446 RON
26 1 4 86172001848 - Indisponibil
27 1 1 1482651719 - Indisponibil
28 1 6 PARALLEL PIN 8 h8X45 (86500009339) 446 RON
29 1 2 JOINTING TABLE 310X602 (81380649914) 171574 RON
30 1 4 HEXAGON NUT, PREV. TORQUE TYPE M 4 VERZ. (86202065412) 446 RON
31 1 4 MEDIUM WASHER (86300016330) 446 RON
32 1 2 SWITCH PLATE BL 2,99X46X55 (81482652570) 3689 RON
33 1 1 SWITCH GERADE (88118651937) 19236 RON
34 1 36 Washer (86305002087) 446 RON
35 1 1 1482651735 - Indisponibil
36 1 4 CLAMPING SLEEVE (86503001711) 446 RON
37 1 4 CAM PLATE RD44X20 (81385652115) 15993 RON
38 1 2 AXLE RD 12X366 (81485652244) 13756 RON
39 1 1 LEAF SPRING 1,5X15X189 (87052651829) 488 RON
40 1 1 SETTING HANDLE (81380649965) 5926 RON
41 1 11 Cap screw (86121000766) 446 RON
42 1 18 Cap screw (86121023081) 446 RON
43 1 2 FENCE GUIDE (81380650092) 3018 RON
44 1 1 SCALE 1,00 0-3 MM (81142651870) 105 RON
45 1 3 86172047473 - Indisponibil
46 1 1 CAGE NUT (86264166657) 446 RON
47 1 1 TRANSMISSION BASE PLATE BL 2,99X126X120 (81482652650) 8275 RON
48 1 1 WASHER B 13 VERZ. (86305002508) 446 RON
49 1 1 AXLE RD 20X45 (81485652287) 5926 RON
50 1 1 AXLE RD 20X75,5 (81485652309) 13756 RON
51 1 4 LOCKING STONE (81380650025) 190 RON
52 1 73 HEXAGON SOCKET HEAD CAP SCREW (86121000731) 446 RON
53 1 12 Washer Washer cod vechi 86300016365 (141151940) 446 RON
54 1 18 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
55 1 2 BOLT (81485208581) 2459 RON
56 1 3 CAP NUT M 8 VERZ. (86201002131) 446 RON
57 1 1 CHAIN TENSIONER FL 20X4X90 (81492020237) 105 RON
58 1 2 CHAIN SPROCKET RD 30,5X6,5 Z=10 T=8 (87246017292) 1564 RON
59 1 2 THREADED BOLT RD 14X20 10h9 RUNDUMBESCHI (81395028584) 105 RON
60 1 1 GEARWHEEL Z=80/M=1,5 Z=15/T=8 (87247017342) Indisponibil Indisponibil
61 1 1 RETAINING RING FOR SHAFTS (86400009935) 446 RON
62 1 1 FLAT BELT PULLEY RDA 160XRDI 16/16,8 MIT (87242653860) 7157 RON
63 1 1 SHIM RING 16X22X1 VERZ. (86306009760) Indisponibil Indisponibil
64 1 1 RETAINING RING FOR SHAFTS 16X1 (86400009900) 446 RON
65 1 2 DUST CHUTE (81381649977) 3689 RON
66 1 1 SAW BLADE GUARD, PRE-ASSEMBLED OBEN (81011652731) 3698 RON
67 1 1 PANEL, TABLE EXTENSION 320 MM (81383655036) 8275 RON
68 1 1 CUTTERBLOCK GUARD 440 MM (81011659558) 108379 RON
69 1 1 1384219973 - Indisponibil
70 1 2 BRACKET BL 2,99X54X134 HC333 (81382654761) 5479 RON
71 1 4 RAISED CHEESE HEAD SCREW M 4X16 VERZ. (86123025200) 446 RON
72 1 1 SAW BLADE GUARD, PRE-ASSEMBLED UNTEN (81011652723) 26730 RON
73 1 1 CUP SPRING 50,0X25,4X2 A50/GR2 (87053636050) 2124 RON
74 1 1 COUPLING DISC RD 28X8,2X4 (81485660735) 2124 RON
75 1 2 CUTTERBLOCK WEDGE 310 MM (81482652030) 21361 RON
76 1 1 CONICAL GEAR WHEEL Z=16 M2,5 45GRAD RDI (81380218565) 2124 RON
77 1 2 SPACER SLEEVE RD 12/9X3,5 (86442084600) 105 RON
78 1 1 0911053179 - Indisponibil
79 1 10 STRAINING SCREW M 6X11 SW10 (81485210365) 781 RON
80 1 1 TABLE SUPPORT BL 2,99X73X230 LINKS (81482652634) 955 RON
81 1 4 Countersunk screw (86132087995) Indisponibil Indisponibil
82 1 8 6306661378 - Indisponibil
83 1 1 CABLE CLIP RD 9,5 BOHRUNG 5,2 (88242656840) 446 RON
84 1 4 COUPLING DISC BL 2,99XRD49,8 (81482652693) 105 RON
85 1 1 CUTTERBLOCK CARRIER (81380649957) 220451 RON
86 1 2 CHAIN SPROCKET Z=28 (87246649990) 105 RON
87 1 1 CUTTERBLOCK 310MM (81385652166) 78180 RON
88 1 3 WOODRUFF KEY (86720008538) 446 RON
89 1 1 POLY-RIB PULLEY 7JX37,5/RDA 37,5X20 (81385652085) 11519 RON
90 1 1 Washer (86300019984) 446 RON
91 1 2 HEXAGON SOCKET HEAD CAP SCREW M 6X50 VER (86121097735) 446 RON
92 1 2 CUP SPRING (87053081619) 446 RON
93 1 3 TURNING TANG (87004017433) 1340 RON
94 1 2 TABLE BOLT BL 2,99X74X98 (81482652588) 3018 RON
95 1 28 GRAP BL 8,00X36X46 (81482652316) 5479 RON
96 1 1 AXLE RD 10X339 (81485652260) 10288 RON
97 1 6 HEXAGON SOCKET HEAD CAP SCREW M 6X16 VER (86122151520) 781 RON
98 1 4 BEARING (81381650002) 781 RON
99 1 4 LOCKING PLATE BL 2,00X14X50 (81482652715) 781 RON
100 1 1 INFEED ROLLER RDA 25X416 GUMMIERT (81385652123) 73930 RON
101 1 1 INFEED ROLLER RDA 25X416 GERILLT (81485652147) 30980 RON
102 1 1 SPACER SLEEVE RD 25/20/16,2X15 (81485655294) 5926 RON
103 1 2 WASHER RDA24XRDI16X3 (81381655268) 1340 RON
104 1 2 HEXAGON THIN NUT (86205088367) 446 RON
105 1 4 SPINDLE BEARING (81381649985) 781 RON
106 1 4 CHAIN SPROCKET RDA 32,4X15 RDI 10 Z=15 T (87246651790) 1564 RON
107 1 1 CONICAL GEAR WHEEL Z=16 M=2,5 45GRAD RDI (81380651803) 2124 RON
108 1 2 BEARING SEAT (81380650017) 7157 RON
109 1 2 O-RING 42,5X2,5 (87632123315) 446 RON
110 1 2 DEEP GROOVE BALL BEARING (87100016995) 488 RON
111 1 1 POINTER BL 2,00X22X25 (81482652642) 1564 RON
112 1 1 THICKNESSER BED 307X550 (81380649930) 127394 RON
113 1 4 THREADED SPINDLE RD16X316 (81485652201) 30980 RON
114 1 5 WOODRUFF KEY (86720008511) 446 RON
115 1 3 SPACER SLEEVE RD 13/10,5X22 VERZ. (86442158493) 781 RON
116 1 1 ROLLER CHAIN 246 GLIEDER 6 MM TEILUNG (87236651899) 24046 RON
117 1 1 ROLLER CHAIN 98 GLIEDER 8 MM TEILUNG (87236651902) 955 RON
118 1 1 POLY-RIB BELT 7 PJ 955 (87233652789) 955 RON
119 1 1 FLAT BELT 670X10X1,0 (87232652777) 488 RON
120 1 4 Fillister head screw w. cross head (86172001791) Indisponibil Indisponibil
121 1 1 8050136176 - Indisponibil
122 1 1 1332412546 - Indisponibil
123 1 1 ELECTRIC MOTOR 2,50 WNB 230V HC333/ADH3 (81010654056) 270112 RON
124 1 1 POLY-RIB PULLEY 7JX84,5/RDA 84,5X70 MOTO (81385652107) 33553 RON
125 1 1 Washer (86300016705) Indisponibil Indisponibil
126 1 1 HEXAGON HEAD SCREW M 12X1,5 LINKS X40 VE (86103085479) 2124 RON
127 1 1 CAPACITOR CLAMP BL 0,88X35X178,5 RDI 44 (81332025186) 1564 RON
128 1 1 CAPACITOR 37,5uF/400V 45,5X93 BOLZEN M 8 (88050011829) 10288 RON
129 1 4 PRESSURE SPRING 2,5X15X32 (87051652740) 781 RON
130 1 2 Fillister head screw (86123084690) 446 RON
131 1 1 8116651921 - Indisponibil
132 1 1 EXTENSION CLAW SCREW PG 9 X PG 11 (88240656320) 1564 RON
133 1 1 TABLE SUPPORT BL 2,99X73X230 RECHTS (81482652618) 955 RON
134 1 4 SET SCREW RESHARPENABLE BLADE M 6 NACH Z (86143043477) 781 RON
140 1 1 OUTER COVERING BL 1,50X579X711 BFS (81382652564) 2848 RON
141 1 26 86172015687 - Indisponibil
142 1 1 SCALE 1,00X20X186 0-180 MM (81142651862) 3689 RON
143 1 1 COVER BOHRFUTTERSEITE (81381650070) 7157 RON
144 1 1 SIDE PANEL BL 2,00X574X825 BFS (81382652416) 33553 RON
145 1 1 CAGE NUT (86264166657) 446 RON
146 1 12 CUP SQUARE NECK SCREW (86110000594) 446 RON
147 1 1 BOTTOM PLATE BL 2,00X438X574 (81382652432) 30980 RON
148 1 1 SLIDE BUSHING RDI 16 (F.3MM BLECH) (87637651440) 1340 RON
149 1 1 BEARING PLATE BL 2,99X66X181 (81482652677) 4249 RON
150 1 1 SLIDE BUSHING RDI 06 (F.3MM BLECH) (87637651433) 781 RON
151 1 1 SPACER SLEEVE (86442059304) 446 RON
152 1 1 BASE PLATE BL 2,99X155X240 (81382652335) 10288 RON
153 1 1 FRONT COVER PLATE BL 0,88X230X380 VORNE (81382652491) 955 RON
154 1 1 CHAIN TENSION PLATE BL 2,00X83X89 (81382652378) 955 RON
155 1 1 CHAIN TENSIONING SPROCKET RD 32,4X95, Z= (87246017365) 1564 RON
156 1 1 THREADED BOLT RD 13X20 8h9 M 6 RUNDUMBE (81395017418) Indisponibil Indisponibil
160 1 1 SIDE PANEL BL 2,00X574X825 AS (81382652394) 33553 RON
161 1 1 FRONT COVER PLATE BL 0,88X230X380 HINTEN (81382652475) 8275 RON
162 1 2 FRONT COVER PLATE BL 2,00X380X409 UNTEN (81382652459) 19236 RON
163 1 4 CUP SQUARE NECK SCREW M 8X16 VERZ. (86110000632) 446 RON
164 1 1 MOTOR PLATE BL 5,00X119X194 (81382652521) 5926 RON
165 1 2 ANGLE STRUT BL 2,99X50X542 (81382652351) 488 RON
166 1 4 RUBBER FOOT RD 30X17,5 80 SHORE (87057208753) 781 RON
167 1 1 CUP SPRING (87053075104) 446 RON
168 1 1 HEXAGON SOCKET HEAD CAP SCREW (86121112564) 446 RON
169 1 1 HANDWHEEL (87003087322) 11519 RON
171 1 1 SHAFT, HEIGHT ADJUSTMENT RD 16X188 (81485652180) 13756 RON
172 1 2 CROSS RECESSED FLAT HEAD SCREW (86131059530) 446 RON
174 1 1 1011662451 - Indisponibil
175 1 1 OUTER COVERING BL 1,50X659X711 AS (81382652548) 33553 RON
182 1 4 LOCKING NUT M12 GANZMETALL (86209675305) 446 RON
7500 1 1 1153661398 - Indisponibil
