Top » Piese de schimb » PIESE METABO » 0103330018 11

UK 333 - 0103330018 11 - CH 230V
[0103330018 11]
UK 333 - 0103330018 11 - CH 230V
Click pentru a mari
Imagini suplimentare
UK 333 - 0103330018 11 - CH 230V
Click pentru a mari
UK 333 - 0103330018 11 - CH 230V
Click pentru a mari
UK 333 - 0103330018 11 - CH 230V
Click pentru a mari
UK 333 - 0103330018 11 - CH 230V
Click pentru a mari

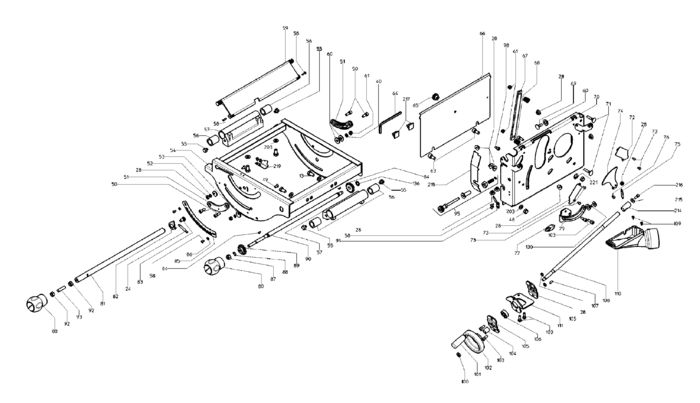

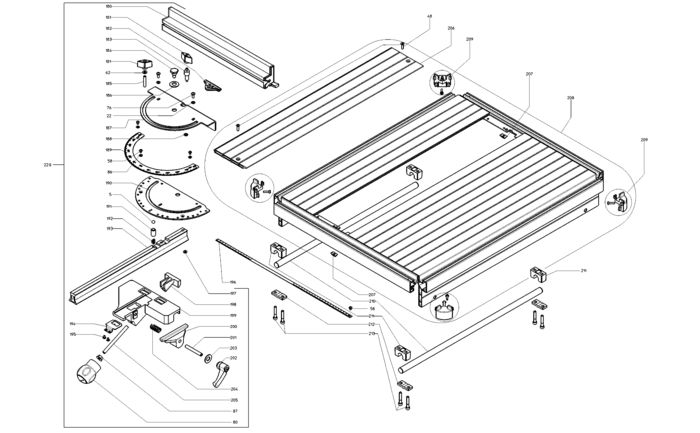

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Cap screw (86121000839) Indisponibil Indisponibil
2 1 1 BLADE COLLAR, OUTER (81482221900) Indisponibil Indisponibil
3 1 1 Blade collar, inner (81485221618) Indisponibil Indisponibil
4 1 1 CIRCLIP FOR BORES (86401701620) 105 RON
5 1 2 STEEL BALL RD 7,938 (87123148635) 446 RON
6 1 2 HEX.SOCKET COUNTERS.HEAD SCREW (86132661454) 446 RON
7 1 1 RIVING KIFE PLATE (81482221595) 781 RON
8 1 1 RIVING KNIFE (81482221587) 8275 RON
9 1 1 SAW BLADE GUARD WITH SUCTION PORT (81010698878) 19236 RON
10 1 1 POSITIONING SCREW (81385701558) 2124 RON
11 1 1 RIVING KNIFE CARRIER UK333 (81380698273) 488 RON
12 1 1 RIVING KNIFE CARRIER (81482701503) 11519 RON
13 1 8 Hex head screw (86103001178) Indisponibil Indisponibil
14 1 4 CUP SPRING (87053075104) 446 RON
15 1 1 FASTENING PLATE (81382701247) 3018 RON
16 1 1 COVER PLATE (81382701280) 488 RON
17 1 1 POLY-RIB BELT (87233680626) 488 RON
18 1 1 TIE BOLT (81385701302) 8275 RON
19 1 4 Fillister head screw w.flange (86143661561) 446 RON
20 1 1 GEARBOX ENCLOSURE UK333 (81380698320) 54357 RON
21 1 1 Spindle lock (81482681839) 1340 RON
22 1 3 Washer (86300016357) 446 RON
23 1 7 86172015687 - Indisponibil
24 1 3 TENSION SPRING (87051074232) 781 RON
25 1 1 RETAINING RING FOR SHAFTS (86400009935) 446 RON
26 1 1 Intermediate shaft (81385701205) 13756 RON
27 1 1 GEARWHEEL RD 30,5 Z=20 UK333 (87247701235) 10288 RON
28 1 14 Flange nut (86209114230) 446 RON
29 1 1 COGGED BELT (87231680580) Indisponibil Indisponibil
30 1 1 COVER PLATE (81382701263) 1340 RON
31 1 1 ELECTRIC MOTOR (81010701631) 171574 RON
32 1 1 LID, TERMINAL BOX UK333 (81381707411) 1340 RON
33 1 1 CARBON BRUSH SET (81010710819) 15993 RON
34 1 1 BUSHING (81485701229) 190 RON
35 1 1 DEEP GROOVE BALL BEARING (87100074090) 3689 RON
36 1 1 SAW BLADE SPINDLE (81385701213) 11519 RON
37 1 1 DEEP GROOVE BALL BEARING (cod vechi 7100083463 ) (143115730) 2459 RON
38 1 1 RETAINING RING FOR SHAFTS (86400701600) 781 RON
39 1 1 HEXAGON NUT (86200002235) Indisponibil Indisponibil
40 1 1 WASHER (86305713714) 669 RON
41 1 2 Cap screw (86121161310) 446 RON
42 1 1 BEARING BOLT (81395200611) 1340 RON
43 1 1 POLY-RIB PULLEY (81385701310) 8275 RON
44 1 1 DEEP GROOVE BALL BEARING (cod vechi 7100083463 ) (143115730) 2459 RON
45 1 1 RETAINING RING FOR SHAFTS (86400009897) 446 RON
46 1 1 DEEP GROOVE BALL BEARING (87100136915) Indisponibil Indisponibil
47 1 1 WASHER (81482680670) 446 RON
48 1 2 HEX.SOCKET COUNTERS.HEAD SCREW (86131714953) 669 RON
49 1 2 Countersunk screw (86132175169) 446 RON
50 1 4 Cap screw (86121023081) 446 RON
51 1 2 SWIVEL SEGMENT (81380221442) 1564 RON
52 1 2 HEXAGON NUT (86200002200) 446 RON
53 1 4 CAM PLATE (81485710066) 1340 RON
54 1 1 MOTORHEAD CARRIAGE (81010700766) 59166 RON
55 1 4 PLUG-IN BUFFER (82391203906) 446 RON
56 1 4 LINEAR BALL BEARING (87121652050) 10288 RON
57 1 2 BEARING BLOCK, RIGHT UK333 (81380698245) 24046 RON
58 1 6 RAISED CHEESE HEAD SCREW (86143639612) 446 RON
59 1 1 SWIVEL PLATE UK333 (81381706318) 190 RON
60 1 3 INSULATING WASHER (81321006635) 446 RON
61 1 3 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
62 1 2 Washer (86305002087) 446 RON
64 1 1 ALLEN HEXAGON KEY (89102689833) 190 RON
65 1 1 Knurled nut (86241125058) 781 RON
66 1 1 COVER, SAW BLADE HOUSING (81382701069) 13756 RON
67 1 1 GUIDE BRACKET (81482701538) 7157 RON
68 1 2 PRESSURE SPRING (87051207240) 446 RON
69 1 1 CUP SQUARE NECK SCREW (86110000594) 446 RON
70 1 1 SAW BLADE HOUSING (81382701085) 2848 RON
71 1 2 Truss head screw (86110076574) 446 RON
72 1 2 COVER PLATE (82382701359) 781 RON
73 1 4 BLIND RIVET, MUSHROOM HEAD (86621010474) 446 RON
74 1 1 END CAP (81382710025) 488 RON
75 1 1 TENSION SPRING RD 0,6X5,4X41,2 UK 333 (87051710074) 1340 RON
76 1 2 THREAD CUTTING SCREW A (86175174166) 446 RON
77 1 1 WING NUT (87005658068) 781 RON
79 1 1 CLAMPING PLATE (81482704480) 10288 RON
80 1 3 KNOB, RED (81388698264) Indisponibil Indisponibil
81 1 1 Feed rod (81385701124) 11519 RON
82 1 1 LEVER (81482701112) 190 RON
83 1 1 HEXAGON FIT BOLT (81485707430) 2459 RON
84 1 2 WOODRUFF KEY (86720083831) 446 RON
85 1 1 ANGLE SCALE (81142215647) 190 RON
86 1 5 MEDIUM WASHER (86300016330) 446 RON
87 1 14 Flange nut (6209110995) 446 RON
88 1 1 RETAINING RING FOR SHAFTS (86400627930) 446 RON
89 1 2 GEARWHEEL UK333 (81380698214) 3689 RON
90 1 1 Gear-wheel shaft (81485701571) 10288 RON
91 1 1 ANGLE POINTER (81482701368) 3689 RON
92 1 2 HEXAGON THIN NUT (86205029131) 446 RON
93 1 1 HEX. SOCKET SET SCREW, FLAT PT (86161132754) 446 RON
95 1 1 BOLT UK 333 (81010723830) 15993 RON
98 1 1 HEXAGON SOCKET HEAD CAP SCREW (86121000731) 446 RON
99 1 1 Washer Washer cod vechi 86300016365 (141151940) 446 RON
100 1 1 CAP NUT, SELF-LOCKING (86208073395) 446 RON
101 1 1 7004076740 - Indisponibil
102 1 1 HANDWHEEL (87003079524) 7157 RON
103 1 7 HEXAGON SOCKET HEAD CAP SCREW (86127059193) 446 RON
104 1 1 BUSHING (81485701334) 1340 RON
105 1 2 BEARING PLATE (81382701484) 3689 RON
106 1 1 DEEP GROOVE BALL BEARING cod vechi 87100010180 (143115740) 2459 RON
107 1 1 WOODRUFF KEY (86720008511) 446 RON
108 1 1 FEED SPINDLE (81385701566) 10288 RON
109 1 7 Fillister head screw w.fill. head screw (86186602763) 446 RON
110 1 1 DUST EXTRACTION PORT UK333 (81381701324) 3018 RON
111 1 1 ANGLE BRACKET (81382701387) 488 RON
114 1 1 RAISED CHEESE HEAD SCREW (86123002049) 446 RON
115 1 1 SPRING BAND (87052222014) 105 RON
118 1 2 HEXAGON THIN NUT (86205029131) 446 RON
120 1 1 Hex fit bolt (86104220876) Indisponibil Indisponibil
121 1 1 Locking lever (81482701031) 3689 RON
122 1 1 FLEXIBLE PRESSURE PIECE (87055043684) 3018 RON
123 1 1 COVER UK333 (81381708299) 2459 RON
124 1 3 CABLE BRACKET UK290/333 (81381706881) 669 RON
125 1 1 Push stick (81394201630) 3018 RON
126 1 2 SIDE-PANEL (81382700976) 15993 RON
127 1 2 BUSHING (81485700885) 105 RON
128 1 4 RUBBER FOOT 57,3X13,4X14 SCHWARZ (87057706400) 781 RON
129 1 2 Truss head screw (86110000659) 446 RON
130 1 5 CUP SQUARE NECK SCREW (86110000608) Indisponibil Indisponibil
131 1 1 REAR PANEL (81382700925) 33553 RON
132 1 4 BOLT A (86632123360) 105 RON
133 1 4 Truss head screw (86110000667) 781 RON
134 1 4 BUSHING (81485700850) 1340 RON
135 1 4 BUSHING (81485700877) 190 RON
136 1 4 STARLOCK WITHOUT CAP (87016056183) 446 RON
137 1 2 LEG (81383700848) 13756 RON
138 1 4 EYE BOLT (86141701671) 105 RON
139 1 8 Truss head screw (86110015990) 446 RON
140 1 4 SETTING KNOB WITH RED CAP (81388701680) 3689 RON
141 1 1 RETAINING CLIP KGT 501 (81382680185) 105 RON
142 1 2 CROSSHEAD (81382687112) 8275 RON
143 1 2 Truss head screw (86110017942) 446 RON
144 1 1 FRONT PANEL (81382700895) 34448 RON
145 1 1 Support plate (81382710050) 13756 RON
146 1 1 SWITCH KSK K570 UK333 CH (88133711512) 41718 RON
147 1 1 HOLDER,CARRIAGE RETURN SPRING F?R STO?D (81381216175) 781 RON
148 1 1 VENT END PLUG (81381216167) 781 RON
149 1 1 CABLE CLIP (88242051328) 105 RON
151 1 1 PISTON ROD (81485701911) 3689 RON
152 1 1 PISTON, SHOCK ABSORBER (81381216183) 781 RON
153 1 1 PIPE (81381707489) 190 RON
154 1 1 TENSION SPRING RDI 22X101X1,5 (87051221944) 1564 RON
155 1 1 VENT END PLUG (81381216159) 781 RON
157 1 1 TRANSMISSION ASSEMBLY UK 333 (81010721004) 93951 RON
160 1 1 LEG (81383700821) 11519 RON
161 1 1 ADJUSTABLE FOOT ASSEMBLY VERSTELLBAR (82010200787) 7157 RON
162 1 3 Lamellar plug black (81391059264) 446 RON
163 1 1 LEG (81383700830) 13756 RON
180 1 1 FENCE GUIDE EXTRUSIO (81010720490) 955 RON
181 1 2 WING NUT (87005658068) 781 RON
182 1 1 CLAMPING PAD UK333 (81381698285) 781 RON
183 1 1 CAM BOLT (81485701997) 4249 RON
184 1 1 HEXAGON FIT BOLT (81485706620) 2459 RON
185 1 1 HEX. SOCKET SET SCREW, FLAT PT (86161183502) 446 RON
186 1 2 CUP SPRING (87053063343) 446 RON
187 1 1 ANGLE BRACKET (81382701930) 19236 RON
188 1 1 STARLOCK (87016122305) 446 RON
189 1 1 ANGLE SCALE (81142215949) 488 RON
190 1 1 SHIM PLATE (81482215935) 7157 RON
191 1 1 LOCK BOLT (81485215979) 1564 RON
192 1 2 PRESSURE SPRING, MITRE FENCE (87051148694) 446 RON
193 1 1 Guide (81383701968) 13756 RON
194 1 1 POINTER, MITRE FENCE (81482216010) 781 RON
195 1 2 Fillister head screw (86172028215) 446 RON
196 1 1 SCALE (81142708309) 2459 RON
197 1 1 GLIDE PIECE (82391202772) 446 RON
198 1 1 LOCK PLATE (81380215981) 3018 RON
199 1 1 CLAMPING PAD UK333 (81380701983) 24046 RON
200 1 1 CLAMPING LEVER (81380216031) 3689 RON
201 1 1 HEX. SOCKET SET SCREW, FLAT PT (86161029120) 781 RON
202 1 1 RATCHET LOCK LEVER, FEMALE (87006028653) Indisponibil Indisponibil
203 1 6 Washer (86300016322) Indisponibil Indisponibil
204 1 1 PRESSURE SPRING (87051207240) 446 RON
205 1 1 HEX. SOCKET SET SCREW, DOG PT. (86163198736) 1564 RON
206 1 1 REMOVABLE TABLE SECTION (81383696484) 26730 RON
207 1 2 CAGE NUT (86264714948) 781 RON
208 1 1 TABLE ASSEMBLY (81010707508) 171574 RON
209 1 4 CORNER BRACKE (81010710835) 11519 RON
210 1 2 GUIDE BAR (81385701663) 15993 RON
211 1 4 PRISMENFUEHRUNG UK333 (81380698222) 2459 RON
212 1 4 FLAT BAR (81482653304) 781 RON
213 1 8 HEXAGON SOCKET HEAD CAP SCREW (86121029098) 446 RON
214 1 1 BUSHING 16X1,8X32 UK333 (81482711290) 3689 RON
215 1 1 Washer (81482711282) 1340 RON
216 1 1 RAISED CHEESE HEAD SCREW (86123612815) 446 RON
217 1 2 CABLE BRACKET 19X19 (88242711301) 781 RON
218 1 1 Chip deflector (81482712750) 488 RON
219 1 1 PRALLBLECH (81482712769) 2459 RON
220 1 1 0910063057 - Indisponibil
222 1 2 Fillister head screw w.fill. head screw (86172001805) 446 RON
223 1 1 SLEEVE, CABLE SUPPORT TYP 15-561 (81341016980) 781 RON
224 1 3 TERMINAL BLOCK 2,5 mm? VDE 5VD4 301 /Nr. (88216103930) 446 RON
225 1 1 WASHER A 5,3 VERZ. (86305002478) 446 RON
226 1 1 SERRATED LOCK WASHER (86304084039) 446 RON
227 1 1 STRAIN RELIEF (88242033664) 446 RON
228 1 1 HEXAGON SOCKET HEAD CAP SCREW (86121121296) 446 RON
