P 3300 N - 0250330030 10 - EU 230V
[0250330030 10]
P 3300 N - 0250330030 10 - EU 230V
Click pentru a mari
Imagini suplimentare
P 3300 N - 0250330030 10 - EU 230V
Click pentru a mari

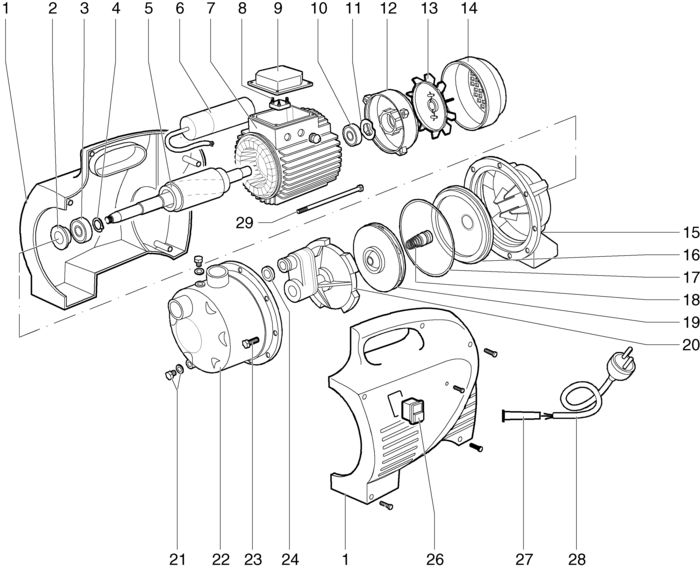

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING HALF 2-TLG. MIT SCHALTER?FFNUNG (81341676025) 18341 RON
2 1 1 SPLASH RING ET (81349148818) Indisponibil Indisponibil
3 1 1 DEEP GROOVE BALL BEARING (87100136915) Indisponibil Indisponibil
4 1 1 RETAINING RING ET (86403149070) 446 RON
5 1 1 ARMATURE ET (81345185670) 30980 RON
6 1 1 CAPACITOR 12,5uF/450V/P2/IP44 ET (88050102468) 10288 RON
7 1 1 1349185667 - Indisponibil
8 1 1 TERMINAL BOARD ET (81349148915) 2459 RON
9 1 1 LID, TERMINAL BOX ET (81349149067) 190 RON
10 1 1 DEEP GROOVE BALL BEARING (cod vechi 7100083463 ) (143115730) 2459 RON
11 1 1 BALL BEARING SHIM RING 31,7X26,5X0,4 (87140086759) 781 RON
12 1 1 BEARING CAP RD 95 MM ET (81345185638) 5479 RON
13 1 1 COOLING FAN RD 109 BOHRG. RD 12 ET (81341185650) 105 RON
14 1 1 FAN COVER 125X5 ET (81342185645) 2459 RON
15 1 1 MOTOR BASE ET (81343186807) 18341 RON
16 1 1 CAP, MOTOR BASE, STAINL. STEEL ET (81342186811) 13756 RON
17 1 1 O-RING 165X3,5 ET (7632149217) 105 RON
18 1 1 DUOCONE SEAL (4SCHR) /ET (81349131559) 7157 RON
19 1 1 1349676199 - Indisponibil
20 1 1 VENTURI DIFFUSOR ET (81349102419) 19236 RON
21 1 2 SCREW WITH GASKET 3/8" ET (81003655802) 3018 RON
22 1 1 PUMP CASING, STAINLESS STEEL ET (81342186820) 68673 RON
23 1 8 HEXAGON SOCKET HEAD CAP SCREW (86121000731) 446 RON
24 1 1 O-RING 24,99X3,53 70 SHORE (87632193097) 446 RON
26 1 1 Switch On/Of (88112148966) 5926 RON
27 1 1 SLEEVE, CABLE SUPPORT TYP 15-561 (81341016980) 781 RON
29 1 4 MOTOR TIE ROD M 5X132 ET (81349148850) 446 RON
