Top » Piese de schimb » PIESE METABO » 0109025011 10

UK 330 - 0109025011 10 - GB 230V
[0109025011 10]
UK 330 - 0109025011 10 - GB 230V
Click pentru a mari
Imagini suplimentare
UK 330 - 0109025011 10 - GB 230V
Click pentru a mari
UK 330 - 0109025011 10 - GB 230V
Click pentru a mari
UK 330 - 0109025011 10 - GB 230V
Click pentru a mari
UK 330 - 0109025011 10 - GB 230V
Click pentru a mari

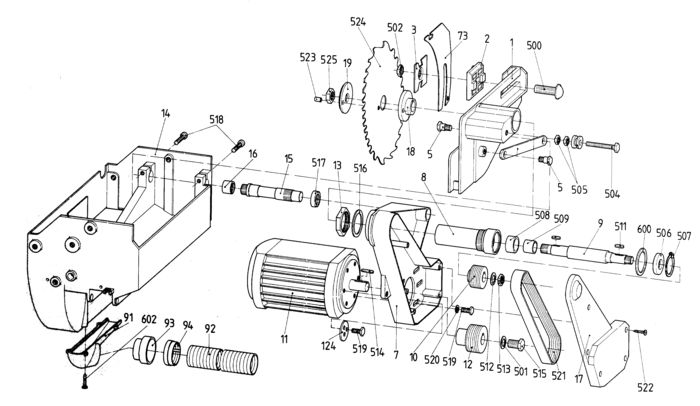

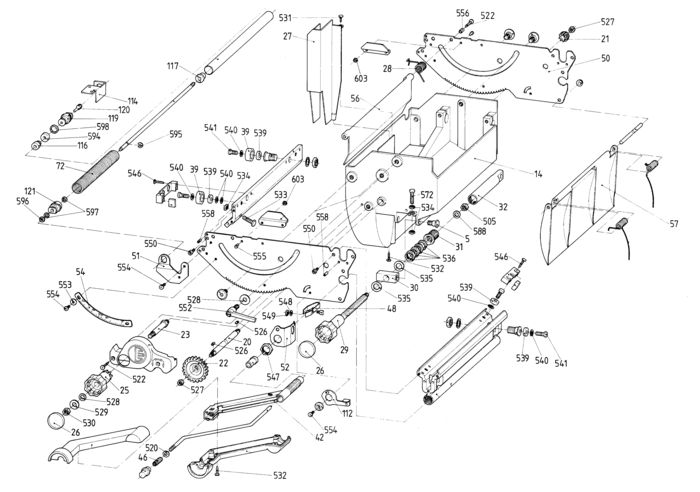

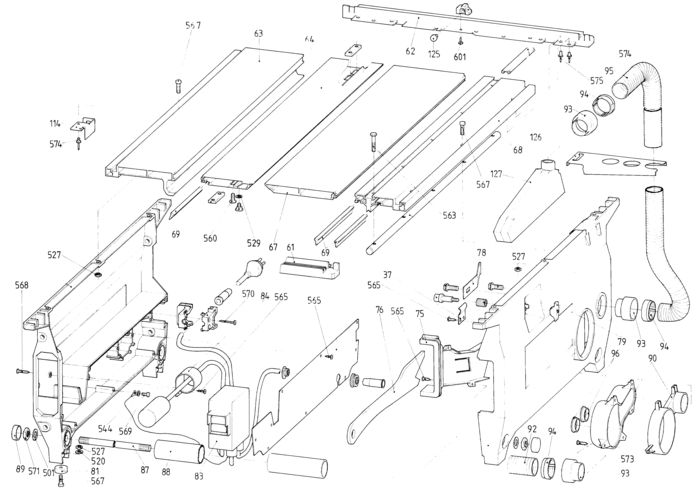

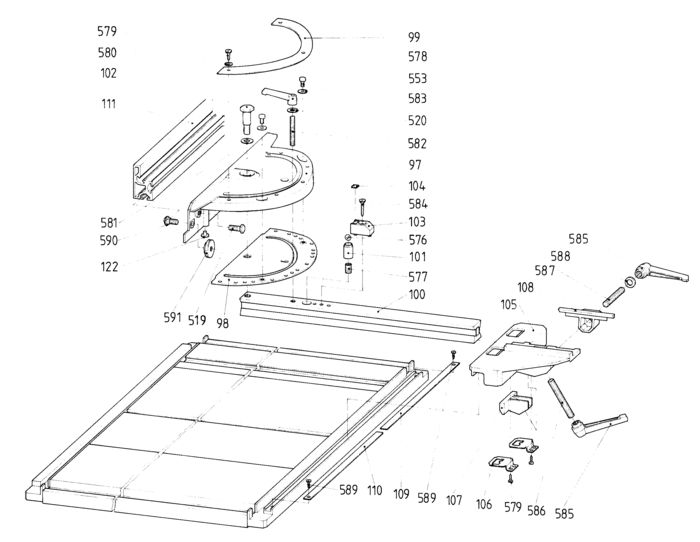

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SAW BLADE HOUSING (81380215086) 19236 RON
2 1 1 RIVING KNIFE CARRIER (81380215221) 3018 RON
3 1 1 1482215242 - Indisponibil
5 1 1 COLLAR SCREW (81485209480) 105 RON
7 1 1 GEARBOX ENCLOSURE (81380215060) 3698 RON
8 1 1 1385215424 - Indisponibil
9 1 1 SAW BLADE SPINDLE RD 24X193 (81385215394) 18341 RON
10 1 1 POLY-RIB PULLEY RD 44,5X30 /8 RILLEN S?G (81385208002) 3689 RON
11 1 1 1010166663 - Indisponibil
12 1 1 POLY-RIB PULLEY RD 54,5X53 /8 RILLEN MOT (81385208029) 13756 RON
13 1 1 Hex nut flat (81485208085) 4249 RON
14 1 1 1380215051 - Indisponibil
15 1 1 ARTICULATED AXLE RD 21X127 (81385215262) 13756 RON
16 1 1 1385215270 - Indisponibil
17 1 1 1381215071 - Indisponibil
18 1 1 BLADE COLLAR RD 62,5X20,5 (81485215405) 15993 RON
19 1 1 BLADE COLLAR, OUTER RD 62,5X6 (81485215413) 7157 RON
20 1 1 GEARWHEEL SHAFT RD 10X412,5 (81485215294) 10288 RON
21 1 1 1380215310 - Indisponibil
22 1 1 GEARWHEEL RD 62X19 (81380215329) 3018 RON
23 1 1 GEARWHEEL AXLE SW 13X87 (81485215308) 3689 RON
25 1 1 HANDWHEEL, BLADE TILT (81381215330) 1564 RON
26 1 1 HANDWHEEL COVER (81381212846) 446 RON
27 1 1 1381215217 - Indisponibil
28 1 1 TORSION SPRING 10,5 WINDUNGEN (87051216487) 1564 RON
29 1 1 1010153693 - Indisponibil
30 1 1 1482215471 - Indisponibil
31 1 1 1485215456 - Indisponibil
32 1 1 1485215430 - Indisponibil
37 1 1 LEAF SPRING 0,4X25X40 (87052216120) 781 RON
39 1 1 ROLLER RD 29X10 (81381215624) 781 RON
42 1 1 FEED ROD ASSEMBLY (81482216109) 19236 RON
46 1 1 PRESSURE SPRING 0,8XRDI 6,7X29 (87051215790) 446 RON
48 1 1 LEAF SPRING (87052215689) 1564 RON
50 1 1 1482215099 - Indisponibil
51 1 1 1382215849 - Indisponibil
52 1 1 1482215340 - Indisponibil
54 1 1 ANGLE SCALE (81142215647) 190 RON
56 1 1 1381215284 - Indisponibil
57 1 1 1381215578 - Indisponibil
61 1 1 1483215530 - Indisponibil
62 1 1 1483215521 - Indisponibil
63 1 1 1383215494 - Indisponibil
64 1 1 TABLE EXTRUSION 719,5 +-0,2 MM INNEN / (81383215516) 33553 RON
67 1 1 1383215508 - Indisponibil
68 1 1 1383215486 - Indisponibil
69 1 1 1381215675 - Indisponibil
72 1 1 CARRIAGE RETURN SPRING 1,5XRDI 22 VERZIN (87051215839) 1340 RON
73 1 1 RIVING KNIFE BL 2,50X122,6X185 (81482215234) 955 RON
75 1 1 1381208547 - Indisponibil
76 1 1 Push stick (81394201630) 3018 RON
78 1 1 7051213259 - Indisponibil
79 1 1 Thumb-nut (87005215360) 1564 RON
81 1 1 RUBBER FOOT RD 30X17,5 80 SHORE (87057208753) 781 RON
83 1 1 SWITCH ASSEMBLY 230V 50HZ M.KAB+KOND. (G (81010155424) 127394 RON
84 1 1 CAPACITOR CLAMP BL 0,88X35X178,5 RDI 44 (81332025186) 1564 RON
87 1 1 THREADED ROD M 12X585 (81485208930) 4249 RON
88 1 1 1383208269 - Indisponibil
89 1 1 PLUG RD 35,5X18 (81381120097) 781 RON
90 1 1 MAIN SUCTION PORT (81381215888) 10288 RON
91 1 1 DUST EXTRACTION PORT (81381215896) 5479 RON
92 1 1 CORRUGATED HOSE RDI 36,2X670 PROFIL D (87854148308) 4249 RON
93 1 1 END SLEEVE 3 RD 54,5/42,6X39 ABSAUGSCHL. (81381212374) 1340 RON
94 1 1 END SLEEVE JOINER (81381212943) 105 RON
95 1 1 CORRUGATED HOSE RDI 36,2X1200 PROFIL D (87854148316) 7157 RON
96 1 1 PLUG RD 34X16,5 (81321141362) 446 RON
97 1 1 1380215922 - Indisponibil
98 1 1 SHIM PLATE (81482215935) 7157 RON
99 1 1 ANGLE SCALE (81142215949) 488 RON
100 1 1 DOVETAIL GUIDE 425 MM (81383215966) 13756 RON
101 1 1 LOCK BOLT (81485215979) 1564 RON
102 1 1 HEXAGON FIT BOLT SW 19X42 (81395205400) 2124 RON
103 1 1 VERNIER CARRIER, MITRE FENCE (81381216000) 446 RON
104 1 1 VERNIER SCALE 1,00X12X9 0,5 GRAD (81110216110) 1340 RON
105 1 1 1380215990 - Indisponibil
106 1 1 POINTER, MITRE FENCE (81482216010) 781 RON
107 1 1 LOCK PLATE (81380215981) 3018 RON
108 1 1 CLAMPING LEVER (81380216031) 3689 RON
109 1 1 SKALENBAND RECHTS (81142216040) 3689 RON
110 1 1 SKALENBAND LINKS (81142216058) 3689 RON
111 1 1 FENCE EXTRUSION 470 MM SECANTA (81383675037) 15993 RON
112 1 1 1482216133 - Indisponibil
114 1 1 1382216195 - Indisponibil
116 1 1 PISTON, SHOCK ABSORBER (81381216183) 781 RON
117 1 1 VENT END PLUG (81381216167) 781 RON
119 1 1 VENT END PLUG (81381216159) 781 RON
120 1 1 VALVE PIN,THREADED M 8X11/ 27 LANG (81485216223) 1340 RON
121 1 1 HOLDER,CARRIAGE RETURN SPRING F?R STO?D (81381216175) 781 RON
122 1 1 GLIDE PIECE (82391202772) 446 RON
124 1 1 BELT TENSIONER BL 2,99X?40 (81482208181) 781 RON
125 1 1 PLUG-IN BUFFER (82391203906) 446 RON
126 1 1 HOSE CARRIER BL 2,50X107X236,5 (81482213525) 7157 RON
127 1 1 SAW BLADE GUARD WITH SUCTION PORT (81010698878) 19236 RON
500 1 1 CUP SQUARE NECK SCREW M 12X40 VERZ. (86110149253) 781 RON
501 1 1 Washer (86300016705) Indisponibil Indisponibil
502 1 1 HEXAGON NUT (86200017992) 446 RON
504 1 1 HEXAGON HEAD SCREW M 8X50 VERZ. (86103001216) 446 RON
505 1 1 HEXAGON NUT (86200002235) Indisponibil Indisponibil
506 1 1 Ball bearing (87100010164) 4249 RON
507 1 1 Retaining ring shaft (86401121364) 446 RON
508 1 1 Needle sleeve (87104120142) 8275 RON
509 1 1 Inner ring (87104120150) 7157 RON
511 1 1 Parallel key (86721074089) 446 RON
512 1 1 Washer (86300019984) 446 RON
513 1 1 HEXAGON THIN NUT (86205088367) 446 RON
514 1 1 Parallel key (86721059322) 446 RON
515 1 1 Hex head screw (86103001267) 781 RON
516 1 1 Shim (86306121349) 446 RON
518 1 1 HEXAGON SOCKET HEAD CAP SCREW (86121029098) 446 RON
519 1 1 Hex head screw (86103121416) 446 RON
520 1 1 Washer (86305002087) 446 RON
521 1 1 7233120124 - Indisponibil
522 1 1 86172028134 - Indisponibil
523 1 1 CLAMPING SLEEVE 6X12 (86503088175) 446 RON
524 1 1 1386120133 - Indisponibil
525 1 1 HEXAGON THIN NUT M 16X1,5 LINKS VERZ. FO (86205149269) 105 RON
526 1 1 WOODRUFF KEY 2X3,7 (86720151241) 446 RON
527 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
528 1 1 Washer (86305002486) 446 RON
529 1 1 Cup spring (87053016795) 446 RON
530 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
531 1 1 Fillister head screw (86172100099) 446 RON
532 1 1 86172032905 - Indisponibil
533 1 1 HEXAGON HEAD SCREW M 6X30 VERZ. (86103019921) 446 RON
534 1 1 Hex nut (86200002219) 446 RON
536 1 1 HEXAGON THIN NUT (86205028038) 446 RON
539 1 1 DEEP GROOVE BALL BEARING 6X19X6 626 -2Z (87100047262) 1564 RON
540 1 1 Washer Washer cod vechi 86300016365 (141151940) 446 RON
541 1 1 HEXAGON SOCKET HEAD CAP SCREW (86127059193) 446 RON
544 1 1 SERRATED LOCK WASHER (86304084039) 446 RON
546 1 1 COUNTERSUNK HEAD TAPPING SCREW ST 3,5X22 (86174001918) 446 RON
547 1 1 HEXAGON THIN NUT (86205052753) 781 RON
548 1 1 Washer (86300016357) 446 RON
549 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002283) 446 RON
550 1 1 HEXAGON HEAD SCREW M 5X12 VERZ. (86103001100) 446 RON
552 1 1 RATCHET LOCK LEVER, MALE M 8X16 (87006029730) 4249 RON
553 1 1 WASHER A 5,3 VERZ. (86305002478) 446 RON
554 1 1 RAISED CHEESE HEAD SCREW M 5X6 VERZ. (86123149287) 446 RON
555 1 1 Fillister head screw (86123002022) 446 RON
556 1 1 SPACER SLEEVE RD 5,4/4X10 (86442120283) 781 RON
558 1 1 CLAMPING SLEEVE 5X10 MIT EINER FASE (86503029250) 446 RON
560 1 1 Hex head screw (86103015675) 446 RON
563 1 1 Hex head screw (86103001151) 446 RON
565 1 1 86172015687 - Indisponibil
567 1 1 Cap screw (86121000766) 446 RON
568 1 1 COUNTERSUNK HEAD TAPPING SCREW ST 4,2X25 (86174001950) 446 RON
569 1 1 THREAD ROLLING SCREW A M 5X12 - ST-Z VER (86143142823) 446 RON
570 1 1 6172121312 - Indisponibil
571 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202024139) 446 RON
572 1 1 Cap screw (86121000766) 446 RON
573 1 1 86172001848 - Indisponibil
574 1 1 BLIND RIVET, MUSHROOM HEAD (86621010407) 446 RON
576 1 1 STEEL BALL RD 7,938 (87123148635) 446 RON
577 1 1 PRESSURE SPRING, MITRE FENCE (87051148694) 446 RON
578 1 1 HEXAGON SOCKET HEAD CAP SCREW (86121121296) 446 RON
579 1 1 Fillister head screw (86172028215) 446 RON
580 1 1 MEDIUM WASHER (86300016330) 446 RON
581 1 1 WAVE SPRING WASHER B 12 VERZ. (86302085941) 446 RON
582 1 1 Grub screw (86162148646) 781 RON
583 1 1 Clamping lever (87006072385) 2459 RON
584 1 1 COUNTERSUNK HEAD TAPPING SCREW (86174093740) 446 RON
585 1 1 RATCHET LOCK LEVER, FEMALE (87006028653) Indisponibil Indisponibil
586 1 1 HEX. SOCKET SET SCREW, DOG PT. M 8X80 VE (86163148658) 105 RON
587 1 1 HEX. SOCKET SET SCREW, FLAT PT (86161029120) 781 RON
588 1 1 Washer (86300016322) Indisponibil Indisponibil
589 1 1 Fillister head screw (86172091014) 446 RON
590 1 1 CUP SQUARE NECK SCREW (86110000594) 446 RON
591 1 1 KNURLED THUMB NUT, THIN TYPE M 6 (86241149240) 446 RON
594 1 1 CUP SLEEVE 18X8X6/2 (87636149637) 105 RON
595 1 1 RETAINING WASHER RD 5 VERZ. (86404149626) 446 RON
596 1 1 STARLOCK (87016122305) 446 RON
597 1 1 O-RING 5,23X2,62 70 SHORE (87632149640) 446 RON
598 1 1 O-RING 13X2 70 SHORE (87632114120) 446 RON
600 1 1 Shim (86306132014) 446 RON
601 1 1 6189145754 - Indisponibil
602 1 1 HEXAGON HEAD TAPPING SCREW (86171028084) 446 RON
603 1 1 HEXAGON NUT, PREV. TORQUE TYPE M 4 VERZ. (86202065412) 446 RON
