Top » Piese de schimb » PIESE METABO » 00323000

B 32/3 - 00323000 - EU 230V
[00323000]
B 32/3 - 00323000 - EU 230V
Click pentru a mari
Imagini suplimentare
B 32/3 - 00323000 - EU 230V
Click pentru a mari

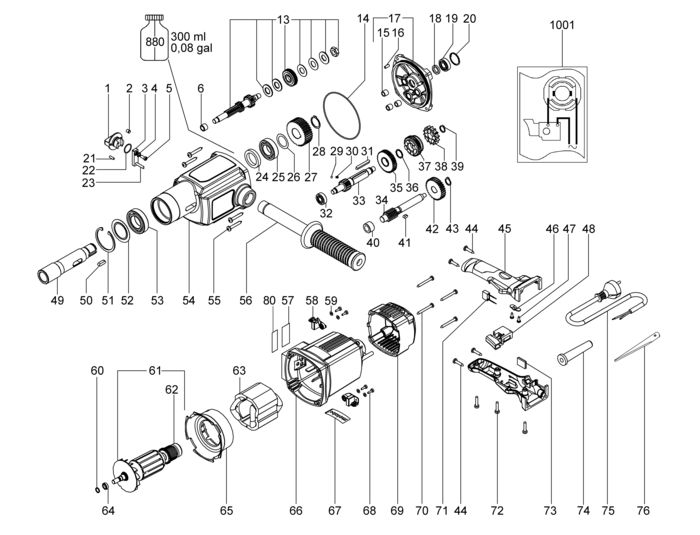

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Control knob (341058850) 18341 RON
2 1 1 Index bolt (342003540) 3018 RON
3 1 1 Switch lever cpl. (316043210) 3689 RON
4 1 1 Circlip (141156430) 669 RON
5 1 1 Cap screw (141113680) 781 RON
6 1 1 Needle sleeve (143115130) 2124 RON
13 1 1 Clutch cpl. (316043200) 117663 RON
14 1 1 O-ring (143195190) 190 RON
15 1 3 Needle sleeve (143115120) 2459 RON
16 1 1 Cylindrical pin (141164000) 781 RON
17 1 1 Gear flange compl. (316043220) 3698 RON
18 1 1 Shaft seal (143195170) 5479 RON
19 1 1 Ball bearing, 12x28x8 (143114800) 5479 RON
20 1 1 Retaining ring (141164010) 669 RON
21 1 1 Cylindrical pin (141163980) 446 RON
22 1 1 O-ring (143195180) 669 RON
23 1 1 Cylindrical pin (141164020) 669 RON
24 1 1 WELLENDICHTRING (143192880) 2459 RON
25 1 1 Grooved ball bearing (143115150) 488 RON
26 1 1 Shim (141156410) 669 RON
27 1 1 Spindle wheel (340003880) 21361 RON
28 1 1 141181080 - Indisponibil
29 1 1 Ball (143120080) 446 RON
30 1 1 Spindle shaft (342003530) 781 RON
31 1 1 Parallel key (141140190) 2124 RON
32 1 1 Grooved ball bearing (143115140) 3689 RON
33 1 1 Pinion shaft (340003960) 21361 RON
34 1 1 Pinion shaft (340003970) 19236 RON
35 1 1 Gear wheel (340003920) 3698 RON
36 1 1 Circlip (342022160) 669 RON
37 1 1 Sliding block (340003950) 46975 RON
38 1 1 Gear wheel (340003930) 3698 RON
39 1 1 Retaining ring (141180080) 446 RON
40 1 1 Needle bearing (143115110) 5926 RON
41 1 1 141140080 - Indisponibil
42 1 1 Intermediate gear (340003940) 18341 RON
43 1 1 Retaining ring (141180090) 781 RON
44 1 4 Fillister head screw w.fillister head sr (141123630) 669 RON
45 1 1 Handle half pair (343394850) 11519 RON
46 1 1 Clamp (339160750) 669 RON
47 1 2 Self-tap. fill. h. screw (341701460) 446 RON
48 1 1 Switch (343408780) 26730 RON
49 1 1 Spindle (341604060) 64311 RON
50 1 1 PASSFEDER (141140140) 1340 RON
51 1 1 Circlip (141180870) 781 RON
52 1 1 Washer (339007170) 781 RON
53 1 1 143112270 - Indisponibil
54 1 1 Gear housing (315104780) 78180 RON
55 1 4 Fillister head screw (141123640) 669 RON
56 1 1 Side support handle (314001120) 19236 RON
57 1 1 Rating plate (338050330) 446 RON
58 1 2 Carbon brush set,230V (343012350) 30980 RON
59 1 4 Lock washer (141156400) 669 RON
60 1 1 Circlip (342022150) 781 RON
61 1 1 Armature cpl. 230V (310009380) 14839 RON
62 1 1 Bearing cap (343394830) 3018 RON
63 1 1 Field coil assembly w.field coil,230V (311010900) 59166 RON
64 1 1 Bush (341005780) 5926 RON
65 1 1 Baffle (339151120) 5479 RON
66 1 1 Motor housing (315013280) 24046 RON
67 1 1 M-Label,08 52x22 (338122160) 446 RON
68 1 4 Fill. head screw(DIN 7985) (141120070) 446 RON
69 1 1 Motor cap (343394840) 8275 RON
70 1 4 Self-tap. fill. h. screw (141119370) 446 RON
71 1 1 Interference suppr. cond. (343254520) 2459 RON
72 1 3 Self-tap. fill. h. screw (141119380) 446 RON
73 1 1 Cover plate (343395400) 105 RON
74 1 1 Cable sleeve (344098420) 2459 RON
75 1 1 Cable (344497560) 13756 RON
76 1 1 642396000 - Indisponibil
80 1 1 399999990 - Indisponibil
880 1 1 Grease Grease (344131190) 3698 RON
1001 1 1 338504790 - Indisponibil
