Top » Piese de schimb » PIESE METABO » 0113032014 10

HC 320 G/3,10 WNB - 0113032014 10 - EU 230V
[0113032014 10]
HC 320 G/3,10 WNB - 0113032014 10 - EU 230V
Click pentru a mari
Imagini suplimentare
HC 320 G/3,10 WNB - 0113032014 10 - EU 230V
Click pentru a mari
HC 320 G/3,10 WNB - 0113032014 10 - EU 230V
Click pentru a mari
HC 320 G/3,10 WNB - 0113032014 10 - EU 230V
Click pentru a mari
HC 320 G/3,10 WNB - 0113032014 10 - EU 230V
Click pentru a mari
HC 320 G/3,10 WNB - 0113032014 10 - EU 230V
Click pentru a mari
HC 320 G/3,10 WNB - 0113032014 10 - EU 230V
Click pentru a mari

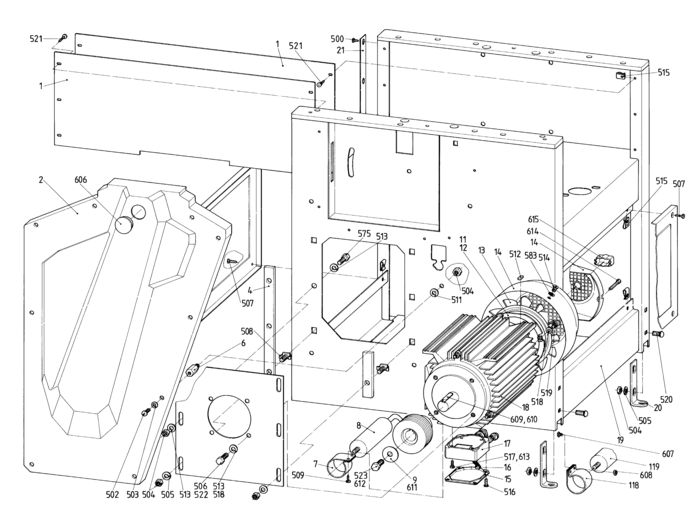

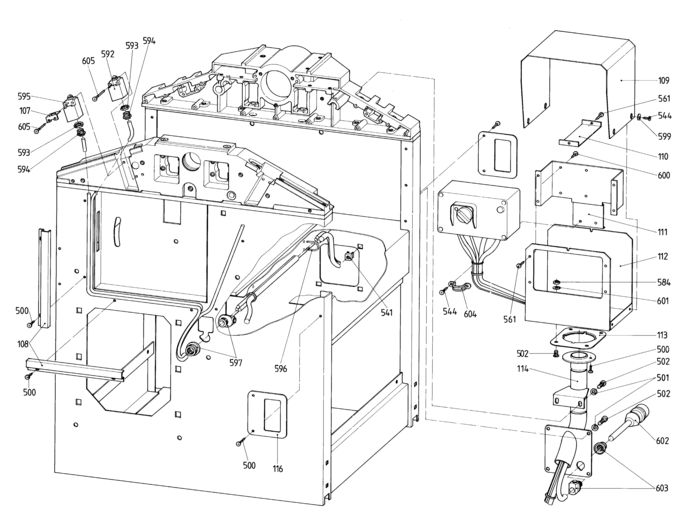

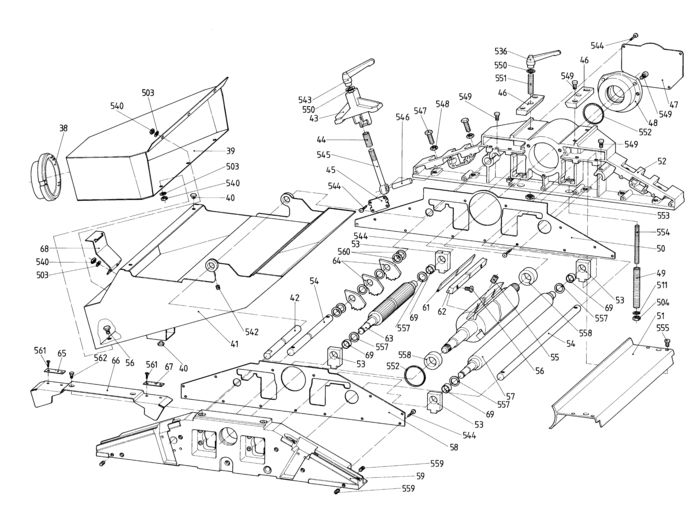

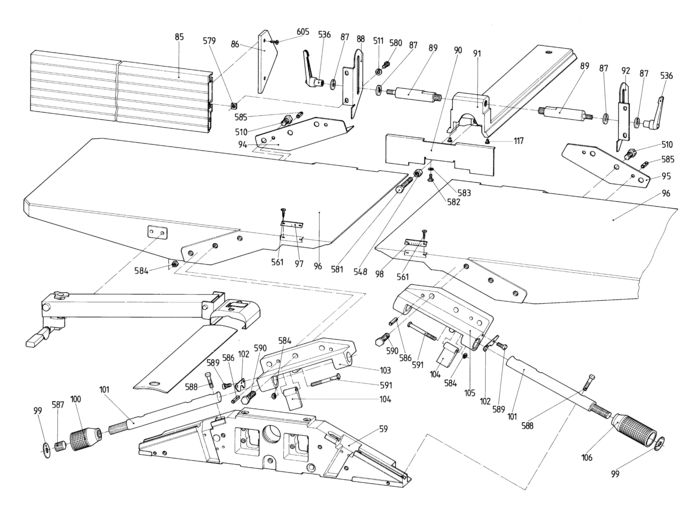

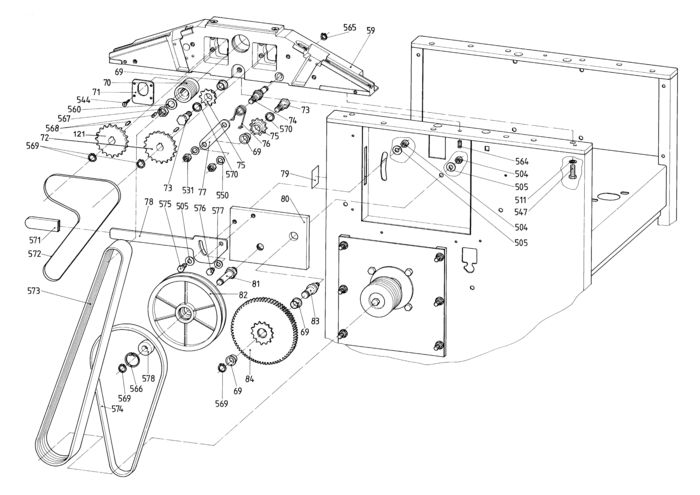

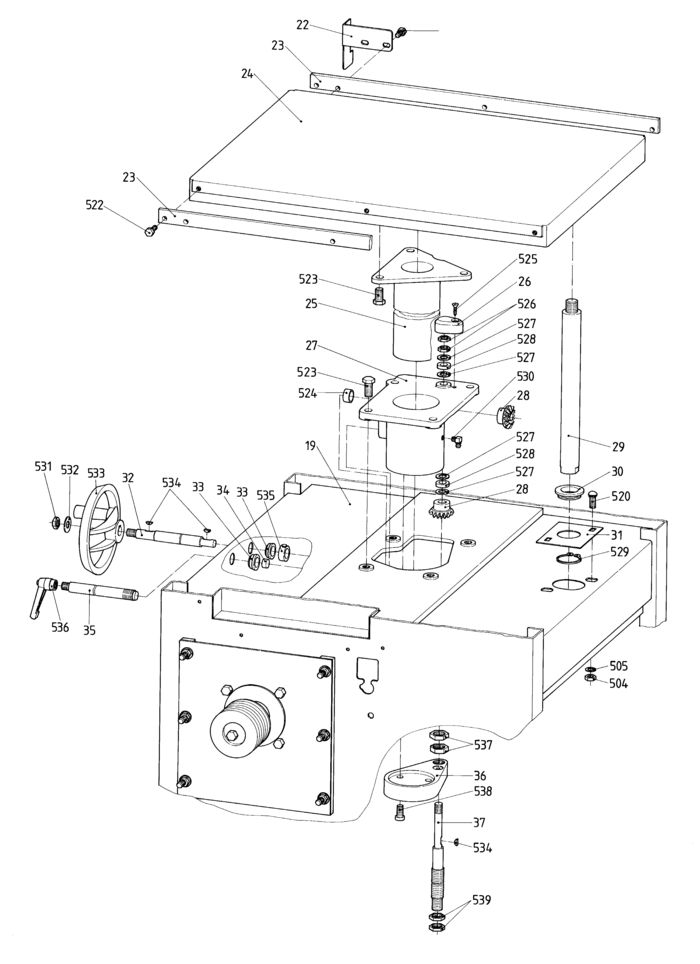

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 COVER PLATE BL 2,5X240X686 (81382218724) 10288 RON
2 1 1 THICKNESSER DRIVE COVER SCHWARZ (81381218780) 64311 RON
4 1 1 STRIP FL 25X10X290 (81382218716) 7157 RON
6 1 1 SPACER BOLT SW 14X46 M8/M6 (81485218200) 1564 RON
7 1 1 CAPACITOR CLAMP BL 0,88X35X178,5 RDI 44 (81332025186) 1564 RON
8 1 1 CAPACITOR 37,5uF/400V 45,5X93 BOLZEN M 8 (88050011829) 10288 RON
11 1 1 MECHANICAL MOTORBRAKE ASSEMBLY KLEIN (88055046132) Indisponibil Indisponibil
12 1 1 1332172545 - Indisponibil
13 1 1 FAN WING 120/13 WELLEND. 16 (81331408839) 105 RON
14 1 1 FAN COVER 120/13 (81331408847) 1340 RON
15 1 1 LID, MOTOR TERMINAL BOX (81331409665) 105 RON
16 1 1 RECTIFIER 230 V 1-PHASEN-MOTOR (81010001150) 7157 RON
17 1 1 LOWER CASING, MOTOR TERM. BOX (81331409657) 2459 RON
18 1 1 1011169402 - Indisponibil
19 1 1 1382219364 - Indisponibil
20 1 1 FOOT FL 25X5X136 (81382218767) 3018 RON
21 1 1 SCALE 1,00X30X238 0,00-23,00 CM (81142219120) 3689 RON
22 1 1 POINTER, THICKNESSER BED BL 1,50X88X125 (81482218993) 7157 RON
23 1 1 SIDE DELIMITATION FL 25X4X654 (81382218481) 10288 RON
24 1 1 1380219286 - Indisponibil
25 1 1 COLUMN, HEIGHT ADJUSTMENT (81380218514) 78180 RON
26 1 1 CAP, SPINDLE (81381219131) 781 RON
27 1 1 COLUMN GUIDE, HEIGHT ADJUSTMT. (81380218522) 59166 RON
28 1 1 CONICAL GEAR WHEEL Z=16 M2,5 45GRAD RDI (81380218565) 2124 RON
29 1 1 GUIDE SHAFT RD 30X320 (81485218650) 24046 RON
30 1 1 BUSHING RD 45/38X11 (81381218747) 7157 RON
31 1 1 SETTING PLATE BL 2,99X84X90 (81482218730) 2124 RON
32 1 1 SHAFT, HEIGHT ADJUSTMENT RD 16X455 (81485218552) 15993 RON
33 1 1 BEARING, HEIGHT ADJUSTMENT RD 28/20X10 (81381218585) 781 RON
34 1 1 BRAKE PAD RD 13,7X10 (81385218598) 2124 RON
35 1 1 LOCK BAR RD 16X310 (81485218609) 11519 RON
36 1 1 CAP, COLUMN (81380218530) 21361 RON
37 1 1 1485218544 - Indisponibil
38 1 1 CONNECTOR RD 100 SPA 1000 (81381053489) 3018 RON
39 1 1 DUST CHUTE (81011219701) 46975 RON
40 1 1 PLUG-IN BUFFER (82391203906) 446 RON
41 1 1 CHIP EJECTION HOOD (81011219795) 108379 RON
42 1 1 AXLE RD 16X446 (81485219427) 8275 RON
43 1 1 TENSION BRACKET (81380218425) 5926 RON
44 1 1 PRESSURE SPRING RDI 11X1,2X36 (87051204055) 781 RON
45 1 1 TENSION BRACKET CLAMP BD 1,5X34X47 (81382218430) 781 RON
46 1 1 CLAMPING PIECE FL 30X12X100 (81482218870) 8275 RON
47 1 1 COVER PLATE, DRILL CHUCK BL 1,5X118X168 (81482219094) 4249 RON
48 1 1 1380218107 - Indisponibil
49 1 1 PRESSURE SPRING RDI 9X89X2,2 (87051218340) 781 RON
50 1 1 COVER PLATE BL 2X141,8X698 (81382218899) 10288 RON
51 1 1 GUARD EXTRUSION 350 MM (81383219309) 18341 RON
52 1 1 SIDE PANEL RECHTS (81380218166) 137236 RON
53 1 1 BEARING BLOCK (81380218263) 2124 RON
54 1 1 AXLE RD 16X350 (81485219419) 7157 RON
55 1 1 PRESSURE SPRING RDI 6,7X20X0,8 (87051219907) 446 RON
56 1 1 STRAINING SCREW M 6X11 SW10 (81485210365) 781 RON
57 1 1 1485219079 - Indisponibil
58 1 1 COVER PLATE BL 2,00X125,8X600 (81382218902) 955 RON
59 1 1 1380218158 - Indisponibil
61 1 1 0911014220 - Indisponibil
62 1 1 CUTTERBLOCK WEDGE 320 MM LANG (81482219400) 19236 RON
63 1 1 1485219060 - Indisponibil
64 1 1 1482218365 - Indisponibil
65 1 1 SCALE 1,00X16X50 0 (81142219324) 190 RON
66 1 1 1382218791 - Indisponibil
67 1 68 SCALE 1,00X16X50 0-5 (81142219111) 1564 RON
68 1 1 BOLT 60X130 (81382219720) 7157 RON
69 1 1 BEARING BUSH RD 16/20/24X16 (87151218576) 105 RON
70 1 1 POLY-RIB PULLEY RDA 44,5X46 RDI 20 PN 6 (81385218180) 10288 RON
71 1 1 COVER PLATE BL 2X56X62 (81382218295) 105 RON
72 1 1 7246220551 - Indisponibil
73 1 1 HEXAGON FIT BOLT SW19X42 / M 10 RUNDUMBE (81485218706) 3689 RON
74 1 1 BOLT, CHAIN TENSIONER RD 24X85 M10 (81485218960) 8275 RON
75 1 1 CHAIN SPROCKET RDA 46,2X14/RDI 20 Z=10 (87246218280) 105 RON
76 1 1 TORSION SPRING (87051005753) Indisponibil Indisponibil
77 1 1 BRACKET FL 25X4X100 (81482218950) 2124 RON
78 1 1 TRANSMISSION LEVER BL 4,00X67X315 (81482218640) 7157 RON
79 1 1 ADHESIVE LABEL SILVER/BLACK 38X47 SYMB. (81141218910) 105 RON
80 1 1 TRANSMISSION BASE PLATE FL 140X10X208 (81482218616) 19236 RON
81 1 1 BOLT RD 15X75 / SW 24 (81385218504) 955 RON
82 1 1 FLAT BELT PULLEY RDA 197X57,5 RDI 15 (87242218692) 13756 RON
83 1 1 BOLT, GEAR WHEEL RD 25X66 (81485218498) 8275 RON
84 1 1 GEARWHEEL/CHAIN SPROCKET RDA 174X30,5/RD (87247218941) 5479 RON
85 1 1 1383218868 - Indisponibil
86 1 1 1381218925 - Indisponibil
87 1 1 WASHER RDA 25 RDI 10,1X4 (81485218633) 1340 RON
88 1 1 ANGLE BRACKET BL 2,99X79,5X(158) VORNE (81482218829) 3689 RON
89 1 1 THREADED BOLT RD 25X140 M10/M16 (81485218811) 10288 RON
90 1 1 GUARD PLATE BL 2X80X286 (81382218848) 7157 RON
91 1 1 FENCE CARRIER (81380219430) 78180 RON
92 1 1 ANGLE BRACKET BL 2,99X79,5X(158) HINTEN (81482218837) 3689 RON
94 1 1 ANGLE BRACKET BL 5,00X94X236,5 HINTEN (81482218136) 7157 RON
95 1 1 1482218128 - Indisponibil
96 1 1 1380219227 - Indisponibil
97 1 1 SCALE 1,00X10X55 0 (81142219332) 190 RON
98 1 1 SCALE 1,00X10X55 0-5 (81142219103) 1564 RON
99 1 1 SCALE 1,00XRD39 (81142219146) 190 RON
100 1 1 SETTING HANDLE RD 45X70 (81485218455) 18341 RON
101 1 1 SETTING SHAFT RD 25X299/M 20 (81485218471) 24046 RON
102 1 1 PLATE, SETTING HANDLE BL 2,99X23X44 (81482218462) 1340 RON
103 1 1 HINGE HINTEN (81380218140) 54357 RON
104 1 1 BOLT 32 MM (81383219163) 1564 RON
105 1 1 1380218115 - Indisponibil
106 1 1 SETTING HANDLE RD 45X110 (81485218447) 24046 RON
107 1 1 LIMIT SWITCH PLATE BL 0,88X33X35 (81482219191) 1564 RON
108 1 1 1382219003 - Indisponibil
109 1 1 SWITCH ENCLOSURE, UPPER BL 2,00X155X602 (81382219356) 10288 RON
110 1 1 STAY BL 1,50X50X142 (81382219950) 4249 RON
111 1 1 PLATE, CABLE BRACKET BL 2X181X338,5 (81382219941) 10288 RON
112 1 1 SWITCH ENCLOSURE, LOWER BL 2,00X253X527 (81382219348) 19236 RON
113 1 1 CLAW PLATE, CABLE CONDUIT BL 2,00X110X11 (81482218675) 2124 RON
114 1 1 CABLE GUIDE (81011219442) 3698 RON
116 1 1 MOVER PLATE BL 2,5X100X112 (81382219593) 2124 RON
117 1 1 GLIDE PIECE (82391202772) 446 RON
118 1 1 1332412546 - Indisponibil
119 1 1 8050136176 - Indisponibil
121 1 1 SLIP COUPLER ET (81010633970) 2848 RON
193 1 1 1384219973 - Indisponibil
500 1 1 THREAD CUTTING SCREW A (86175174166) 446 RON
501 1 1 Washer (86305002087) 446 RON
502 1 1 RAISED CHEESE HEAD SCREW M 6X16 VERZ. (86123153659) 446 RON
503 1 1 Washer Washer cod vechi 86300016365 (141151940) 446 RON
504 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
505 1 1 Washer (86305002486) 446 RON
506 1 1 HEXAGON HEAD SCREW M 8X20 VERZ. (86103001186) 446 RON
507 1 1 COUNTERSUNK HEAD TAPPING SCREW (86174093740) 446 RON
508 1 1 FISHBOLT M 8X30 TYP: 0828-30 (86143167761) 190 RON
509 1 1 Fillister head screw w. cross head (86172001791) Indisponibil Indisponibil
510 1 1 HEXAGON HEAD SCREW M 10X20 VERZ. (86103005270) 446 RON
511 1 1 Washer (86300016322) Indisponibil Indisponibil
512 1 1 FEATHER KEY A 6X6X25 (86721041822) 446 RON
513 1 1 Serrated lock washer (86304001745) 446 RON
515 1 1 TIN NUT (86265167657) 781 RON
516 1 1 86189011421 - Indisponibil
517 1 1 Fillister head screw (86123002022) 446 RON
518 1 1 Serrated lock washer (86304084047) 446 RON
519 1 1 Cap screw (86121023081) 446 RON
520 1 1 Truss head screw (86110017942) 446 RON
521 1 1 86172001848 - Indisponibil
522 1 1 Hex head screw (86103015675) 446 RON
523 1 1 HEXAGON HEAD SCREW M 10X25 VERZ. (86103001224) 446 RON
524 1 1 BEARING BUSH RD 16X18X17 (87150015698) 105 RON
525 1 1 6172121312 - Indisponibil
526 1 1 HEXAGON THIN NUT M 12 VERZ. FORM B (86205055744) 446 RON
527 1 1 THRUST WASHER AS 1226 (87104167670) 105 RON
528 1 1 THRUST NEEDLE COLLAR AXK 1226 (87104167661) 3018 RON
529 1 1 Retaining ring shaft (86400121379) 446 RON
530 1 1 LUBRICATING NIPPLE CM 6 (87152171107) 105 RON
531 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002313) 446 RON
532 1 1 WASHER (86305002494) 446 RON
533 1 1 HANDWHEEL P 206-160-K14 MIT BALLENGRIF (87003167709) 2848 RON
534 1 1 WOODRUFF KEY (86720008538) 446 RON
535 1 1 CLAMPING RING A 16 MIT SCHRAUBE (86415178954) 8275 RON
536 1 1 RATCHET LOCK LEVER, FEMALE M 10 IG 18 MM (87006073730) 4249 RON
537 1 1 HEXAGON THIN NUT (86205032396) 446 RON
538 1 1 HEXAGON SOCKET HEAD CAP SCREW M 8X20 VER (86121000804) 446 RON
539 1 1 HEXAGON THIN NUT M 20 LINKS VERZ. (86205167640) 105 RON
540 1 1 Hex nut (86200002219) 446 RON
541 1 1 CAGE NUT (86264166657) 446 RON
542 1 1 Grub screw w.internal hexagon (86164029245) 446 RON
543 1 1 RATCHET LOCK LEVER, FEMALE M 10 IG 18 MM (87006073730) 4249 RON
544 1 1 86172015687 - Indisponibil
545 1 1 EYE BOLT M 10X110 VERZ. (86141167578) 4249 RON
546 1 1 PARALLEL PIN 10 h8X50 (86500167600) 781 RON
547 1 1 HEXAGON HEAD SCREW M 8X25 VERZ. (86103001194) 446 RON
548 1 1 HEXAGON NUT (86200002235) Indisponibil Indisponibil
549 1 1 HEXAGON SOCKET HEAD CAP SCREW M 6X25 VER (86121151098) 446 RON
550 1 1 MEDIUM WASHER (86300016349) 446 RON
551 1 1 HEX. SOCKET SET SCREW, FLAT PT M10X60 VE (86161167620) 105 RON
552 1 1 O-RING 52,07X2,62 (87632167711) 446 RON
553 1 1 HEXAGON NUT M 10 VERZ. (86200002251) 446 RON
554 1 1 STUD BOLT, HEADLESS B M 8X110 VERZ. (86551116113) 1340 RON
555 1 1 HEXAGON SOCKET HEAD CAP SCREW (86127059193) 446 RON
557 1 1 SHIM RING S 16X22X1,5 (86306009980) 446 RON
558 1 1 DEEP GROOVE BALL BEARING 25X52X15 6205-2 (87100093418) 5926 RON
559 1 1 HEX. SOCKET SET SCREW, DOG PT. M 8X12 VE (86163087683) 446 RON
560 1 1 Washer (86300016713) 446 RON
561 1 1 Fillister head screw (86172028215) 446 RON
562 1 1 CROSS RECESSED FLAT HEAD SCREW (86131059530) 446 RON
564 1 1 PARALLEL PIN 6 m6X20 (86500074440) 446 RON
565 1 1 RETAINING RING FOR SHAFTS 10X1 VERZ. (86400047349) 446 RON
566 1 1 CIRCLIP FOR BORES J 35X1,5 (86401009963) 446 RON
567 1 1 HEXAGON THIN NUT (86205028038) 446 RON
568 1 1 Parallel key (86721059322) 446 RON
569 1 1 RETAINING RING FOR SHAFTS (86400009897) 446 RON
570 1 1 SHIM RING 16X22X1 VERZ. (86306009760) Indisponibil Indisponibil
571 1 1 HANDLE 24X4X100 ROT (81381167697) 105 RON
572 1 1 ROLLER CHAIN 74 GLIEDER 1/2" TEILUNG EN (87236167741) 488 RON
573 1 1 POLY-RIB BELT 13 PJ 1321 TYP 520 (87233167732) 24046 RON
574 1 1 FLAT BELT 900X12X1,5 GELB (87232167720) 15993 RON
575 1 1 HEXAGON HEAD SCREW M 8X30 VERZ. (86103031271) 446 RON
576 1 1 HEXAGON HEAD SCREW M 8X12 VERZ. (86103001160) 446 RON
577 1 1 Cup spring (87053016795) 446 RON
578 1 1 DEEP GROOVE BALL BEARING 15X35X11 6202-2 (87100067433) 3689 RON
579 1 1 SQUARE NUT (86218005126) 446 RON
580 1 1 Hex head screw (86103001178) Indisponibil Indisponibil
581 1 1 HEXAGON HEAD SCREW M 8X55 VERZ. (86102052461) 446 RON
582 1 1 HEXAGON SOCKET HEAD CAP SCREW (86121121296) 446 RON
583 1 1 SERRATED LOCK WASHER (86304084039) 446 RON
584 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
585 1 1 CLAMPING SLEEVE 8X16 (86503050429) 446 RON
586 1 1 6503167830 - Indisponibil
587 1 1 HEX. SOCKET SET SCREW, CONE PT M20X20 VE (86162167616) 1564 RON
588 1 1 Cap screw (86121000812) 446 RON
589 1 1 Cap screw (86127059185) 446 RON
590 1 1 HEXAGON HEAD SCREW M 10X40 VERZ. (86103001259) 446 RON
591 1 1 HEXAGON HEAD SCREW M 6X70 VERZ. (86102167587) 446 RON
592 1 1 LIMIT SWITCH (88116011850) 2848 RON
593 1 1 HEXAGON THIN NUT PG 9 MIT PG-GEWINDE (88244167960) 446 RON
594 1 1 SEAL NIPPLE PG 9 (88240167752) 446 RON
595 1 1 8116167973 - Indisponibil
596 1 1 CABLE TIE 3,5X180 (88490118536) 446 RON
597 1 1 STRAIN RELIEF ZEV 12-14 / PG 13.5 (88240015103) 3018 RON
599 1 1 Washer (86300016357) 446 RON
600 1 1 86172032905 - Indisponibil
601 1 1 CUP SPRING (87053081619) 446 RON
602 1 1 PLUG, SCHUKO TYPE 16 A / 220-250 V (B) (88215061699) 8275 RON
603 1 1 STRAIN RELIEF ZEV 9-12/PG 11 (88240015090) 1340 RON
604 1 1 PIPING CLIP RD 20/BREITE 12 BOHRUNG 5,3 (81382167771) 1340 RON
605 1 1 86172011150 - Indisponibil
606 1 1 PLUG RD 38,4X12,5 TYP F 30 (81381219611) 781 RON
607 1 1 HEXAGON HEAD SCREW M 5X12 VERZ. (86103001100) 446 RON
608 1 1 HEXAGON NUT (86200002200) 446 RON
610 1 1 Parallel key (86721059322) 446 RON
611 1 1 WASHER B 13 VERZ. (86305002508) 446 RON
612 1 1 HEXAGON HEAD SCREW M 12X1,5 LINKS X30 VE (86103083956) 105 RON
613 1 1 RAISED CHEESE HEAD SCREW (86123067132) 446 RON
614 1 1 Fillister head screw w.fill. head screw (86172001805) 446 RON
615 1 1 CAP MOTORWELLE (81381083779) 446 RON

Conditii Generale
