Top » Piese de schimb » PIESE METABO » 03150000

DS W 3150 - 03150000 - EU 230V
[03150000]
DS W 3150 - 03150000 - EU 230V
Click pentru a mari
Imagini suplimentare
DS W 3150 - 03150000 - EU 230V
Click pentru a mari

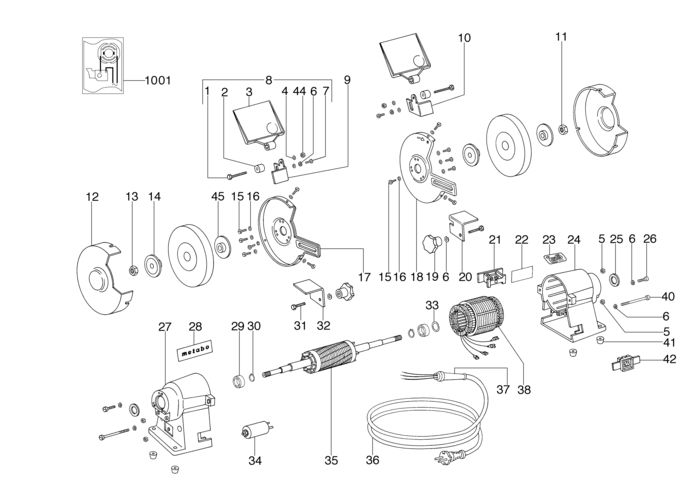

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 2 Hexagon head screw (141119410) 446 RON
2 1 2 Sleeve (341055070) 1340 RON
3 1 2 Eye shield (344350410) 2124 RON
4 1 2 Washer (141150020) 446 RON
5 1 4 Hexagonal nut (141130090) 446 RON
6 1 8 Spring washer (141150270) 446 RON
7 1 2 Hexagon head screw (141110050) 446 RON
8 1 2 316026020 - Indisponibil
9 1 1 Angle left (339128080) 105 RON
10 1 1 Angle right (339128090) 105 RON
11 1 1 Hexagonal nut (141130140) 446 RON
12 1 2 Wheel guard cover (339202670) 13756 RON
13 1 1 Hexagonal nut (141130150) 781 RON
14 1 2 Clamping flange (315414510) 8275 RON
15 1 12 Fillister head screw (141113220) 446 RON
16 1 12 Washer (141150010) 446 RON
17 1 1 Wheel guard (339202680) 11519 RON
18 1 1 Wheel guard right (339202690) 11519 RON
19 1 2 Star grip (143170240) 4249 RON
20 1 1 TOOL REST RIGHT (339128070) 2459 RON
21 1 1 STRESS RELIEVE (343371480) 446 RON
22 1 1 Rating plate (338033130) 781 RON
23 1 1 GS APPROVAL SEAL (338110690) 5926 RON
24 1 1 MOTOR HOUSING RIGHT (315012580) 19236 RON
25 1 1 Felt ring (344070630) 781 RON
26 1 2 Fillister head screw (141116780) 446 RON
27 1 1 MOTOR HOUSING LEFT (315012570) 19236 RON
28 1 1 Metabo label (338115510) 446 RON
29 1 2 Ball bearing, 15x32x9 (143110210) 7157 RON
30 1 2 Retaining ring (141180090) 781 RON
31 1 2 Hexagon head screw (141115940) 446 RON
32 1 1 TOOL REST LEFT (339128060) 2459 RON
33 1 1 Washer (339128110) 446 RON
34 1 1 Condenser (343253920) 5926 RON
35 1 1 Rotor cpl. (313000760) 26730 RON
36 1 1 Cable with plug (344492950) 7157 RON
37 1 1 Cable sleeve (344095050) 1340 RON
38 1 1 Stator (312000960) 64311 RON
40 1 2 Cap screw (141111290) 781 RON
41 1 4 Rubber foot (344095040) 105 RON
42 1 1 343406250 - Indisponibil
44 1 2 Hexagonal lock nut (141130930) 446 RON
45 1 1 Clamping flange (315414570) 8275 RON
1001 1 1 338501550 - Indisponibil
