TA M 3034 - 03034000 - EU 230V
[03034000]
TA M 3034 - 03034000 - EU 230V
Click pentru a mari
Imagini suplimentare
TA M 3034 - 03034000 - EU 230V
Click pentru a mari

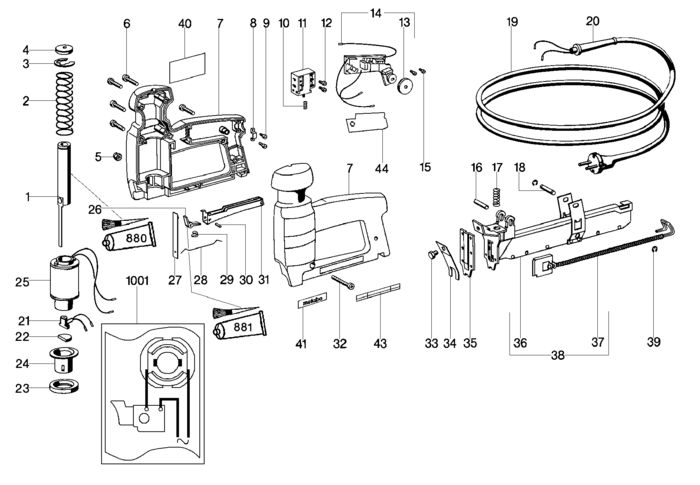

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Ram cpl. (341143180) 7157 RON
2 1 1 Pressure spring (342001410) 781 RON
3 1 1 Circlip (341142780) 781 RON
4 1 1 Buffer (344092760) 105 RON
5 1 1 Hexagonal lock nut (141131220) 446 RON
6 1 5 Self-tap. fill. h. screw (341701700) 446 RON
7 1 1 Housing with cover (343360910) 30980 RON
8 1 1 Cable clip (339180070) 781 RON
9 1 2 341701370 - Indisponibil
10 1 1 Pressure spring (342001420) 105 RON
11 1 1 Switch (343403390) 8275 RON
12 1 2 Fillister head screw (141116970) 781 RON
13 1 1 Selector (343360920) 781 RON
14 1 1 Electronic unit 220 V (343071410) 39481 RON
15 1 2 Cap screw (341701630) 446 RON
16 1 1 Spacing tube (341003580) 781 RON
17 1 1 Pressure spring (342001390) 781 RON
18 1 1 Bolt (341513680) 5479 RON
19 1 1 Cable with plug (344493180) 955 RON
20 1 1 Cable sleeve (344100330) 781 RON
21 1 1 Stopper (341144110) 34448 RON
22 1 1 Bumper (344092860) 190 RON
23 1 1 Intermediate layer (344092770) 446 RON
24 1 1 Pan (339122590) 3689 RON
25 1 1 Coil cpl. (311007510) 33553 RON
26 1 1 Pawl (343360930) 1340 RON
27 1 1 Transmission pin (343360940) 446 RON
28 1 1 Spring (342001440) 781 RON
29 1 1 Pressure spring (342001430) 781 RON
30 1 1 Spindle (341142830) 446 RON
31 1 1 Tripping device (343360950) 1564 RON
32 1 1 Fillister head screw (141118140) 446 RON
33 1 1 Hexagon head screw (341701690) 781 RON
34 1 1 342050330 - Indisponibil
35 1 1 Front plate (339122450) Indisponibil Indisponibil
36 1 1 Channel (341142770) 59166 RON
37 1 1 Slide cpl. (341142810) 7157 RON
38 1 1 Channel cpl. (341142820) 73930 RON
39 1 2 Circlip (141181710) 446 RON
40 1 1 Indication label (338106820) 1340 RON
41 1 1 Metabo label (338122410) 446 RON
43 1 1 Rating plate (338021920) 446 RON
44 1 1 Insulation (339111170) 446 RON
880 1 1 Grease 50Gr 1,8oz (344131030) 488 RON
881 1 1 Grease SGF 079 (344130270) 2459 RON
1001 1 1 338503720 - Indisponibil
