Top » Piese de schimb » PIESE METABO » 0103004209 11

PK 300/4,20 DNB K - 0103004209 11 - 3 / 400V/50Hz
[0103004209 11]
PK 300/4,20 DNB K - 0103004209 11 - 3 / 400V/50Hz
Click pentru a mari
Imagini suplimentare
PK 300/4,20 DNB K - 0103004209 11 - 3 / 400V/50Hz
Click pentru a mari
PK 300/4,20 DNB K - 0103004209 11 - 3 / 400V/50Hz
Click pentru a mari
PK 300/4,20 DNB K - 0103004209 11 - 3 / 400V/50Hz
Click pentru a mari
PK 300/4,20 DNB K - 0103004209 11 - 3 / 400V/50Hz
Click pentru a mari

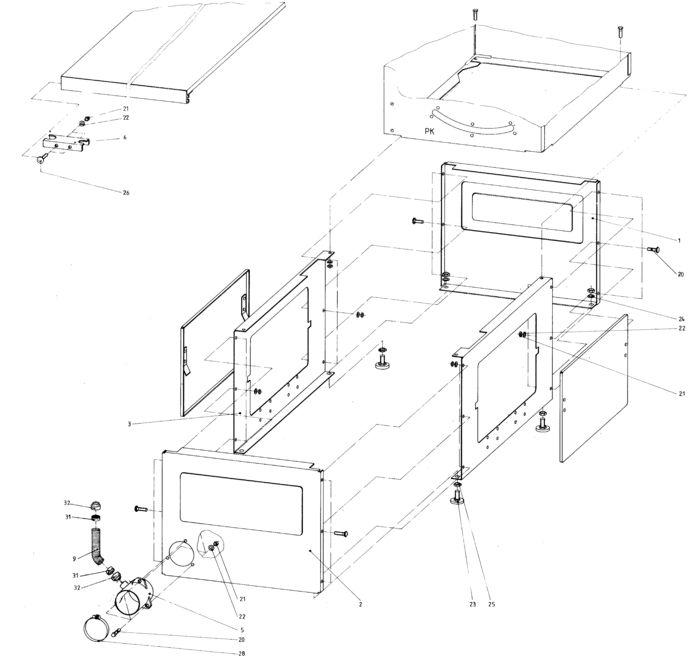

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 FRONT PANEL BL 2,00X607X690 (81392207038) 34448 RON
2 1 1 REAR PANEL BL 2X607X690 (81392207127) 34448 RON
3 1 1 SIDE PANEL BL 2,00X607X670 (81392207020) 30980 RON
5 1 1 DUST EXTRACTION PORT (81381214121) 3689 RON
6 1 1 HOSE CARRIER BL 2,99X100X160 (81482214092) 3018 RON
9 1 1 CORRUGATED HOSE RDI 36,2X2800 PROFIL D (87854172748) 18341 RON
20 1 1 Hex head screw (86103015675) 446 RON
21 1 1 Hex nut (86200002219) 446 RON
22 1 1 Serrated lock washer (86304084047) 446 RON
23 1 1 ADJUSTING FOOT RD 50 / M 10X35 SCHWARZ (87057111385) 4249 RON
24 1 1 MEDIUM WASHER (86300016349) 446 RON
25 1 1 HEXAGON NUT M 10 VERZ. (86200002251) 446 RON
26 1 1 CUP SQUARE NECK SCREW (86110000594) 446 RON
28 1 1 HOSE CLAMP RD 90-110 / 12 SKZ (87811036697) 1564 RON
31 1 1 END SLEEVE JOINER (81381212943) 105 RON
32 1 1 END SLEEVE 3 RD 54,5/42,6X39 ABSAUGSCHL. (81381212374) 1340 RON
100 1 1 TABLE INSERT EXTRUSION 863 MM (81383213769) 3698 RON
101 1 1 TABLE PK 300 (81010213823) 171574 RON
102 1 1 Cap screw (86121000812) 446 RON
103 1 1 Cup spring (87053016795) 446 RON
104 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
105 1 1 Locking element,A (81380207482) 2124 RON
106 1 1 HEX.HEAD COLLAR DRILLING SCREW (86144063978) 446 RON
108 1 1 TOOTHED PLATE (81492200723) 5479 RON
109 1 1 BLIND RIVET, MUSHROOM HEAD 6X8 F FLACHRU (86621009530) 446 RON
110 1 1 REAR PANEL (81392200246) 21361 RON
111 1 1 SIDE PANEL (81392200211) 19236 RON
112 1 1 HEXAGON NUT (86200002235) Indisponibil Indisponibil
115 1 1 Locking element,B (81380207474) 2124 RON
116 1 1 Rack (81393200746) 955 RON
117 1 1 Feed rod (81495207516) 3018 RON
118 1 1 MEDIUM WASHER (86300087696) 446 RON
119 1 1 Selector wheel (81391200390) 2459 RON
120 1 1 Washer (86300016713) 446 RON
121 1 1 HEXAGON THIN NUT (86205032396) 446 RON
122 1 1 Washer (86300016322) Indisponibil Indisponibil
123 1 1 RATCHET LOCK LEVER, FEMALE (87006028653) Indisponibil Indisponibil
126 1 1 TOOTHED PLATE (81482685826) 955 RON
129 1 1 Fillister head screw (86172016683) 446 RON
130 1 1 ARBOR TILT SCALE 1,00 45-0 GRAD (81141200468) 3689 RON
135 1 1 Hex head screw (86103001178) Indisponibil Indisponibil
136 1 1 86172039632 - Indisponibil
137 1 1 STEEL TAPE MEASURE 0,165X13X707 0-44,20 (81142200623) 955 RON
138 1 1 SPRING PLATE 0,3X22X60 LEICHT GE?LT (81392204918) 781 RON
139 1 1 Truss head screw (86110015990) 446 RON
140 1 1 SPACER BUSHING RD 15/8,2X25 (81391087560) 446 RON
141 1 1 STARKNOB NUT M 8 (DIN 934) VERZINKT (87000028937) 105 RON
142 1 1 1010014499 - Indisponibil
143 1 1 CABLE CLIP (87052078118) 446 RON
144 1 1 FRONT PANEL (81392200238) 21361 RON
145 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
146 1 1 CUP SQUARE NECK SCREW (86110000594) 446 RON
147 1 1 WOODRUFF KEY (86720008538) 446 RON
148 1 1 SPACER SLEEVE (86442200309) 105 RON
149 1 1 Washer (86300019984) 446 RON
150 1 1 HANDWHEEL (87003087322) 11519 RON
151 1 1 Washer (86300016705) Indisponibil Indisponibil
152 1 1 CAP NU (86201074264) 105 RON
153 1 1 7004076740 - Indisponibil
154 1 1 Hex nut (86200002219) 446 RON
158 1 1 BEVEL TILT INDICATOR (81482214718) 781 RON
159 1 1 BEVEL TILT INDICATOR BRACKET (81482214700) 781 RON
160 1 1 PUSH STICK SHEATH (81382214699) 5926 RON
199 1 1 SHIM RING (86306028055) 446 RON
200 1 1 HEXAGON THIN NUT (86205008460) 1340 RON
201 1 1 BLADE COLLAR, OUTER RDA 75 RDI 20X6 (81485213682) 11519 RON
202 1 1 0910014099 - Indisponibil
203 1 1 BEARING BOLT (81395200611) 1340 RON
204 1 1 RETAINING RING FOR SHAFTS (86400087588) 105 RON
205 1 1 PILOT LINK PLATE (81392200343) 781 RON
206 1 1 BALL BEARING SHIM RING (87140006941) 1340 RON
207 1 1 RIVING KNIFE CARRIER PLATE (81392207151) 5479 RON
208 1 1 Washer Washer cod vechi 86300016365 (141151940) 446 RON
209 1 1 SWIVEL SEGMENT, PAIR (82390200199) 8275 RON
210 1 1 HEXAGON HEAD SCREW M 10X20 VERZ. (86103005270) 446 RON
211 1 1 Serrated lock washer (86304084047) 446 RON
213 1 1 TABLE SECTION (82390200202) 8275 RON
214 1 1 BEARING PLATE (81392200289) 781 RON
215 1 1 DEEP GROOVE BALL BEARING (87100136915) Indisponibil Indisponibil
216 1 1 SETTING TUBE (81393207503) 8275 RON
217 1 1 HEXAGON HEAD SCREW (86103000430) 446 RON
218 1 1 FEED SPINDLE RD 16X565 (81495024381) 18341 RON
219 1 1 CLAMPING SLEEVE (86503001711) 446 RON
220 1 1 SAW BLADE SPINDLE (81385213669) 2848 RON
221 1 1 Gear housing (81390200753) 39481 RON
222 1 1 DEEP GROOVE BALL BEARING (87100016812) 5479 RON
223 1 1 HEXAGON THIN NUT (86205052753) 781 RON
224 1 1 POLY-RIB PULLEY 14JX46,5/RDA46,5X50 RDI (81385213693) 11519 RON
225 1 1 POLY-RIB BELT (87233087313) 11519 RON
226 1 1 Retaining ring shaft (86401121364) 446 RON
227 1 1 DEEP GROOVE BALL BEARING (87100016995) 488 RON
228 1 1 HEXAGON HEAD SCREW (86103102632) 446 RON
229 1 1 CAM PLATE (81392200360) 2124 RON
231 1 1 POLY-RIB PULLEY 14JX54/RDA 54X57 RDI 20 (81385213707) 11519 RON
232 1 1 Cap screw (86121023081) 446 RON
233 1 1 Parallel key (86721059322) 446 RON
234 1 1 1010179145 - Indisponibil
235 1 1 HEXAGON NUT (86200017992) 446 RON
236 1 1 PULL BOLT (81395200271) 4249 RON
237 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202024139) 446 RON
238 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002313) 446 RON
239 1 1 Truss head screw (86110029436) 446 RON
240 1 1 1010213793 - Indisponibil
241 1 1 PRESSURE SPRING (87051207240) 446 RON
242 1 1 GUIDE BRACKET (81482213754) 190 RON
243 1 1 CUP SPRING (87053075104) 446 RON
244 1 1 COVER PLATE (81392200084) 2124 RON
245 1 1 CUP SQUARE NECK SCREW (86110000691) 781 RON
246 1 1 1381720965 - Indisponibil
247 1 1 RIVING KNIFE CARRIER 60X80X16 (82380213730) 3018 RON
248 1 1 RIVING KNIFE GR. 300X2,5 MIT FORMLOCH (81382213722) 8275 RON
249 1 1 PRESSURE PLATE BL 2,99X80X60 (81382213749) 781 RON
250 1 1 FLANGE NUT (86209002432) 105 RON
251 1 1 CHIP CASE COVER BL 1,5X318X637 (81382213803) 18341 RON
252 1 1 HOOK (81392200386) 781 RON
253 1 1 Hex head screw (86103015675) 446 RON
254 1 1 DUST EXTRACTION PORT (81391200501) 488 RON
255 1 1 Washer (86305002087) 446 RON
256 1 1 CUP SQUARE NECK SCREW M 6X45 VERZ. (86110000624) 446 RON
257 1 1 WING NUT M 6 GEW.-EINSATZ VERZINKT (87005125213) 446 RON
285 1 1 Fillister head screw w.fill. head screw (86172001805) 446 RON
286 1 1 MECHANICAL MOTORBRAKE ASSEMBLY KLEIN (88055046132) Indisponibil Indisponibil
287 1 1 FAN WING 120/13 WELLEND. 16 (81331408839) 105 RON
288 1 1 FAN COVER 120/13 (81331408847) 1340 RON
289 1 1 Hex head screw (86103001267) 781 RON
290 1 1 BRAKE PAD, MECHANICAL BRAKE ET (81332185329) 21361 RON
294 1 1 LOWER CASING, MOTOR TERM. BOX (81331409657) 2459 RON
295 1 1 Fillister head screw (86123002022) 446 RON
296 1 1 RECTIFIER, PRE-ASSEMBLED 230 V 3-PHASEN- (81010001141) 488 RON
297 1 1 LID, MOTOR TERMINAL BOX (81331409665) 105 RON
298 1 1 86189011421 - Indisponibil
308 1 1 Push stick (81394201630) 3018 RON
317 1 1 Truss head screw (86110031325) 446 RON
326 1 1 Guide rail (81492027223) 8275 RON
327 1 1 ANGLE STOP (81391200439) 105 RON
328 1 1 CROSS RECESSED FLAT HEAD SCREW (86131059530) 446 RON
329 1 1 ADHESIVE LABEL 1,00X12X9 0,5 GRAD (81141200450) 781 RON
330 1 1 HEXAGON SOCKET HEAD CAP SCREW (86121102640) 446 RON
331 1 1 HEXAGON NUT (86200002197) 446 RON
332 1 1 Serrated lock washer (86304084020) 446 RON
333 1 1 MITRE FENCE BODY (81390200419) 13756 RON
334 1 1 RATCHET LOCK LEVER (87006003847) 3018 RON
335 1 1 COUNTERSUNK HEAD TAPPING SCREW (86174001942) 446 RON
336 1 1 End piece (82391091725) 781 RON
337 1 1 FENCE EXTRUSION 300 MM (81393005315) 7157 RON
338 1 1 ADHESIVE LABEL 1,00 48-0-48 GRAD (81141200441) 2459 RON
339 1 1 Fillister head screw (86172028215) 446 RON
340 1 1 MEDIUM WASHER (86300016330) 446 RON
341 1 1 SLOTTED HEADLESS SCREW (86160000340) 446 RON
342 1 1 Knurled nut (86241125058) 781 RON
343 1 1 PLUG QUERANSCHLAG (81391200145) 1340 RON
350 1 1 FENCE CARRIER EXTRUSION 490 MM (81383214420) 21361 RON
351 1 1 THUMB SCREW M 6X68 (86150190299) 105 RON
352 1 1 Washer (86305002087) 446 RON
353 1 1 SQUARE NUT (86218005126) 446 RON
354 1 1 HEXAGON SOCKET HEAD CAP SCREW M 8X16 VER (86121000790) 446 RON
355 1 1 FENCE CARRIER (81380214497) 19236 RON
356 1 1 SET SCREW RD 19/SW 6X110 / M 8 (81485214379) 5926 RON
357 1 1 Cup spring (87053016795) 446 RON
358 1 1 TENSION BRACKET (81380214349) 488 RON
360 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
361 1 1 BOLT RD 12/10X45 (81485214360) 1564 RON
362 1 1 Cam lock lever (82390205484) 3018 RON
363 1 1 RETAINING RING FOR SHAFTS 10X1 VERZ. (86400047349) 446 RON
364 1 1 RAISED CHEESE HEAD SCREW M 5X6 VERZ. (86123149287) 446 RON
365 1 1 LEAF SPRING (87052214356) 1340 RON
366 1 1 THREAD CUTTING SCREW A (86175174166) 446 RON
367 1 1 EXTRUSION END CAP (81381214458) 105 RON
368 1 1 Self-tapp. counters. screw (86174155800) 446 RON
369 1 1 GLIDE RAIL FL 16X5X230 PARALLELANSCHLAG (81482214548) 3689 RON
370 1 1 MAGNIFYING GLASS SEAT TKU1693 (81381695820) 105 RON
371 1 1 MAGNIFYING GLASS (81381659999) 2459 RON
372 1 1 AUXILIARY FENCE EXTRUSION 700 MM (81383214447) 18341 RON
7000 1 1 2010200108 - Indisponibil
