Top » Piese de schimb » PIESE METABO » 0230030006 10

K 300/10/50 W - 0230030006 10 - EU 230V
[0230030006 10]
K 300/10/50 W - 0230030006 10 - EU 230V
Click pentru a mari
Imagini suplimentare
K 300/10/50 W - 0230030006 10 - EU 230V
Click pentru a mari
K 300/10/50 W - 0230030006 10 - EU 230V
Click pentru a mari

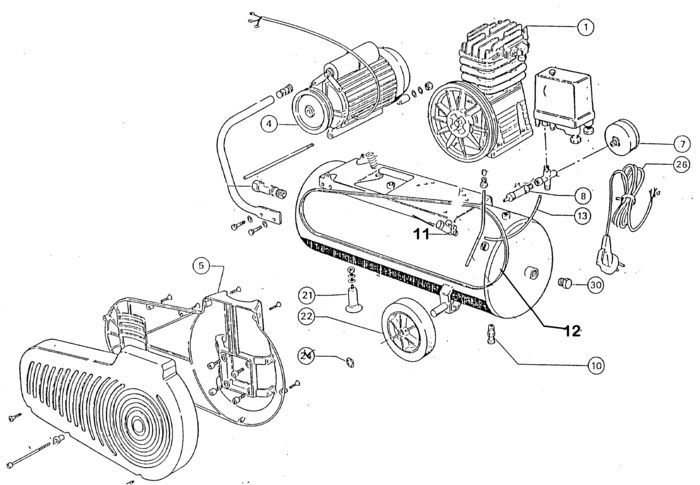

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 1313107503 - Indisponibil
4 1 1 7240614604 - Indisponibil
7 1 1 PRESSURE GAUGE RD 50 1/4"0/20 10B ET (87823182869) 15993 RON
8 1 1 SAFETY VALVE R 3/8" 11 BAR ET (87833182638) 33553 RON
10 1 1 DRAIN VALVE R 1/4" GRO? /ET (87830009595) 7157 RON
11 1 1 CHECK VALVE 3/4"X1/2" ET (87831182592) 18341 RON
12 1 1 7230052047 - Indisponibil
13 1 1 7853185960 - Indisponibil
21 1 1 7057182568 - Indisponibil
22 1 1 7270167076 - Indisponibil
24 1 1 SERRATED EDGE WASHER ZA 15 ET (86403156777) 446 RON
30 1 1 6109079322 - Indisponibil
1003 1 1 CYLINDER HEAD ET (81319155925) 34448 RON
1004 1 1 1315164814 - Indisponibil
1005 1 1 HOUSING LID ET (81310157119) 18341 RON
1006 1 1 1319155933 - Indisponibil
1012 1 1 PISTON RD 60 ET (81319163766) 2848 RON
1014 1 1 GUDGEON PIN RD 15X50 ET (81315163885) 11519 RON
1015 1 1 6401627241 - Indisponibil
1016 1 1 PISTON RING RD 60X2 ET (81319164100) 13756 RON
1017 1 1 PISTON RING RD 60X2 ET (81319164118) 15993 RON
1018 1 1 OIL WIPING RING RD 60X3 ET (81319164126) 18341 RON
1023 1 1 AIR FILTER ET (87825155982) 11519 RON
1024 1 1 1310157003 - Indisponibil
1026 1 1 BEARING CAP, PINION END ET (81319157049) 7157 RON
1029 1 1 FLYWHEEL RD 280 ET (81319155828) 59166 RON
1030 1 1 7100165877 - Indisponibil
1031 1 1 DEEP GROOVE BALL BEARING 25X52X15 6205 (87100157076) 18341 RON
1032 1 1 OIL SIGHT GLASS 1/2" ET (81319155860) 488 RON
1033 1 1 CRANKCASE BREATHER 3/8" ET (81319155887) 955 RON
1034 1 1 ROTARY SHAFT SEAL ET (87635157067) 5479 RON
1035 1 1 Cap screw (86121000839) Indisponibil Indisponibil
1036 1 1 WASHER 8,5X30X5 ET (81315166400) 3018 RON
1060 1 1 PACKING, HOUSING LID ET (81319624380) 10288 RON
1061 1 1 CYLINDER FOOT GASKET ET (81319161968) 488 RON
1062 1 1 CYLINDER GASKET ET (81319155968) 8275 RON
1063 1 1 PACKING, VALVE PLATE ET (81319155941) 19236 RON
1064 1 1 CYLINDER HEAD GASKET ET (81319155976) 10288 RON
1065 1 1 1319157022 - Indisponibil
1066 1 1 PACKING, PRESSURE LINE (81319157014) 4249 RON
2003 1 1 FLAP VALVE ET (81319155810) 3018 RON
2004 1 1 FRICTION SPRING ET (87052161805) 781 RON
2005 1 1 PARALLEL PIN 2,5X7 ET (86500161815) 446 RON
2006 1 1 AIR FILTER ELEMENT ET (87825166470) 5926 RON
2009 1 1 HEXAGON SOCKET HEAD CAP SCREW (86121000731) 446 RON
2010 1 1 Cap screw (86121023081) 446 RON
2011 1 1 HEXAGON SOCKET HEAD CAP SCREW M 8X16 VER (86121000790) 446 RON
2012 1 1 HEXAGON SOCKET HEAD CAP SCREW M 8X45 VER (86121166605) 446 RON
2013 1 1 HEXAGON HEAD SCREW M 8X20 VERZ. (86103001186) 446 RON
2014 1 1 RAISED CHEESE HEAD SCREW (86123002049) 446 RON
2015 1 1 PACKING RING RD 8,4 ET (87631166576) 781 RON
2016 1 1 1311166561 - Indisponibil
2022 1 1 1319166420 - Indisponibil
2023 1 1 1319166340 - Indisponibil
7000 1 1 GASKET KIT ET (81319155950) 39481 RON
