P 3000 G - 0250300042 10 - EU 230V
[0250300042 10]
P 3000 G - 0250300042 10 - EU 230V
Click pentru a mari
Imagini suplimentare
P 3000 G - 0250300042 10 - EU 230V
Click pentru a mari

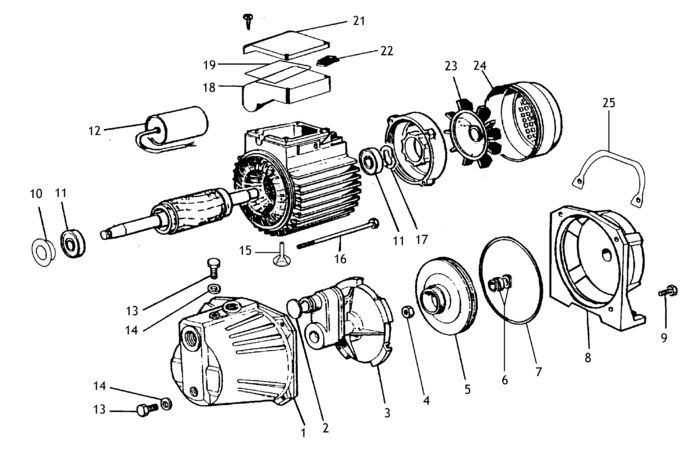

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 PUMP CASING P3000G (81340700119) 18341 RON
2 1 1 O-RING 26X2,2 P3000G (87632700126) 781 RON
3 1 1 VENTURI DIFFUSOR P3000G (81349700138) 955 RON
5 1 1 IMPELLER 130/39/DH=3,7mm ET (1349700146) 7157 RON
6 1 1 DUOCONE SEAL P3000G (1349700154) 4249 RON
7 1 1 O-RING 165X3,5 ET (7632149217) 105 RON
8 1 1 MOTOR BASE P3000G (81349700162) 13756 RON
9 1 4 HEXAGON HEAD SCREW M 8X30 VERZ. (86103031271) 446 RON
10 1 1 SPLASH RING P3000G (81349700235) 669 RON
11 1 2 DEEP GROOVE BALL BEARING 15X35X11 6202-2 (87100067433) 3689 RON
12 1 1 CAPACITOR 16?F 450V KABEL160L. P3000G (88050700225) 4249 RON
13 1 2 THREADED PLUG ?13 SW17 P3000G (86109700280) 3018 RON
14 1 2 O-RING 12X2 P3000G (87632700274) 669 RON
15 1 1 SUPPORT FOOT M 8X25 P3000G (81349700260) 190 RON
16 1 3 MOTOR TIE ROD M5X136 P3000G (81349700197) 669 RON
17 1 1 SPACER WASHER RD 35 ET (81349148893) 781 RON
18 1 1 TERMINAL BOX P3000G (81349700200) 1340 RON
19 1 1 O-RING 142,1X1,78 70 SHORE (87632619159) 781 RON
21 1 1 LID, TERMINAL BOX P3000G (81349700219) 105 RON
22 1 1 SWITCH ON/OFF 4-FLACHSTECKER P3000G (88112700243) 2124 RON
23 1 1 COOLING FAN P3000G (81341700180) 781 RON
24 1 1 FAN COVER P3000G (81342700175) 2124 RON
25 1 1 CARRYING HANDLE P3000G (81349700316) 2124 RON
