Top » Piese de schimb » PIESE METABO » 0250300000 11

P 3000 K - 0250300000 11 - EU 230V
[0250300000 11]
P 3000 K - 0250300000 11 - EU 230V
Click pentru a mari
Imagini suplimentare
P 3000 K - 0250300000 11 - EU 230V
Click pentru a mari

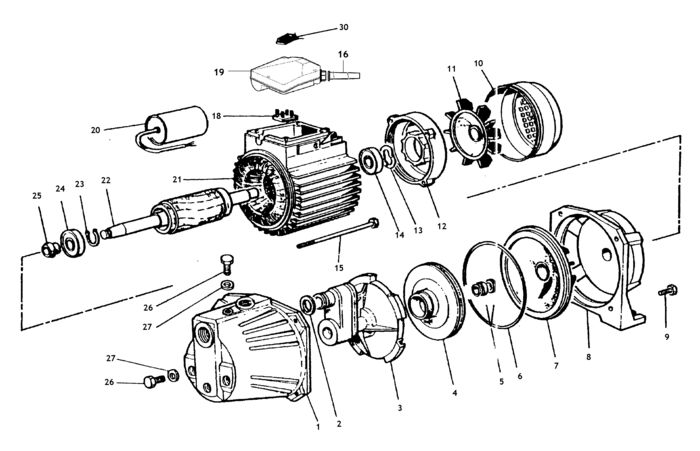

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 1340185621 - Indisponibil
2 1 1 GASKET 28X38X5 ET (87631185694) 781 RON
3 1 1 VENTURI DIFFUSOR ET (81349102419) 19236 RON
4 1 1 IMPELLER ET (81349102435) 13756 RON
5 1 1 DUOCONE SEAL (4SCHR) /ET (81349131559) 7157 RON
6 1 1 O-RING 165X3,5 ET (7632149217) 105 RON
7 1 1 CAP, MOTOR BASE ET (81349149407) 5479 RON
8 1 1 1349628747 - Indisponibil
9 1 4 HEXAGON HEAD SCREW M 8X20 VERZ. (86103001186) 446 RON
10 1 1 FAN COVER 125X5 ET (81342185645) 2459 RON
11 1 1 COOLING FAN RD 109 BOHRG. RD 12 ET (81341185650) 105 RON
12 1 1 BEARING CAP RD 95 MM ET (81345185638) 5479 RON
13 1 1 BALL BEARING SHIM RING 31,7X26,5X0,4 (87140086759) 781 RON
14 1 1 DEEP GROOVE BALL BEARING (cod vechi 7100083463 ) (143115730) 2459 RON
15 1 4 MOTOR TIE ROD M 5X132 ET (81349148850) 446 RON
16 1 1 SLEEVE, CABLE SUPPORT TYP 15-561 (81341016980) 781 RON
18 1 1 TERMINAL BOARD ET (81349148915) 2459 RON
19 1 1 TERMINAL BOX, WITH LID ET (81341186796) 7157 RON
20 1 1 CAPACITOR 12,5uF/450V/P2/IP44 ET (88050102468) 10288 RON
21 1 1 1349185667 - Indisponibil
22 1 1 ARMATURE ET (81345185670) 30980 RON
23 1 1 RETAINING RING ET (86403149070) 446 RON
24 1 1 DEEP GROOVE BALL BEARING (87100136915) Indisponibil Indisponibil
25 1 1 SPLASH RING ET (81349148818) Indisponibil Indisponibil
26 1 2 THREADED PLUG 1/4" ET (86109149193) 105 RON
27 1 2 GASKET, THREADED PLUG 1/4" ET (81349149202) 446 RON
30 1 1 Switch On/Of (88112148966) 5926 RON
