Top » Piese de schimb » PIESE METABO » 0113030000 10

HC 300 W - 0113030000 10 - EU 230V
[0113030000 10]
HC 300 W - 0113030000 10 - EU 230V
Click pentru a mari
Imagini suplimentare
HC 300 W - 0113030000 10 - EU 230V
Click pentru a mari
HC 300 W - 0113030000 10 - EU 230V
Click pentru a mari
HC 300 W - 0113030000 10 - EU 230V
Click pentru a mari
HC 300 W - 0113030000 10 - EU 230V
Click pentru a mari

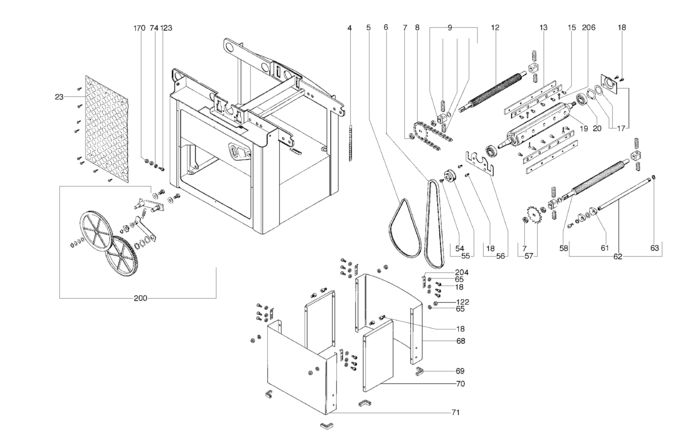

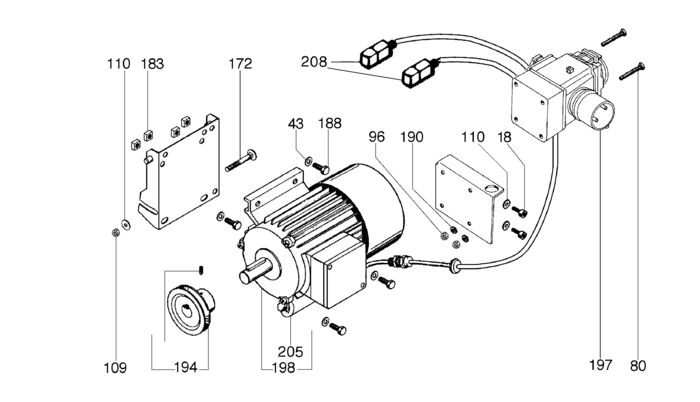

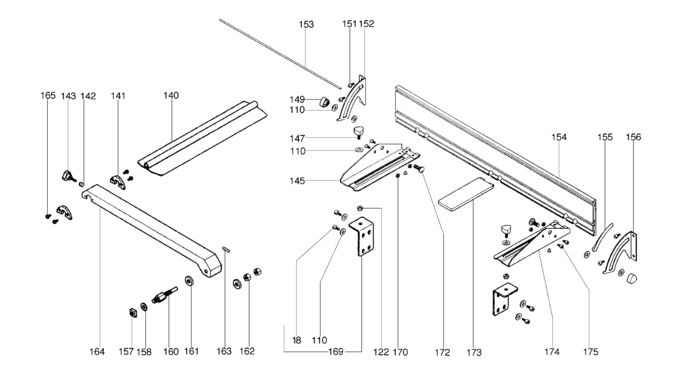

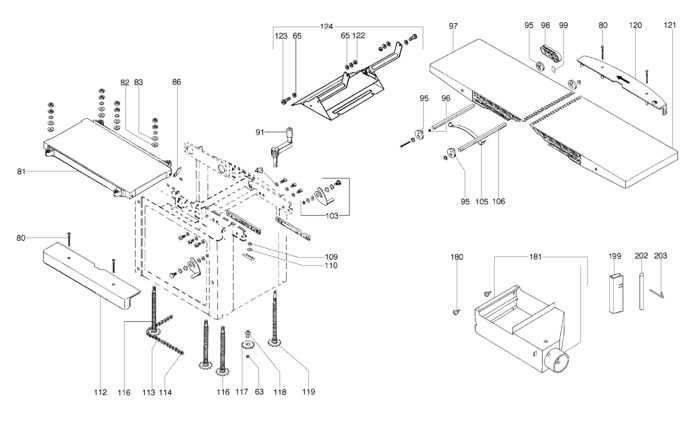

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
4 1 1 SCAL HC300 (81142702327) 1340 RON
5 1 1 V-BELT 6/Yx640L HC300 (87230702335) 2848 RON
6 1 1 V-BELT 10/Zx830L HC300 (87230702343) 33553 RON
7 1 2 HEXAGON THIN NUT (86205088367) 446 RON
8 1 1 ROLLER CHAIN 52 GLIEDER HC300 (87236702353) 46975 RON
9 1 4 Lagerbruecke HC300 (81011702364) 5479 RON
12 1 1 INFEED ROLLER HC 300 (81385702376) 19236 RON
13 1 1 CUTTERBLOCK WEDGE II SATZ (2ST?CK) HC300 (81482702380) 8275 RON
15 1 10 Cap screw (86127059185) 446 RON
17 1 1 BEARING FLANGE HC300 (81011702399) 190 RON
18 1 26 HEXAGON SOCKET HEAD CAP SCREW (86121000731) 446 RON
19 1 1 CUTTERBLOCK HC300 (81385702406) 197187 RON
20 1 2 Ball bearing (87100010164) 4249 RON
23 1 1 1382702413 - Indisponibil
43 1 12 Washer (86300016322) Indisponibil Indisponibil
54 1 1 Countersunk screw (86132087995) Indisponibil Indisponibil
55 1 1 V-BELT PULLEY HC300 (87240702422) 13756 RON
56 1 1 LOCKING PLATE HC300 (81382702430) 488 RON
57 1 2 CHAIN SPROCKET HC300 (87246702440) 5926 RON
58 1 1 OUTFEED ROLLER HC300 (81385702457) 19236 RON
61 1 26 RECOIL LOCK HC300 (81482702461) 3018 RON
62 1 1 AXLE HC300 (81485702470) 19236 RON
63 1 3 RETAINING RING FOR SHAFTS (86400009935) 446 RON
65 1 15 Washer Washer cod vechi 86300016365 (141151940) 446 RON
68 1 1 1382702480 - Indisponibil
69 1 1 Sockelfuesse-Satz HC300 (81011702496) 13756 RON
70 1 2 1382702502 - Indisponibil
71 1 1 SIDE PANEL HC300 (81382702510) 3018 RON
74 1 1 Serrated lock washer (86304084047) 446 RON
80 1 6 RAISED CHEESE HEAD SCREW M 5X65 VERZ. TK (86123695427) 669 RON
81 1 1 THICKNESSER BED HC300 (81380702521) 127394 RON
82 1 4 1388702539 - Indisponibil
83 1 4 Washer (86300016705) Indisponibil Indisponibil
86 1 1 POINTER HC300 (81388702547) 488 RON
91 1 1 81011702550 - Indisponibil
95 1 4 CAM PLATE HC300 (81382702561) 5926 RON
96 1 3 HEXAGON NUT, PREV. TORQUE TYPE (86202002283) 446 RON
97 1 1 JOINTING TABLE HC300 (81380702572) 117663 RON
98 1 1 Handle feed adjust (87005702580) 21361 RON
99 1 1 1142702599 - Indisponibil
103 1 2 CAM PLATE ASSEMBLY HC300 (81011702607) 18341 RON
105 1 1 7052702610 - Indisponibil
106 1 2 CAM BOLT HC300 (81385702627) 3018 RON
109 1 2 HEXAGON NUT (86200002235) Indisponibil Indisponibil
110 1 12 Washer (86305002486) 446 RON
112 1 1 COVER HC300 (81381702630) 15993 RON
113 1 1 ROLLER CHAIN 129 GLIEDER M.SCHLO? HC300 (87236702647) 2848 RON
114 1 1 ROLLENKETTENSCHLOSS (87236702655) 488 RON
116 1 3 SPINDLE HC300 (81485702667) 24046 RON
117 1 1 CHAIN SPROCKET HC300 (87246702670) 10288 RON
118 1 1 TENSION BOLT HC300 (81485702683) 8275 RON
119 1 1 SPINDLE HC300 (81485702691) 18341 RON
120 1 1 COVER HC300 (81381702703) 13756 RON
121 1 1 JOINTING TABLE HC300 (81380702718) 117663 RON
122 1 8 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
123 1 3 HEXAGON SOCKET HEAD CAP SCREW M 6X20 VER (86121000758) 446 RON
124 1 1 CHIP EJECTION HOOD HC300 (81011702720) 49212 RON
140 1 1 GLIDE PROFILE HC300 (81383702735) 33553 RON
141 1 2 BUSHING HC300 (81381702746) 5926 RON
142 1 1 CAP HC300 (81388702750) 781 RON
143 1 1 KNURLED THUMB SCREW M 6X25 VERZ. (86143071144) 781 RON
145 1 1 1382702766 - Indisponibil
147 1 2 STARKNOB SCREW M 8X23 (DIN 933) VERZINKT (87001144191) 105 RON
149 1 2 STARKNOB NUT (87000017730) 781 RON
151 1 4 RAISED CHEESE HEAD SCREW M 6X16 VERZ. (86123153659) 446 RON
152 1 1 GUIDE PLATE HC300 (81382702774) 19236 RON
153 1 1 1388702784 - Indisponibil
154 1 1 FENCE HC300 (81383702794) 78180 RON
155 1 1 1142702807 - Indisponibil
156 1 1 GUIDE PLATE HC300 (81382702812) 19236 RON
157 1 1 HEXAGON THIN NUT (86205084779) 446 RON
158 1 1 MEDIUM WASHER (86300016349) 446 RON
160 1 1 BEARING SHAFT HC300 (81385702821) 33553 RON
161 1 2 CUP SPRING (87053010088) 446 RON
162 1 2 HEXAGON NUT M 10 VERZ. (86200002251) 446 RON
163 1 1 PRESSURE SPRING HC300 (87051702837) 2459 RON
164 1 1 LEVER, BLADE TILT HC300 (81382702847) 33553 RON
165 1 4 Fillister head screw (86172028215) 446 RON
169 1 2 FENCE BRACKET HC300 (81011702852) 13756 RON
170 1 6 Hex nut (86200002219) 446 RON
172 1 3 Truss head screw (86110017942) 446 RON
173 1 1 COVER PLATE HC300 (81382702863) 7157 RON
174 1 1 1382702871 - Indisponibil
180 1 2 KNURLED THUMB SCREW, THIN TYPE M 5X16 VE (87009120054) 105 RON
181 1 1 DUST CHUTE HC300 (81011702887) 73930 RON
183 1 4 SQUARE NUT (86218005126) 446 RON
188 1 4 HEXAGON HEAD SCREW M 8X25 VERZ. (86103001194) 446 RON
190 1 2 Washer (86300016357) 446 RON
194 1 1 AXLE HC300 (81388702890) 24046 RON
197 1 1 SWITCH SSK UC230V HC300 (88131702907) 14839 RON
198 1 1 MOTOR, PLANER/THICKNESSER HC 230V HC300 (81011702925) 343820 RON
199 1 1 1382699986 - Indisponibil
200 1 1 POWER FEED ATTACHMENT HC300 (81011702950) 59166 RON
202 1 1 1385702961 - Indisponibil
203 1 1 ALLEN HEXAGON KEY (89102016766) 781 RON
204 1 4 1388702970 - Indisponibil
205 1 1 CAPACITOR 40uF/450V ET (88050683819) 15993 RON
206 1 4 SLOTTED CHEESE HEAD SCREW M 4X25 VERZ. (86120025196) 446 RON
208 1 2 LIMIT SWITC 250VAC 10A (88116098270) 19236 RON
