Top » Piese de schimb » PIESE METABO » 0102900018 12

UK 290 - 0102900018 12 - CH 230V
[0102900018 12]
UK 290 - 0102900018 12 - CH 230V
Click pentru a mari
Imagini suplimentare
UK 290 - 0102900018 12 - CH 230V
Click pentru a mari
UK 290 - 0102900018 12 - CH 230V
Click pentru a mari
UK 290 - 0102900018 12 - CH 230V
Click pentru a mari
UK 290 - 0102900018 12 - CH 230V
Click pentru a mari

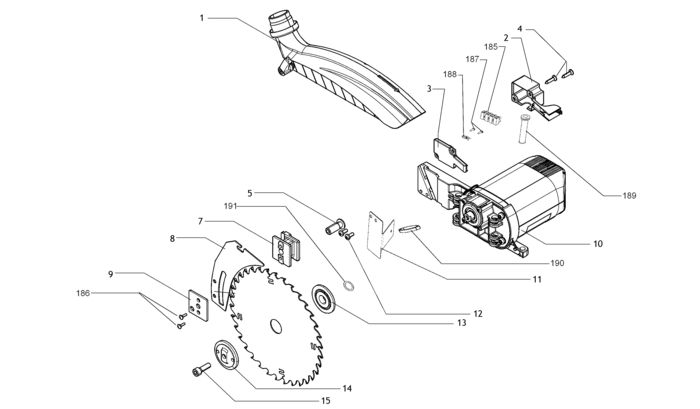

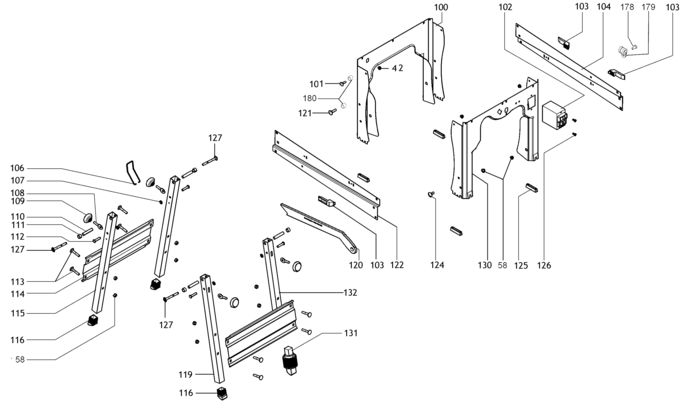

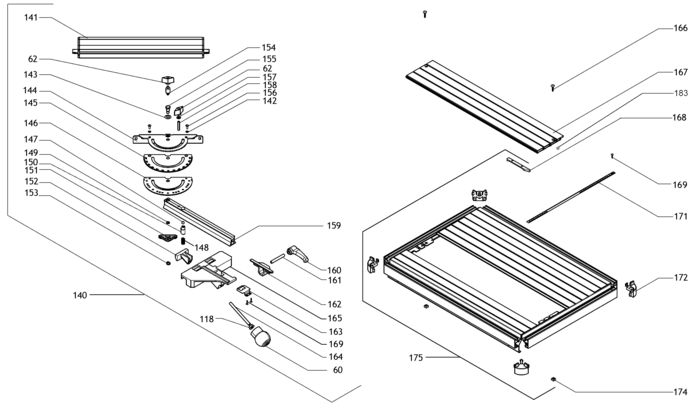

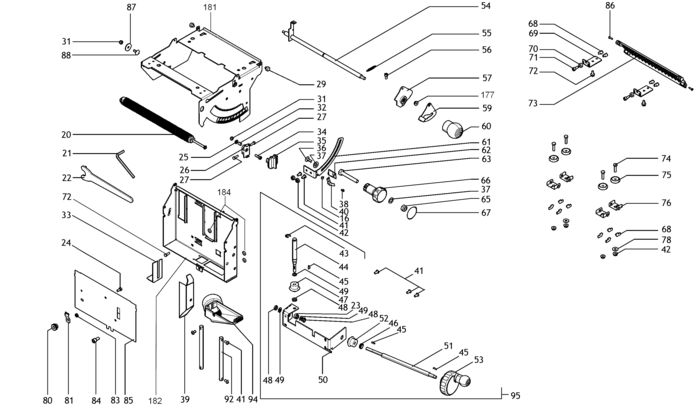

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SAW BLADE GUARD WITH SUCTION PORT (81010698878) 19236 RON
2 1 1 LID, TERMINAL BOX MOTOR AM21 (81331700076) 781 RON
3 1 1 TERMINAL BOX MOTOR AM21 (81331700068) 1564 RON
4 1 2 RAISED CHEESE HEAD SCREW (86123612815) 446 RON
5 1 1 POSITIONING SCREW (81485221570) 1564 RON
6 1 1 STEEL BALL RD 7,938 (87123148635) 446 RON
7 1 1 RIVING KNIFE CARRIER UK290 (81380728555) 8275 RON
8 1 1 RIVING KNIFE (81482221587) 8275 RON
9 1 1 RIVING KIFE PLATE (81482221595) 781 RON
10 1 1 ELECTRIC MOTOR (88012728930) 197187 RON
11 1 1 COVER (81382725634) 3018 RON
12 1 2 Countersunk screw (86132175169) 446 RON
13 1 1 Blade collar, inner (81485221618) Indisponibil Indisponibil
14 1 1 BLADE COLLAR, OUTER (81482221900) Indisponibil Indisponibil
15 1 1 Cap screw (86121000839) Indisponibil Indisponibil
16 1 1 FLANGE NUT (86209620098) 669 RON
20 1 1 SHOCK ABSORBER (81010728530) 13756 RON
21 1 1 ALLEN HEXAGON KEY (89102689833) 190 RON
22 1 1 PIN SPANNE MIT 5MM ZAPFEN (89104727252) 2459 RON
23 1 1 BUSHING (81485728542) 105 RON
24 1 1 Hex head screw (86103015675) 446 RON
25 1 1 CUP SPRING (87053081619) 446 RON
26 1 1 TILT STOP (81381726114) 669 RON
27 1 2 HEXAGON HEAD TAPPING SCREW (86171028084) 446 RON
29 1 2 PLUG-IN BUFFER (82391203906) 446 RON
31 1 3 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
32 1 1 SPACER SLEEVE (86442059304) 446 RON
33 1 1 SHEETMETAL PLAT (81382729397) 3018 RON
34 1 1 Hex head screw (86103001135) 446 RON
35 1 1 LID ASSEMBLY UK290 (81381726777) 105 RON
36 1 1 CUP SQUARE NECK SCREW (86110000608) Indisponibil Indisponibil
37 1 2 WASHER (86305002494) 446 RON
38 1 1 Fillister head screw (86123002014) 446 RON
39 1 1 CHIP GUIDE PLATE (81382729540) 5479 RON
40 1 1 ANGLE POINTER (81482701368) 3689 RON
41 1 8 Fillister head screw (86123666494) 446 RON
42 1 10 Flange nut (86209114230) 446 RON
43 1 2 RETAINING WASHER RD 8 VERZ. (86404091580) 446 RON
44 1 1 THREADED ROD (81485728429) 955 RON
45 1 3 WOODRUFF KEY (86720008511) 446 RON
46 1 1 SLIDE BUSHING (87637727561) 105 RON
47 1 1 1381099233 - Indisponibil
48 1 3 HEXAGON THIN NUT (86205726061) 446 RON
49 1 3 WASHER (86300686603) 446 RON
50 1 1 BRACKE (81382725677) 955 RON
52 1 1 CONICAL GEAR WHEEL (81380613626) 190 RON
53 1 1 HANDWHEEL ASSY. WITH RED KNOB (81010701704) 7157 RON
54 1 1 FEED ROD (81485725900) 7157 RON
55 1 1 TENSION SPRING (87051074232) 781 RON
56 1 1 Cap screw w.internal hexagon (86143075247) 781 RON
57 1 1 GLIDE PIECE (81381726939) 105 RON
58 1 16 Flange nut (6209110995) 446 RON
59 1 1 BOLT PLAT (81482725925) 4249 RON
60 1 2 KNOB, RED (81388698264) Indisponibil Indisponibil
61 1 1 Clamping plate (81482725690) 7157 RON
62 1 3 WING NUT (87005658068) 781 RON
63 1 1 HEXAGON SOCKET HEAD CAP SCREW (86127729555) 105 RON
65 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002313) 446 RON
66 1 1 HANDWHEEL, BLADE TILT (81381215330) 1564 RON
67 1 1 HANDWHEEL COVER (81381212846) 446 RON
68 1 12 FELT BRUSH UK290 (89132726768) 1340 RON
69 1 2 BEARING BRACKE (81482725810) 3018 RON
70 1 2 DEEP GROOVE BALL BEARING (87100726097) 105 RON
71 1 2 HEXAGON SOCKET HEAD CAP SCREW (86127059193) 446 RON
72 1 3 HEX. HEAD THREAD ROLLING SCREW (86143124744) 446 RON
73 1 1 SWIVEL PLATE (81381726106) 1564 RON
74 1 4 HEXAGON HEAD SCREW (86103001143) 446 RON
75 1 4 ROLLER D30X13,5 KUGELGELAGERT (87102726078) 7157 RON
76 1 4 PVC ROLLER COVER (81381726084) 488 RON
78 1 12 Washer (86305002087) 446 RON
80 1 1 Knurled nut (86241125058) 781 RON
81 1 1 CABLE CLIP (87052078118) 446 RON
83 1 1 HEXAGON THIN NUT (86205028046) 446 RON
84 1 1 HEXAGON SOCKET HEAD CAP SCREW (86143729816) 446 RON
85 1 1 COVER, SAW BLADE HOUSING (81382725839) 4249 RON
86 1 2 COUNTERSUNK HEAD TAPPING SCREW (86174001900) Indisponibil Indisponibil
87 1 1 WASHER (86305713714) 669 RON
88 1 1 CUP SQUARE NECK SCREW (86110000594) 446 RON
92 1 2 Guide (81385221491) 5926 RON
94 1 1 DUST EXTRACTION PORT UK333 (81381701324) 3018 RON
95 1 1 HEIGHT ADJUSTMEN (81010729358) 49212 RON
100 1 1 REAR PANEL (81382725898) 26730 RON
101 1 4 Fillister head screw w.flange (86143661561) 446 RON
102 1 1 KSK-Schalter WN (88133729527) 3698 RON
103 1 3 CABLE BRACKET UK290/333 (81381706881) 669 RON
104 1 1 SIDE-PANE BL 2,00X107X610 UK290 (81382728463) 15993 RON
106 1 1 RETAINING CLIP UK290 (81382726185) 2459 RON
107 1 4 STARLOCK WITHOUT CAP (87016056183) 446 RON
108 1 4 EYE BOLT (86141701671) 105 RON
109 1 4 STARKNOB NUT (87000017730) 781 RON
110 1 4 BUSHING (81485700877) 190 RON
111 1 4 BUSHING (81485700850) 1340 RON
112 1 4 BOLT A (86632123360) 105 RON
113 1 8 Truss head screw (86110015990) 446 RON
114 1 2 CROSSHEAD (81382726037) 8275 RON
115 1 2 LEG (81383726014) 13756 RON
116 1 3 FOOT (81381726173) 1340 RON
119 1 1 LEG (81383725972) 13756 RON
120 1 1 Push stick (81394201630) 3018 RON
121 1 2 CHEESE HEAD SCREW (86143726140) 669 RON
122 1 1 SIDE-PANE (81382728455) 15993 RON
124 1 2 CHEESE HEAD SCREW (86143726132) 669 RON
125 1 4 RUBBER FOOT 57,3X13,4X14 SCHWARZ (87057706400) 781 RON
126 1 6 Fillister head screw w.fill. head screw (86186602763) 446 RON
127 1 4 CHEESE HEAD SCREW (86143726159) 105 RON
130 1 1 FRONT PANEL (81382725863) 24046 RON
131 1 1 ADJUSTABLE FOOT ASSEMBLY VERSTELLBAR (82010200787) 7157 RON
132 1 1 LEG (81383725999) 13756 RON
140 1 1 UNIVERSAL FENCE (81010727355) 88582 RON
141 1 1 FENCE GUIDE EXTRUSIO (81010720490) 955 RON
142 1 2 Washer (86300016357) 446 RON
143 1 1 CUP SPRING (87053010088) 446 RON
144 1 1 ANGLE BRACKE (81382727343) 11519 RON
145 1 1 ANGLE SCALE (81142216716) 488 RON
146 1 1 SHIM PLATE (81482643350) 13756 RON
148 1 1 PRESSURE SPRING, MITRE FENCE (87051148694) 446 RON
149 1 1 GLIDE PIECE (82391202772) 446 RON
150 1 1 LOCK BOLT (81485215979) 1564 RON
151 1 1 CLAMPING PAD UK333 (81381698285) 781 RON
152 1 1 LOCK PLATE (81380215981) 3018 RON
153 1 1 STARLOCK (87016122305) 446 RON
154 1 1 Eccentric bolt (81485727325) 3689 RON
155 1 1 COLLAR SCREW (81485209480) 105 RON
156 1 2 THREAD CUTTING SCREW A (86175174166) 446 RON
157 1 2 Washer (86305002087) 446 RON
158 1 1 HEX. SOCKET SET SCREW, FLAT PT (86161183502) 446 RON
159 1 1 DOVETAIL GUIDE (81383221990) 11519 RON
160 1 1 RATCHET LOCK LEVER, FEMALE (87006028653) Indisponibil Indisponibil
161 1 1 HEX. SOCKET SET SCREW, FLAT PT (86161029120) 781 RON
162 1 1 CLAMPING LEVER (81380216031) 3689 RON
163 1 1 POINTER, MITRE FENCE (81482216010) 781 RON
164 1 1 HEX. SOCKET SET SCREW, DOG PT. (86163198736) 1564 RON
165 1 1 CLAMPING PAD UK333 (81380701983) 24046 RON
166 1 2 HEX.SOCKET COUNTERS.HEAD SCREW (86131714953) 669 RON
167 1 1 EXTRUSION, REMOV.TABLE SECTION (81383726049) 30980 RON
168 1 1 Endstueck (81381728443) 1340 RON
169 1 3 Fillister head screw (86172028215) 446 RON
171 1 1 ADHESIVE LABEL YELLOW/BLACK (81142725793) 2459 RON
172 1 4 CORNER BRACKE (81010710835) 11519 RON
174 1 2 CAGE NUT (86264714948) 781 RON
175 1 1 TABLE ASSEMBLY (81010725735) 117663 RON
177 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002283) 446 RON
178 1 1 RAISED CHEESE HEAD SCREW (86123002049) 446 RON
179 1 1 FASTENING CLAMP (81381655616) 105 RON
180 1 2 BUSHING (81485700885) 105 RON
181 1 1 Laufwagen (81382725723) 33553 RON
182 1 1 SAW BLADE HOUSING (81482725658) 21361 RON
183 1 2 O-ring (87632194654) 446 RON
184 1 4 Washer Washer cod vechi 86300016365 (141151940) 446 RON
185 1 1 TERMINAL BLOCK 1,5 mm? Nr.134S / VDE (88216628625) 781 RON
186 1 2 CROSS RECESSED FLAT HEAD SCREW (86131059530) 446 RON
187 1 2 Fillister head screw (86172100099) 446 RON
188 1 1 STRAIN RELIEF (88242033664) 446 RON
189 1 1 SLEEVE, CABLE SUPPORT TYP 15-561 (81341016980) 781 RON
190 1 1 CABLE TI 2,5X80 SCHWARZ (88490108506) 446 RON
191 1 1 SHIM RING 16X22X0,2 VERZ. (86306670482) 446 RON
