Top » Piese de schimb » PIESE METABO » 0010026024 10

LP 260/10/40 D - 0010026024 10 - 3 / 400V/50Hz
[0010026024 10]
LP 260/10/40 D - 0010026024 10 - 3 / 400V/50Hz
Click pentru a mari
Imagini suplimentare
LP 260/10/40 D - 0010026024 10 - 3 / 400V/50Hz
Click pentru a mari
LP 260/10/40 D - 0010026024 10 - 3 / 400V/50Hz
Click pentru a mari

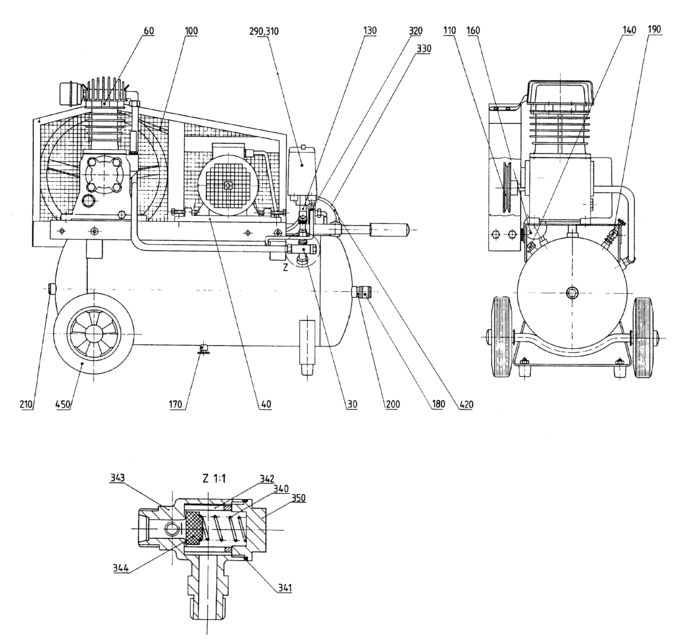

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
30 1 1 CHECK VALVE, ELBOW TYPE R 1/2"X RD15 ET (81001014290) 21361 RON
60 1 1 1313107503 - Indisponibil
100 1 1 V-BELT 13X1150 LI (87230013319) 5926 RON
110 1 1 V-BELT PULLEY SPA DW 140X1 BOHRUNG 20 NU (87240125123) 26730 RON
130 1 1 PIPE NIPPLE 1/2"X80 VERZINKT ENTFETTET (87812025613) 190 RON
160 1 1 7823042331 - Indisponibil
170 1 1 DRAIN VALVE R 1/4" GRO? /ET (87830009595) 7157 RON
180 1 1 7802009105 - Indisponibil
190 1 1 SAFETY VALVE R 1/4" 10 BAR (87833009600) 19236 RON
210 1 1 6109079322 - Indisponibil
290 1 1 AUTOM. PRESSURE CONTROL SWITCH 7-11 BAR (88101037780) 34448 RON
340 1 1 PRESSURE SPRING RD 1XDM 15X40 ROSTFREI (87051052638) 446 RON
341 1 1 7631057092 - Indisponibil
342 1 1 CAGE RD 27,5X26 (81311052310) 105 RON
343 1 1 VALVE BODY R 1/2" AG X RD 15 E-ANSCHLU? (81310052309) 18341 RON
344 1 1 1311052620 - Indisponibil
350 1 1 THREADED PLUG C M30X1,5 (86109055202) 8275 RON
420 1 1 CABLE, RUBBER JACKET,WITH PLUG A=CEE16A (88402127911) 18341 RON
450 1 1 WHEEL, SOLID RUBBER RD 200/50 NABE 20X58 (87270026596) 5926 RON
1003 1 1 CYLINDER HEAD ET (81319155925) 34448 RON
1004 1 1 1315164814 - Indisponibil
1005 1 1 HOUSING LID ET (81310157119) 18341 RON
1006 1 1 1319155933 - Indisponibil
1012 1 1 PISTON RD 60 ET (81319163766) 2848 RON
1014 1 1 GUDGEON PIN RD 15X50 ET (81315163885) 11519 RON
1015 1 1 6401627241 - Indisponibil
1016 1 1 PISTON RING RD 60X2 ET (81319164100) 13756 RON
1017 1 1 PISTON RING RD 60X2 ET (81319164118) 15993 RON
1018 1 1 OIL WIPING RING RD 60X3 ET (81319164126) 18341 RON
1023 1 1 AIR FILTER ET (87825155982) 11519 RON
1024 1 1 1310157003 - Indisponibil
1026 1 1 BEARING CAP, PINION END ET (81319157049) 7157 RON
1029 1 1 FLYWHEEL RD 280 ET (81319155828) 59166 RON
1030 1 1 7100165877 - Indisponibil
1031 1 1 DEEP GROOVE BALL BEARING 25X52X15 6205 (87100157076) 18341 RON
1032 1 1 OIL SIGHT GLASS 1/2" ET (81319155860) 488 RON
1033 1 1 CRANKCASE BREATHER 3/8" ET (81319155887) 955 RON
1034 1 1 ROTARY SHAFT SEAL ET (87635157067) 5479 RON
1035 1 1 Cap screw (86121000839) Indisponibil Indisponibil
1036 1 1 WASHER 8,5X30X5 ET (81315166400) 3018 RON
1060 1 1 PACKING, HOUSING LID ET (81319624380) 10288 RON
1061 1 1 CYLINDER FOOT GASKET ET (81319161968) 488 RON
1062 1 1 CYLINDER GASKET ET (81319155968) 8275 RON
1063 1 1 PACKING, VALVE PLATE ET (81319155941) 19236 RON
1064 1 1 CYLINDER HEAD GASKET ET (81319155976) 10288 RON
1065 1 1 1319157022 - Indisponibil
1066 1 1 PACKING, PRESSURE LINE (81319157014) 4249 RON
2003 1 1 FLAP VALVE ET (81319155810) 3018 RON
2004 1 1 FRICTION SPRING ET (87052161805) 781 RON
2005 1 1 PARALLEL PIN 2,5X7 ET (86500161815) 446 RON
2006 1 1 AIR FILTER ELEMENT ET (87825166470) 5926 RON
2009 1 1 HEXAGON SOCKET HEAD CAP SCREW (86121000731) 446 RON
2010 1 1 Cap screw (86121023081) 446 RON
2011 1 1 HEXAGON SOCKET HEAD CAP SCREW M 8X16 VER (86121000790) 446 RON
2012 1 1 HEXAGON SOCKET HEAD CAP SCREW M 8X45 VER (86121166605) 446 RON
2013 1 1 HEXAGON HEAD SCREW M 8X20 VERZ. (86103001186) 446 RON
2014 1 1 RAISED CHEESE HEAD SCREW (86123002049) 446 RON
2015 1 1 PACKING RING RD 8,4 ET (87631166576) 781 RON
2016 1 1 1311166561 - Indisponibil
2020 1 1 1319166374 - Indisponibil
2022 1 1 1319166420 - Indisponibil
2023 1 1 1319166340 - Indisponibil
7000 1 1 GASKET KIT ET (81319155950) 39481 RON
