Top » Piese de schimb » PIESE METABO » 0112026118 10

HC 260 K/2,20 WNB - 0112026118 10 - GB 230V
[0112026118 10]
HC 260 K/2,20 WNB - 0112026118 10 - GB 230V
Click pentru a mari
Imagini suplimentare
HC 260 K/2,20 WNB - 0112026118 10 - GB 230V
Click pentru a mari
HC 260 K/2,20 WNB - 0112026118 10 - GB 230V
Click pentru a mari
HC 260 K/2,20 WNB - 0112026118 10 - GB 230V
Click pentru a mari
HC 260 K/2,20 WNB - 0112026118 10 - GB 230V
Click pentru a mari

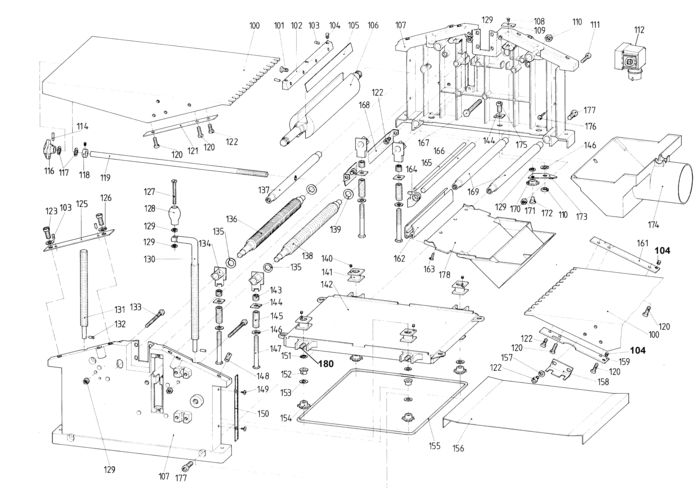

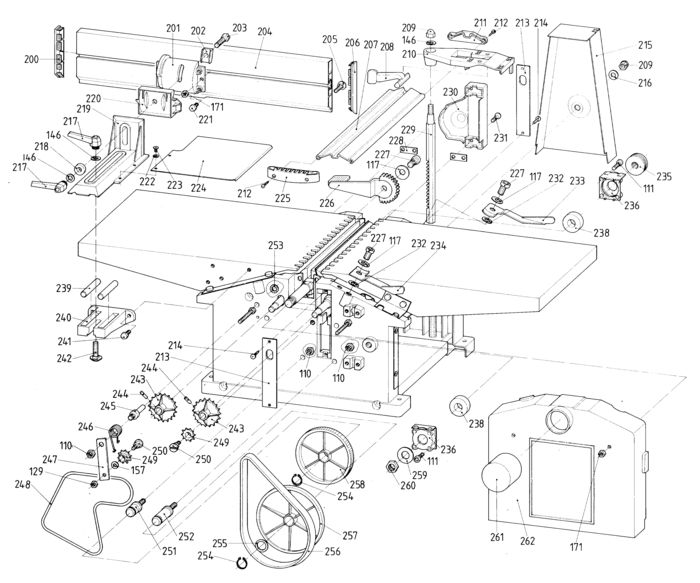

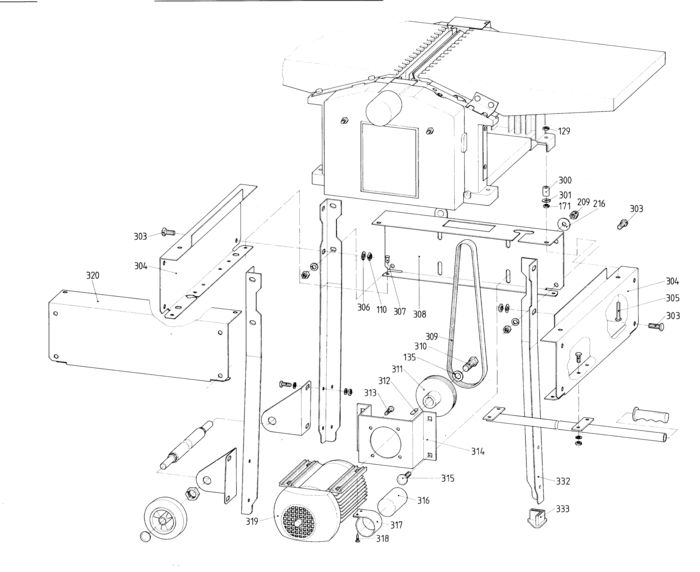

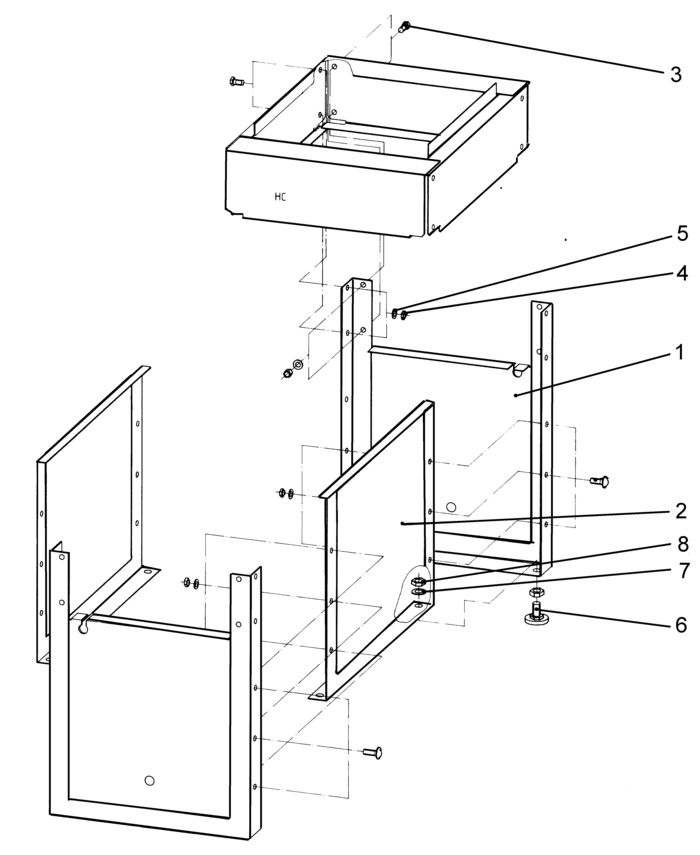

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SIDE PANEL BL 2X545X573 (81382212580) 19236 RON
2 1 1 FRONT+REAR PART BL 2X424X441 (81382212599) 19236 RON
3 1 1 CUP SQUARE NECK SCREW M 8X16 VERZ. (86110000632) 446 RON
4 1 1 HEXAGON NUT (86200002235) Indisponibil Indisponibil
5 1 1 Serrated lock washer (86304001745) 446 RON
6 1 1 ADJUSTING FOOT RD 50 / M 10X35 SCHWARZ (87057111385) 4249 RON
7 1 1 MEDIUM WASHER (86300016349) 446 RON
8 1 1 HEXAGON NUT M 10 VERZ. (86200002251) 446 RON
100 1 1 JOINTING TABLE 286,6X525 GEH?RTET / M.BO (81390119468) 117663 RON
101 1 1 STRAINING SCREW M 6X11 SW10 (81485210365) 781 RON
102 1 1 CUTTERBLOCK WEDGE 1SATZ=2ST?CK (81011670594) Indisponibil Indisponibil
103 1 1 CLAMPING SLEEVE 5X10 MIT EINER FASE (86503029250) 446 RON
104 1 1 SET SCREW RESHARPENABLE BLADE M 6 NACH Z (86143043477) 781 RON
105 1 1 0911001039 - Indisponibil
106 1 1 CUTTERBLOCK RD 62,5X439 (81385212913) 73930 RON
107 1 1 SIDE PANEL NO. 3 (81380641000) 68673 RON
108 1 1 BLIND RIVET, MUSHROOM HEAD 5X15 F FLACHR (86621010415) 446 RON
109 1 1 RECTANGULAR WASHER FL 12X3X34 (81492020296) 446 RON
110 1 1 HEXAGON NUT (86200002235) Indisponibil Indisponibil
111 1 1 Cap screw (86121000766) 446 RON
112 1 1 SWITCH KSK WNB UC230V M=11A (GB) K400VB/ (88133198629) 117663 RON
114 1 1 Tightening pin (86503001681) 446 RON
116 1 1 PALM GRIP D=50 / BUCHSE 10 FORM C (87007069620) 3689 RON
117 1 1 CUP SPRING 23X10,2X0,9 (87053010100) Indisponibil Indisponibil
118 1 1 SHAFT COLLAR A 11 VERZ. (86410147244) 1340 RON
119 1 1 THREADED ROD M 10/60X470 (81395206555) 3018 RON
120 1 1 HEXAGON SOCKET HEAD CAP SCREW (86127059193) 446 RON
121 1 1 1492019700 - Indisponibil
122 1 1 Cap screw (86127059185) 446 RON
123 1 1 HEXAGON SOCKET HEAD CAP SCREW M 8X16 VER (86121000790) 446 RON
125 1 1 COVER STRIP FL 25X4X179 (81492019697) 1564 RON
126 1 1 Cup spring (87053016795) 446 RON
127 1 1 HEXAGON SOCKET HEAD CAP SCREW (86121112564) 446 RON
128 1 1 TURNING TANG (87004017433) 1340 RON
129 1 1 Hex nut (86200002219) 446 RON
130 1 1 THREADED ROD TR 14X3X365 VERL?NGERT (81495019302) 955 RON
131 1 1 THREADED ROD TR 14X3X229,5 KURZ (81395016578) 8275 RON
132 1 1 GROOVED DOWEL PIN 3X16 (86501007275) 446 RON
133 1 1 HEXAGON HEAD SCREW M 6X80 VERZ. (86103008717) 446 RON
134 1 1 GLIDE PIECE (81391006039) Indisponibil Indisponibil
135 1 1 Washer (86300016705) Indisponibil Indisponibil
136 1 1 1385193633 - Indisponibil
137 1 1 SPACER SHAFT W/TAPPED HOLE RD 20X295 M.G (81495019280) 10288 RON
138 1 1 INFEED ROLLER RD 25X360,5 GROB (81495019248) Indisponibil Indisponibil
139 1 1 SHIM RING 14X20X1 VERZ. (86306009832) 446 RON
140 1 1 HEX. SOCKET SET SCREW, FLAT PT M 5X5 (86161067090) 446 RON
141 1 1 CHECK NUT 30X30X22 TR 14X3 (81395016616) 4249 RON
142 1 1 THICKNESSER BED MIT EDELSTAHLAUFLAGE (81011018617) 68673 RON
143 1 1 SPREAD INSERT M 8X13 / A5 (86330017420) 105 RON
144 1 1 SHIM 22X22 MIT BOHRUNG 8,1 (81390008895) 781 RON
145 1 1 PRESSURE SPRING (87051005770) Indisponibil Indisponibil
146 1 1 Washer (86300016322) Indisponibil Indisponibil
147 1 1 HEXAGON HEAD SCREW M 8X80 VERZ. (86102001093) 446 RON
148 1 1 SLOTTED HEADLESS SCREW M 8X16 VERZ. (86160151542) 781 RON
149 1 1 86172123889 - Indisponibil
150 1 1 SCALE 0,60X16X170 0,00-17,00 CM (81141073024) 1564 RON
151 1 1 SHIM RING 8X14X1 VERZ. (86306017266) 446 RON
152 1 1 SPINDLE BUSHING RD 16X10 (81391029268) 446 RON
153 1 1 CUP SPRING (87053075104) 446 RON
154 1 1 7246017276 - Indisponibil
155 1 1 ROLLER CHAIN 210 GLIEDER 6 MM TEILUNG (87236011873) 18341 RON
156 1 1 COVER PLATE BL 2,00X259X415 (81392017620) 7157 RON
157 1 1 Washer Washer cod vechi 86300016365 (141151940) 446 RON
158 1 1 SETTING BRACKET BL 2,00X53X43 LINKS+RECH (81392017573) 781 RON
159 1 1 GUIDE STRIP, LEFT FL 20X4X193 LINKS (81492019794) 1564 RON
161 1 1 GUIDE STRIP, RIGHT FL 20X4X193 RECHTS (81492019719) 1564 RON
162 1 1 EXTRUSION, CHIP EJECTION HOOD 258 MM GES (81393086226) 3018 RON
163 1 1 86172015687 - Indisponibil
164 1 1 2390073596 - Indisponibil
165 1 1 RECOIL LOCK BAR RD 6X286 (81395017396) 781 RON
166 1 1 1395017388 - Indisponibil
167 1 1 HEXAGON HEAD SCREW M 8X80 VERZ. (86103030259) 446 RON
168 1 1 CHIP GUIDE PLATE BL 2,00X45X309,5 (81392017506) 190 RON
169 1 1 1495019272 - Indisponibil
170 1 1 CHAIN TENSIONING SPROCKET RD 32,4X95, Z= (87246017365) 1564 RON
171 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
172 1 1 THREADED BOLT RD 13X20 8h9 M 6 RUNDUMBE (81395017418) Indisponibil Indisponibil
173 1 1 CHAIN TENSION PLATE BL 2,5X25X76 (81392028591) Indisponibil Indisponibil
174 1 1 DUST EXTRACTION OUTLET (81391085141) 13756 RON
175 1 1 HEXAGON SOCKET HEAD CAP SCREW M 8X25 VER (86121000820) 446 RON
176 1 1 Fillister head screw (86172001830) 446 RON
177 1 1 HEXAGON SOCKET HEAD CAP SCREW M 8X25 VER (86121000820) 446 RON
178 1 1 CHIP EJECTION HOOD (81391085133) 13756 RON
180 1 1 7051685878 - Indisponibil
200 1 1 FENCE EXTRUSION END CAP RECHTS (81391028644) 105 RON
201 1 1 FENCE SEGMEN MIT SCHRAUBEN (82011007972) Indisponibil Indisponibil
202 1 1 GLIDE SEGMENT (81391030606) Indisponibil Indisponibil
203 1 1 HEXAGON HEAD SCREW M 8X50 VERZ. (86103001216) 446 RON
204 1 1 FENCE EXTRUSION 600 MM (81393006850) 21361 RON
205 1 1 CUP SQUARE NECK SCREW (86110000608) Indisponibil Indisponibil
206 1 1 FENCE EXTRUSION END CAP LINKS (81391028636) 105 RON
207 1 1 CUTTERBLOCK GUARD 358 MM (81393067280) 5926 RON
208 1 1 RATCHET LOCK LEVER (81391067240) 190 RON
209 1 1 CAP NUT M 8 VERZ. (86201002131) 446 RON
210 1 1 GUARD SUPPORT (81390067239) 8275 RON
211 1 1 GUARD EXTRUSION END CAP (81391067666) 781 RON
212 1 1 COUNTERSUNK HEAD TAPPING SCREW (86174001900) Indisponibil Indisponibil
213 1 1 SIDE PANEL LID BL 2X30X153 (81392086508) 781 RON
214 1 1 COUNTERSUNK HEAD TAPPING SCREW (86174001942) 446 RON
215 1 1 V-BELT GUARD 1,5X164,5X261,5X345 (81392065900) 10288 RON
216 1 1 Washer (86305002486) 446 RON
217 1 1 RATCHET LOCK LEVER, FEMALE (87006028653) Indisponibil Indisponibil
218 1 1 PLASTIC WASHER RD 20/RD 8 L=6 (81391040946) 781 RON
219 1 1 ANGLE BRACKET, FENC (82390008905) 15993 RON
220 1 1 GUIDE SEGMENT (81390028500) 3689 RON
221 1 1 HEXAGON HEAD SCREW M 6X10 VERZ.FLECKBESC (86103041013) 446 RON
222 1 1 MEDIUM WASHER (86300016330) 446 RON
223 1 1 RAISED CHEESE HEAD SCREW M 4X8 VERZ. DUO (86143025088) 446 RON
224 1 1 COVER PLATE BL 2,00X188X190 (81392017603) 5479 RON
225 1 1 PVC PRESSURE SPRING 22X13X130 (81391082681) 190 RON
226 1 1 GUARD SETTING LEVER (81391067259) 3689 RON
227 1 1 HEXAGON SOCKET HEAD CAP SCREW M 10X16 VE (86127043580) Indisponibil Indisponibil
228 1 1 PRESSURE PLATE BL 2,99X15,5X36 (81492020245) 446 RON
229 1 1 SETTING ROD, COGGED 6-KT SW14X285 VARIO (81495019264) 7157 RON
230 1 1 CAP, GUARD SETTING LEVER VERSTELLHEBELR (81391067267) 3018 RON
231 1 1 86134151119 - Indisponibil
232 1 1 SHIM RING 10X16X1 VERZ. (86306002170) Indisponibil Indisponibil
233 1 1 LOCK LEVER, RIGHT BL 4X50X165 RECHTS/SCH (81492019425) 3689 RON
234 1 1 LOCK LEVER, LEFT BL 4X50X165 LINKS/SCHWE (81492019433) 3689 RON
235 1 1 POLY-RIB PULLEY RDA 42X18 5JX42 (87240212921) 7157 RON
236 1 1 BEARING SHELL MIT O-RING 40X2,5 (81390028470) 7157 RON
238 1 1 DEEP GROOVE BALL BEARING 17X40X12 6203-2 (87100017703) 3689 RON
239 1 1 FENCE GUIDE BAR RD 10X75 (81395017884) 105 RON
240 1 1 FENCE BRACKET (82390008913) 10288 RON
241 1 1 Hex head screw (86103001135) 446 RON
242 1 1 Truss head screw (86110015990) 446 RON
243 1 1 7246017284 - Indisponibil
244 1 1 CLAMPING SLEEVE 4X20 (86503001665) 446 RON
245 1 1 BOLT, CHAIN TENSIONER RD 16X60,5 (81395016586) 190 RON
246 1 1 TORSION SPRING (87051005753) Indisponibil Indisponibil
247 1 1 CHAIN TENSIONER FL 20X4X90 (81492020237) 105 RON
248 1 1 7236011865 - Indisponibil
249 1 1 CHAIN SPROCKET RD 30,5X6,5 Z=10 T=8 (87246017292) 1564 RON
250 1 1 THREADED BOLT RD 14X20 10h9 RUNDUMBESCHI (81395028584) 105 RON
251 1 1 BOLT RD 20X64,5 KURZ (81395016608) 190 RON
252 1 1 BOLT, LONG RD 20X89 LANG (81395016594) 3018 RON
253 1 1 STARLOCK WITHOUT CAP (87016056183) 446 RON
254 1 1 RETAINING RING FOR SHAFTS 16X1 (86400009900) 446 RON
255 1 1 SHIM RING 16X22X1 VERZ. (86306009760) Indisponibil Indisponibil
256 1 1 0911029154 - Indisponibil
257 1 1 FLAT BELT PULLEY cod vechi 87242017301 FLAT BELT PULLEY HC260C cod vechi 87242718199 cod vechi 316098270 (316079040 ) 4249 RON
258 1 1 GEARWHEEL Z=80/M=1,5 Z=15/T=8 (87247017342) Indisponibil Indisponibil
259 1 1 CUP SPRING 34X12,3X1 (87053010096) 446 RON
260 1 1 HEXAGON NUT UNF 1/2" VERZ. (86209017227) 446 RON
261 1 1 DRILL CHUCK COVER RAL 1021-1023 (81391007027) 1340 RON
262 1 1 THICKNESSER DRIVE GEAR COVER (81391005997) Indisponibil Indisponibil
265 1 1 REPAIR KIT ANTRIEBSRIEMEN HC 260 (81011720583) 26730 RON
300 1 1 SPACER BUSHING RD 15/8,2X25 (81391087560) 446 RON
301 1 1 Washer (86305002087) 446 RON
303 1 1 Hex head screw (86103001178) Indisponibil Indisponibil
304 1 1 SIDE PANEL NEUTRAL BL 1,50X252X438 (81382641023) 955 RON
305 1 1 Hex head screw (86103001151) 446 RON
306 1 1 Serrated lock washer (86304001745) 446 RON
307 1 1 BLIND RIVET, MUSHROOM HEAD 6X8 F FLACHRU (86621009530) 446 RON
308 1 1 FRONT PANEL BL 1,5X252X458 VORN (81382641040) 10288 RON
309 1 1 0911029120 - Indisponibil
310 1 1 Hex head screw (86103001267) 781 RON
311 1 1 POLY-RIB PULLEY RDA 94X50,5 5JX94 RDI 20 (87240066690) 15993 RON
312 1 1 Parallel key (86721059322) 446 RON
313 1 1 Cap screw (86121023081) 446 RON
314 1 1 MOTOR CARRIER BL 2,99X120X307 (81392065837) 3689 RON
315 1 1 CUP SQUARE NECK SCREW M 8X16 VERZ. (86110000632) 446 RON
316 1 1 CAPACITOR 37,5uF/400V 45,5X93 BOLZEN M 8 (88050011829) 10288 RON
317 1 1 CAPACITOR CLAMP BL 0,88X35X178,5 RDI 44 (81332025186) 1564 RON
318 1 1 Fillister head screw w. cross head (86172001791) Indisponibil Indisponibil
319 1 1 1011011795 - Indisponibil
320 1 1 1382641066 - Indisponibil
