PK 250/4,20 DNB - 0102504216 10 - 3 / 400V/50Hz
[0102504216 10]
PK 250/4,20 DNB - 0102504216 10 - 3 / 400V/50Hz
Click pentru a mari
Imagini suplimentare
PK 250/4,20 DNB - 0102504216 10 - 3 / 400V/50Hz
Click pentru a mari
PK 250/4,20 DNB - 0102504216 10 - 3 / 400V/50Hz
Click pentru a mari
PK 250/4,20 DNB - 0102504216 10 - 3 / 400V/50Hz
Click pentru a mari

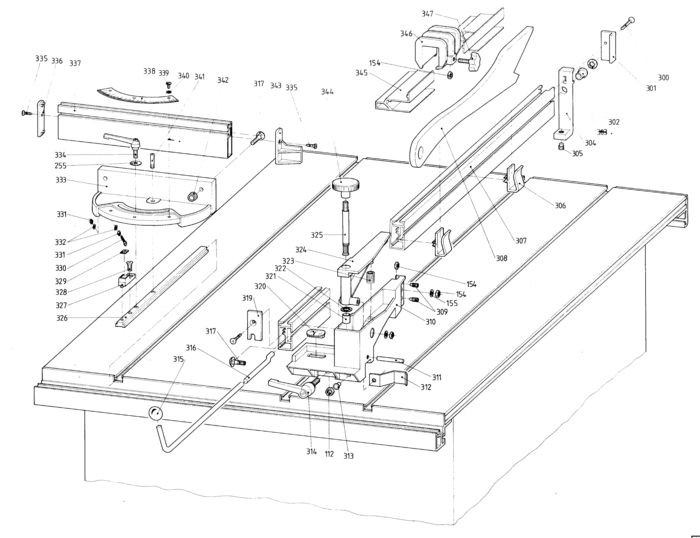

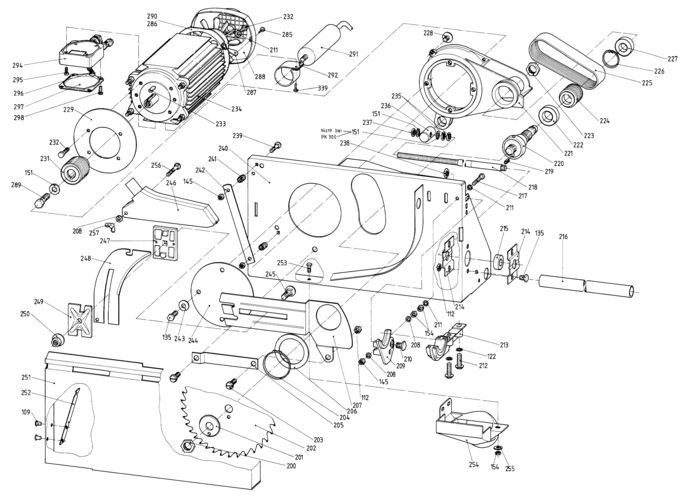

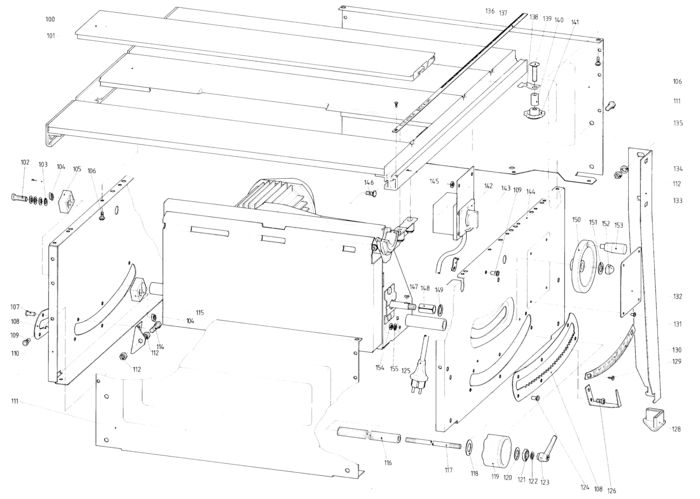

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
100 1 1 TABLE INSERT EXTRUSION 863 MM (81383213769) 3698 RON
101 1 1 TABLE M.EINLEGEPROFIL (82010200086) 220451 RON
102 1 1 Cap screw (86121000812) 446 RON
103 1 1 Cup spring (87053016795) 446 RON
104 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
105 1 1 Locking element,A (81380207482) 2124 RON
106 1 1 HEX.HEAD COLLAR DRILLING SCREW (86144063978) 446 RON
108 1 1 TOOTHED PLATE (81492200723) 5479 RON
109 1 1 BLIND RIVET, MUSHROOM HEAD 6X8 F FLACHRU (86621009530) 446 RON
110 1 1 REAR PANEL (81392200246) 21361 RON
111 1 1 SIDE PANEL (81392200211) 19236 RON
112 1 1 HEXAGON NUT (86200002235) Indisponibil Indisponibil
114 1 1 HEXAGON HEAD SCREW M 8X35 VERZ. (86103001208) 446 RON
115 1 1 Locking element,B (81380207474) 2124 RON
116 1 1 Rack (81393200746) 955 RON
117 1 1 Feed rod (81495207516) 3018 RON
118 1 1 MEDIUM WASHER (86300087696) 446 RON
119 1 1 Selector wheel (81391200390) 2459 RON
120 1 1 Washer (86300016713) 446 RON
121 1 1 HEXAGON THIN NUT (86205032396) 446 RON
122 1 1 Washer (86300016322) Indisponibil Indisponibil
123 1 1 RATCHET LOCK LEVER, FEMALE (87006028653) Indisponibil Indisponibil
124 1 1 BLIND RIVET, MUSHROOM HEAD (86621010407) 446 RON
126 1 1 HEXAGON SOCKET HEAD CAP SCREW (86121000731) 446 RON
128 1 1 RUBBER FOOT (87057019365) 1564 RON
129 1 1 Fillister head screw (86172016683) 446 RON
130 1 1 ARBOR TILT SCALE 1,00 45-0 GRAD (81141200468) 3689 RON
131 1 1 BLIND RIVET, MUSHROOM HEAD (86621010474) 446 RON
133 1 1 LEG (81392200254) 8275 RON
134 1 1 Serrated lock washer (86304001745) 446 RON
135 1 1 Hex head screw (86103001178) Indisponibil Indisponibil
136 1 1 86172039632 - Indisponibil
137 1 1 STEEL TAPE MEASURE 0,165X13X707 0-44,20 (81142200623) 955 RON
138 1 1 SPRING PLATE 0,3X22X60 LEICHT GE?LT (81392204918) 781 RON
139 1 1 Truss head screw (86110015990) 446 RON
140 1 1 SPACER BUSHING RD 15/8,2X25 (81391087560) 446 RON
141 1 1 STARKNOB NUT M 8 (DIN 934) VERZINKT (87000028937) 105 RON
142 1 1 1010014499 - Indisponibil
143 1 1 CABLE CLIP (87052078118) 446 RON
144 1 1 FRONT PANEL (81392200238) 21361 RON
145 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
146 1 1 CUP SQUARE NECK SCREW (86110000594) 446 RON
147 1 1 WOODRUFF KEY (86720008538) 446 RON
148 1 1 SPACER SLEEVE (86442200309) 105 RON
149 1 1 Washer (86300019984) 446 RON
150 1 1 HANDWHEEL (87003087322) 11519 RON
151 1 1 Washer (86300016705) Indisponibil Indisponibil
152 1 1 CAP NU (86201074264) 105 RON
153 1 1 7004076740 - Indisponibil
154 1 1 Hex nut (86200002219) 446 RON
155 1 1 Serrated lock washer (86304084047) 446 RON
200 1 1 HEXAGON THIN NUT (86205008460) 1340 RON
201 1 1 BLADE COLLAR, OUTER RD 57,5X5 (81395201731) 3689 RON
202 1 1 0910030990 - Indisponibil
203 1 1 BEARING BOLT (81395200611) 1340 RON
204 1 1 RETAINING RING FOR SHAFTS (86400087588) 105 RON
205 1 1 PILOT LINK PLATE (81392200343) 781 RON
206 1 1 BALL BEARING SHIM RING (87140006941) 1340 RON
207 1 1 RIVING KNIFE CARRIER PLATE (81392207151) 5479 RON
208 1 1 Washer Washer cod vechi 86300016365 (141151940) 446 RON
209 1 1 SWIVEL SEGMENT, PAIR (82390200199) 8275 RON
210 1 1 HEXAGON HEAD SCREW M 10X20 VERZ. (86103005270) 446 RON
211 1 1 Serrated lock washer (86304084047) 446 RON
213 1 1 TABLE SECTION (82390200202) 8275 RON
214 1 1 BEARING PLATE (81392200289) 781 RON
215 1 1 DEEP GROOVE BALL BEARING (87100136915) Indisponibil Indisponibil
216 1 1 SETTING TUBE (81393207503) 8275 RON
217 1 1 HEXAGON HEAD SCREW (86103000430) 446 RON
218 1 1 FEED SPINDLE RD 16X565 (81495024381) 18341 RON
219 1 1 CLAMPING SLEEVE (86503001711) 446 RON
220 1 1 SAW BLADE SPINDLE RD 57X137 AUFNAHME RD (81385212867) 26730 RON
221 1 1 Gear housing (81390200753) 39481 RON
222 1 1 DEEP GROOVE BALL BEARING (87100016812) 5479 RON
223 1 1 HEXAGON THIN NUT (86205052753) 781 RON
224 1 1 POLY-RIB PULLEY (81395200050) 955 RON
225 1 1 POLY-RIB BELT (87233087313) 11519 RON
226 1 1 Retaining ring shaft (86401121364) 446 RON
227 1 1 DEEP GROOVE BALL BEARING (87100016995) 488 RON
228 1 1 HEXAGON HEAD SCREW (86103102632) 446 RON
229 1 1 CAM PLATE (81392200360) 2124 RON
231 1 1 POLY-RIB PULLEY (81395200980) 13756 RON
232 1 1 Cap screw (86121023081) 446 RON
233 1 1 Parallel key (86721059322) 446 RON
234 1 1 1010124103 - Indisponibil
235 1 1 HEXAGON NUT (86200017992) 446 RON
236 1 1 PULL BOLT (81395200271) 4249 RON
237 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202024139) 446 RON
238 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002313) 446 RON
239 1 1 Truss head screw (86110029436) 446 RON
240 1 1 CHIP CASE (81010214773) 4442 RON
241 1 1 PRESSURE SPRING (87051207240) 446 RON
242 1 1 GUIDE BRACKET (81482111056) 1564 RON
243 1 1 CUP SPRING (87053075104) 446 RON
244 1 1 COVER PLATE (81392200084) 2124 RON
245 1 1 CUP SQUARE NECK SCREW (86110000691) 781 RON
246 1 1 SAW BLADE GUARD WITH SUCTION PORT (81010698878) 19236 RON
247 1 1 riving knife carrier (82380075353) 4249 RON
248 1 1 Riving knife (81392200122) 5926 RON
249 1 1 PRESSURE PLATE BL 2,99X80X60 (81382213749) 781 RON
250 1 1 FLANGE NUT (86209002432) 105 RON
251 1 1 CHIP CASE COVER BL 1,5X318X637 (81382213803) 18341 RON
252 1 1 HOOK (81392200386) 781 RON
253 1 1 Hex head screw (86103015675) 446 RON
254 1 1 DUST EXTRACTION PORT (81391200501) 488 RON
255 1 1 Washer (86305002087) 446 RON
256 1 1 CUP SQUARE NECK SCREW M 6X40 VERZ. (86110000616) 446 RON
257 1 1 WING NUT M 6 GEW.-EINSATZ VERZINKT (87005125213) 446 RON
285 1 1 Fillister head screw w.fill. head screw (86172001805) 446 RON
286 1 1 MECHANICAL MOTORBRAKE ASSEMBLY KLEIN (88055046132) Indisponibil Indisponibil
287 1 1 FAN WING 120/13 WELLEND. 16 (81331408839) 105 RON
288 1 1 FAN COVER 120/13 (81331408847) 1340 RON
289 1 1 Hex head screw (86103001267) 781 RON
290 1 1 BRAKE PAD, MECHANICAL BRAKE ET (81332185329) 21361 RON
294 1 1 LOWER CASING, MOTOR TERM. BOX (81331409657) 2459 RON
295 1 1 Fillister head screw (86123002022) 446 RON
296 1 1 RECTIFIER, PRE-ASSEMBLED 230 V 3-PHASEN- (81010001141) 488 RON
297 1 1 LID, MOTOR TERMINAL BOX (81331409665) 105 RON
298 1 1 86189011421 - Indisponibil
300 1 1 COUNTERSUNK HEAD TAPPING SCREW (86174093740) 446 RON
301 1 1 END CAP (82391203710) 781 RON
302 1 1 STARLOCK WITHOUT CAP (87016056183) 446 RON
303 1 1 SPINDLE BUSHING RD 16X10 (81391029268) 446 RON
304 1 1 FENCE CLAMP PROFIL X 19,8 MM (81393200819) 3018 RON
305 1 1 HEX. SOCKET SET SCREW, DOG PT. M 8X12 VE (86163087683) 446 RON
306 1 1 SUPPORT CLIP 20X20X40 (82391201555) 105 RON
307 1 1 MITRE FENCE EXTRUSION 937 MM (81393200827) 33553 RON
308 1 1 Push stick (81394201630) 3018 RON
309 1 1 HEX. SOCKET SET SCREW, DOG PT. M 6X12 VE (86163026544) 446 RON
311 1 1 PARALLEL PIN 5 h8X45 (86500000153) 446 RON
312 1 1 PRESSURE PLATE BL 2,00X20X66,2 (81392203210) 781 RON
313 1 1 BLIND RIVET, MUSHROOM HEAD 5X10 F FLACHR (86621063896) 446 RON
314 1 1 RATCHET LOCK LEVER, MALE M 8X25 (87006088990) 3689 RON
315 1 1 BALL KNOB RD 25 (87008087711) 3018 RON
316 1 1 LOCK SHAFT RD 8X980/1001 (81395200859) 7157 RON
317 1 1 Truss head screw (86110031325) 446 RON
319 1 1 END SLEEVE II (81381201658) 105 RON
320 1 1 MAGNIFYING GLASS RD 30X10 (81391200528) 8275 RON
321 1 1 RUBBER CAP RD 11X20 (82391201725) 781 RON
322 1 1 STARLOCK (87016050711) 446 RON
323 1 1 PRESSURE SPRING RDI 11X1,2X36 (87051204055) 781 RON
324 1 1 ANGLE LEVER 37,6X70X149 (81391200560) 3689 RON
325 1 1 SETTING SHAFT RD 10X94,5 (81395200700) 1564 RON
326 1 1 Guide rail (81492027223) 8275 RON
327 1 1 ANGLE STOP (81391200439) 105 RON
328 1 1 CROSS RECESSED FLAT HEAD SCREW (86131059530) 446 RON
329 1 1 ADHESIVE LABEL 1,00X12X9 0,5 GRAD (81141200450) 781 RON
331 1 1 HEXAGON NUT (86200002197) 446 RON
332 1 1 Serrated lock washer (86304084020) 446 RON
333 1 1 MITRE FENCE BODY (81390200419) 13756 RON
334 1 1 RATCHET LOCK LEVER (87006003847) 3018 RON
335 1 1 COUNTERSUNK HEAD TAPPING SCREW (86174001942) 446 RON
336 1 1 End piece (82391091725) 781 RON
337 1 1 FENCE EXTRUSION 300 MM (81393005315) 7157 RON
338 1 1 ADHESIVE LABEL 1,00 48-0-48 GRAD (81141200441) 2459 RON
339 1 1 Fillister head screw w. cross head (86172001791) Indisponibil Indisponibil
340 1 1 MEDIUM WASHER (86300016330) 446 RON
341 1 1 SLOTTED HEADLESS SCREW (86160000340) 446 RON
342 1 1 Knurled nut (86241125058) 781 RON
343 1 1 PLUG QUERANSCHLAG (81391200145) 1340 RON
344 1 1 KNURLED KNOB (81395200719) 10288 RON
345 1 1 AUXILIARY FENCE EXTRUSION 650 MM (81393201661) 11519 RON
346 1 1 2390200733 - Indisponibil
347 1 1 STARKNOB SCREW RD40/M6X28 (DIN 933) VERZ (87001087775) 781 RON
7000 1 1 RIP FENCE EXTRUSION (82010200205) 3698 RON
7001 1 1 1010125223 - Indisponibil
7003 1 1 2010200108 - Indisponibil
7050 1 1 ANGLE GUIDE EXTRUSION 709 MM (81393204695) 26730 RON
