TH 2500 WNB - 0150025044 10 - GB 230V
[0150025044 10]
TH 2500 WNB - 0150025044 10 - GB 230V
Click pentru a mari
Imagini suplimentare
TH 2500 WNB - 0150025044 10 - GB 230V
Click pentru a mari

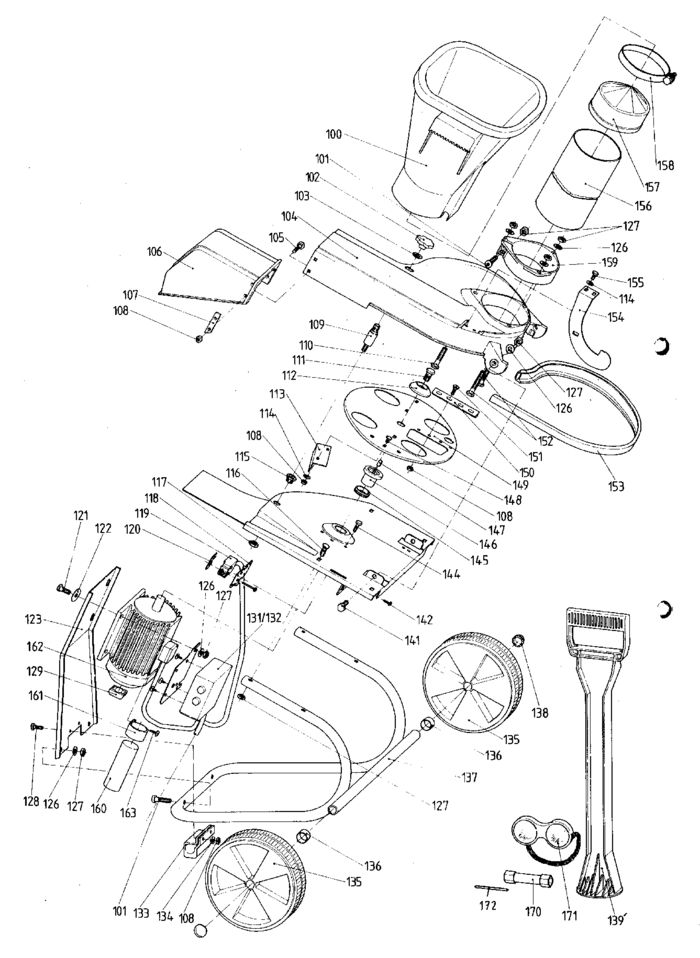

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
100 1 1 DROPCHUTE 390X390X340 ET (82391201865) 19236 RON
101 1 1 Cap screw (86121000812) 446 RON
102 1 1 STARKNOB NUT M 10 / RD 63 VERZINKT (87000074122) 1340 RON
103 1 1 WASHER (86305002494) 446 RON
104 1 1 HOUSING, SHREDDING WHEEL (81380210025) 83437 RON
105 1 1 CUP SQUARE NECK SCREW (86110000608) Indisponibil Indisponibil
106 1 1 EJECTION HOOD (82391201962) 15993 RON
107 1 1 COVER PLATE BL 1,5X15X70 (81482202221) 781 RON
108 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
109 1 1 COLLAR SCREW RD 17X75 (81485209782) 2459 RON
111 1 1 Hex head screw (86103001267) 781 RON
112 1 1 WASHER, SHREDDING WHEEL RD 58X15 (81492011068) 11519 RON
113 1 1 SHREDDING WHEEL WING BL 2,5X40X23 (81392202206) 1564 RON
114 1 1 Washer Washer cod vechi 86300016365 (141151940) 446 RON
115 1 1 COLLAR NUT 6KT SW17X18/M 14X1,5 MESSING (81385209793) 2459 RON
116 1 1 Truss head screw (86110015990) 446 RON
117 1 1 HEXAGON NUT M 14X1,5X9 (81485209804) 1564 RON
118 1 1 1482209870 - Indisponibil
119 1 1 LIMIT SWITCH (88116011850) 2848 RON
120 1 1 1382209881 - Indisponibil
121 1 1 HEXAGON HEAD SCREW M 8X25 VERZ. (86103001194) 446 RON
122 1 1 Washer (86305002486) 446 RON
123 1 1 PLATE, MOTOR PROTECTION BL 1,5X444X259 (81392201986) 8275 RON
126 1 1 Washer (86300016322) Indisponibil Indisponibil
127 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
128 1 1 Hex head screw (86103001135) 446 RON
129 1 1 CAP MOTORWELLE (81381083779) 446 RON
132 1 1 SWITCH/POWER CABLE ASSEMBLY MIT ENDSCHAL (88133016300) 93951 RON
133 1 1 RUBBER FOOT (82391201954) 5926 RON
134 1 1 Washer (86305002087) 446 RON
135 1 1 WHEEL, PLASTIC RD 250 NABE 20,6+0,4 (87270033053) 955 RON
136 1 1 SPACER SLEEVE RD 25/21,4X20 (86442011115) 105 RON
137 1 1 1015214089 - Indisponibil
138 1 1 STARLOCK WITH CAP RD 20 (87016026551) 105 RON
139 1 1 FEED STICK ET (82391201997) 18341 RON
141 1 1 1395203696 - Indisponibil
142 1 1 86172123889 - Indisponibil
144 1 1 HEXAGON HEAD SCREW M 6X16 VERZ.FLECKBESC (86103001356) 446 RON
145 1 1 V-SEAL RING VA-0030 F?R WELLE RD 29-31 (87631083280) 105 RON
146 1 1 FLANGE, SHREDDING WHEEL GENUTET (81395062480) 11519 RON
147 1 1 6721066817 - Indisponibil
148 1 1 CUP SQUARE NECK SCREW (86110000594) 446 RON
149 1 1 SHREDDING WHEEL BL 4X RD 320 ET (81392201900) 15993 RON
150 1 1 0915003206 - Indisponibil
151 1 1 FLAT COUNTERSUNK NIB BOLT M 6X16 VERZ. (86135123860) 446 RON
152 1 1 Hex head screw (86102045619) 446 RON
153 1 1 2391203221 - Indisponibil
154 1 1 1382209857 - Indisponibil
155 1 1 Hex head screw (86103015675) 446 RON
156 1 1 FEED TUBE ROHR RDA 133X2,6X600 (81392202230) 30980 RON
157 1 1 KICKBACK GUARD RD 143X50 ET (82391202187) 7157 RON
158 1 1 HOSE CLAMP RD 122-157X20 VERZ. 20 MM GEK (87811011082) 11519 RON
159 1 1 BOLT-ON RING RDI 133X42 (81390025609) 21361 RON
160 1 1 CAPACITOR 37,5uF/400V 45,5X93 BOLZEN M 8 (88050011829) 10288 RON
161 1 1 CAPACITOR CLAMP BL 0,88X35X178,5 RDI 44 (81332025186) 1564 RON
162 1 1 MECHANICAL MOTORBRAKE ASSEMBLY KLEIN (88055046132) Indisponibil Indisponibil
163 1 1 Fillister head screw w. cross head (86172001791) Indisponibil Indisponibil
170 1 1 BOX WRENCH SW 19X60 STIFT RD 8X300 VERZ. (89100125150) 3689 RON
171 1 1 1399095790 - Indisponibil
172 1 1 LOCK BAR (89103017960) 105 RON
