Top » Piese de schimb » PIESE METABO » 06406000

WX 21-230 - 06406000 - EU 230V
[06406000]
WX 21-230 - 06406000 - EU 230V
Click pentru a mari
Imagini suplimentare
WX 21-230 - 06406000 - EU 230V
Click pentru a mari

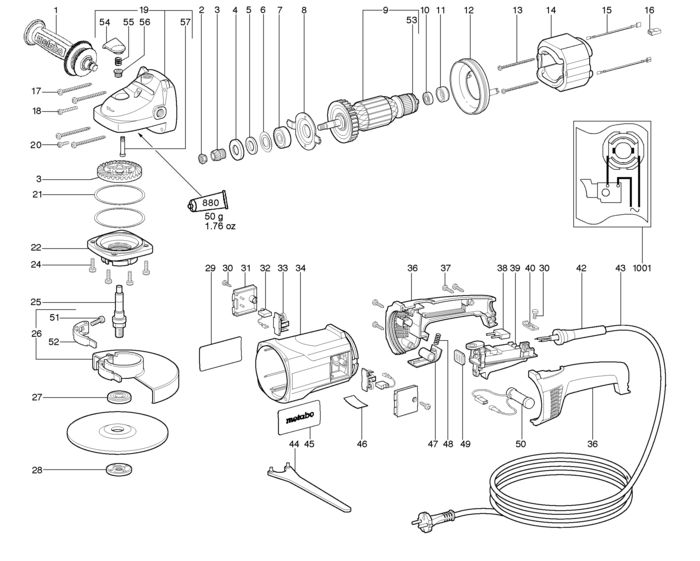

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Anti-vibration handle,M 14 (314000960) 10288 RON
2 1 1 Self locking nut (341100660) 1340 RON
3 1 1 Bevel gear cod vechi 316025290 Bevel gear (316045530) 24046 RON
4 1 1 Spacer ring (341011510) 2124 RON
5 1 1 Felt ring (143192440) 1340 RON
6 1 1 Cover washer (339070080) 781 RON
7 1 1 Ball bearing, 12x37x12 (143110670) 7157 RON
8 1 1 Bearing cover (339005920) 105 RON
9 1 1 310007020 - Indisponibil
10 1 1 Ball bearing, 8x22x7 (143113400) 488 RON
11 1 1 Rubber bearing (344094080) 781 RON
12 1 1 Baffle (339150950) 1340 RON
13 1 2 Self-tap. fill. h. screw (141121680) 446 RON
14 1 1 Field coil (311009590) 24046 RON
15 1 2 Strand (344493690) 781 RON
16 1 1 Insulating sleeve (142110090) 446 RON
17 1 4 Self-tap. fill. h. screw (141119370) 446 RON
18 1 1 Fillister head screw (141122020) 446 RON
19 1 1 Gear housing cpl. (316031720) Indisponibil Indisponibil
20 1 1 Fillister head screw (141119850) 446 RON
21 1 2 Sealing ring (339060140) 781 RON
22 1 1 Gear flange cpl. (316025300) Indisponibil Indisponibil
24 1 4 Fill. head screw(DIN 7985) (141121640) 446 RON
25 1 1 Spindle shaft (341602980) 11519 RON
26 1 1 Wheel guard cpl. (316022740) 19236 RON
27 1 1 Clamping flange (341031160) 488 RON
28 1 1 Flange nut (341106900) 3689 RON
29 1 1 Indication label (338117340) 446 RON
30 1 3 Screw (341702050) 446 RON
31 1 2 Cover (343376430) 781 RON
32 1 1 Carbon brush (316033950) 7157 RON
33 1 2 Brush guide (343000770) 2459 RON
34 1 1 Motor housing (315012760) 955 RON
36 1 1 Handle (upper+under part) (343368540) 10288 RON
37 1 4 Self-tap. fill. h. screw (141116020) 781 RON
38 1 1 Condenser (343253890) 3689 RON
39 1 1 Switch (343404130) Indisponibil Indisponibil
40 1 1 Cable clip (339127730) 446 RON
42 1 1 Cable sleeve (344094550) Indisponibil Indisponibil
43 1 1 Cable with plug (344487800) 13756 RON
44 1 1 Pin spanner (344160840) 2124 RON
45 1 1 Metabo label (338116010) 781 RON
46 1 1 Rating plate (338040640) 781 RON
47 1 1 Locking lever (343369570) 105 RON
48 1 1 Pressure spring (342002170) 446 RON
49 1 1 Flat gasket ring (344094980) 446 RON
50 1 1 Starting resistance (343253830) 5926 RON
51 1 1 Cap screw (141111330) 446 RON
52 1 1 Clamping lever cpl. (316025450) 488 RON
53 1 1 Sealing washer (343370770) 446 RON
54 1 1 Push button (343376440) 105 RON
55 1 1 Pressure spring (342001730) 446 RON
56 1 1 Guide bush (341003970) 1564 RON
57 1 1 Thrust bolt (341513810) 781 RON
880 1 1 Grease 100G (344130910) 5926 RON
1001 1 1 338502170 - Indisponibil
