Top » Piese de schimb » PIESE METABO » 0109025097 11

UK 220 W - 0109025097 11 - CH 230V
[0109025097 11]
UK 220 W - 0109025097 11 - CH 230V
Click pentru a mari
Imagini suplimentare
UK 220 W - 0109025097 11 - CH 230V
Click pentru a mari
UK 220 W - 0109025097 11 - CH 230V
Click pentru a mari
UK 220 W - 0109025097 11 - CH 230V
Click pentru a mari
UK 220 W - 0109025097 11 - CH 230V
Click pentru a mari

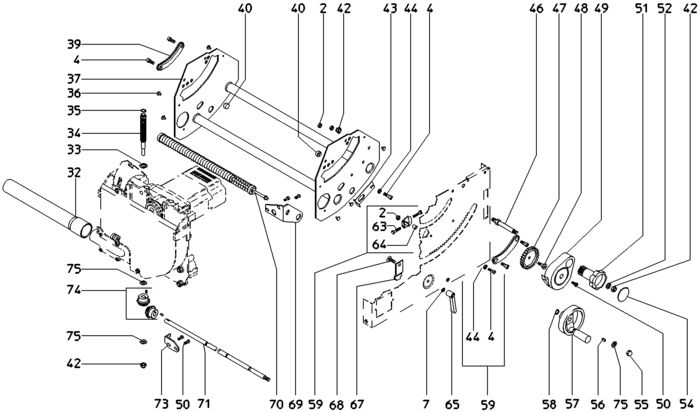

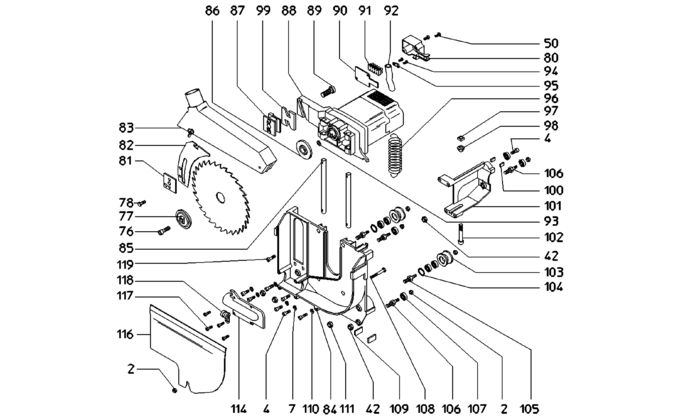

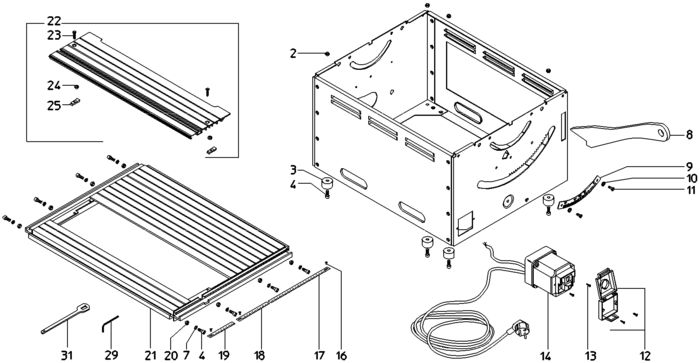

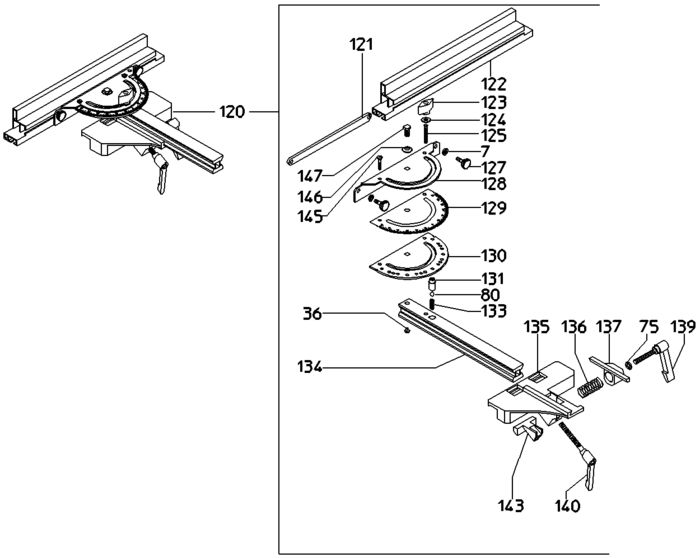

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
2 1 17 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
3 1 4 RUBBER FOOT RD 30X17,5 80 SHORE (87057208753) 781 RON
4 1 23 HEXAGON SOCKET HEAD CAP SCREW (86127059193) 446 RON
7 1 15 Washer Washer cod vechi 86300016365 (141151940) 446 RON
8 1 1 Push stick (81394201630) 3018 RON
9 1 1 ANGLE SCALE (81142215647) 190 RON
10 1 2 MEDIUM WASHER (86300016330) 446 RON
11 1 2 RAISED CHEESE HEAD SCREW (86143639612) 446 RON
12 1 1 PADLOCKABLE SWITCH GUARD (88118411022) 2124 RON
13 1 2 Fillister head screw w.fill. head screw (86172001805) 446 RON
14 1 1 8131660082 - Indisponibil
16 1 3 Fillister head screw (86172091014) 446 RON
17 1 1 SCALE 0,50X9,3X210 0,00-20,95 CM (81142221965) 2124 RON
18 1 1 SCALE 0,50X9,3X101 0,00-10,00 CM (81142221043) 2124 RON
19 1 1 SCALE 0,50X9,3X88 12,15-20,95 CM (81142221027) 190 RON
20 1 9 Flange nut (86209114230) 446 RON
21 1 1 TABLE ASSEMBLY UK220 (81010651120) 9821 RON
22 1 1 EXTRUSION, REMOV.TABLE SECTION KOMPLETT (81010657551) 34448 RON
23 1 2 Self-tapp. counters. screw (86174155800) 446 RON
24 1 2 7632183687 - Indisponibil
25 1 2 TIN NUT (86265167657) 781 RON
29 1 1 ALLEN HEXAGON KEY (89102016766) 781 RON
31 1 1 WRENCH, BLADE COLLAR, OUTE BD 2,5X33X175 (89105222162) 1340 RON
32 1 1 TUBE, DUST COLLECTION RDA 37X290 (81381221845) 4249 RON
33 1 1 MEDIUM WASHER (86300016349) 446 RON
34 1 1 THREADED ROD M 14LH X132 H?HENVERSTELLUN (81485221480) 955 RON
35 1 1 RETAINING WASHER RD 8 VERZ. (86404091580) 446 RON
36 1 13 GLIDE PIECE (82391202772) 446 RON
37 1 1 TILTING FRAME (81482221650) 3698 RON
39 1 2 SWIVEL SEGMENT (81380221442) 1564 RON
40 1 1 PLUG-IN BUFFER (82391203906) 446 RON
42 1 6 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
43 1 1 1482221927 - Indisponibil
44 1 2 CUP SPRING (87053081619) 446 RON
46 1 1 GEARWHEEL AXLE SW 13X87 (81485215308) 3689 RON
47 1 1 GEARWHEEL RD 62X19 (81380215329) 3018 RON
48 1 1 GEARWHEEL SW 13X28 (81485221740) 5479 RON
49 1 1 COVER, BEVEL GEAR DRIVE (81381221462) 105 RON
50 1 7 RAISED CHEESE HEAD SCREW (86123612815) 446 RON
51 1 1 HANDWHEEL, BLADE TILT (81381215330) 1564 RON
52 1 1 Washer (86305002486) 446 RON
54 1 1 HANDWHEEL COVER (81381212846) 446 RON
55 1 1 CAP NUT, SELF-LOCKING (86208073395) 446 RON
56 1 3 WOODRUFF KEY (86720008511) 446 RON
57 1 1 HANDWHEEL KOMPLETT UK/TKU ET (81010657543) 13756 RON
58 1 1 RETAINING RING FOR SHAFTS 10X1 VERZ. (86400047349) 446 RON
59 1 1 1010657535 - Indisponibil
63 1 2 HEXAGON HEAD TAPPING SCREW (86171028084) 446 RON
64 1 1 SPACER SLEEVE (86442059304) 446 RON
65 1 1 Clamping lever (87006072385) 2459 RON
67 1 1 BRAKE PAD BD 2,99X25X59,5 (81482221803) 781 RON
68 1 1 CUP SQUARE NECK SCREW (86110000594) 446 RON
69 1 1 SHOCK ABSORBER BRACKET II BD 2,99X74X112 (81482222818) 1340 RON
70 1 1 SHOCK ABSORBER UK 220 (81010194977) 21361 RON
71 1 1 ADVANCING SHAFT RD 10X477 (81485221731) 955 RON
73 1 1 SETTING PLATE BD 2,99X30X63,5 (81482222656) 781 RON
74 1 1 REPAIR KIT KEGELR?DER-H?HENVER. (81010657527) 5479 RON
75 1 4 Washer (86300016322) Indisponibil Indisponibil
76 1 1 Cap screw (86121000839) Indisponibil Indisponibil
77 1 1 BLADE COLLAR, OUTER (81482221900) Indisponibil Indisponibil
78 1 2 HEXAGON HEAD SCREW M 6X16 VERZ.FLECKBESC (86103001356) 446 RON
80 1 1 TERMINAL BOX MOTOR AM21 (81331700068) 1564 RON
81 1 1 RIVING KIFE PLATE (81482221595) 781 RON
82 1 1 RIVING KNIFE (81482221587) 8275 RON
83 1 1 SAW BLADE GUARD WITH SUCTION PORT (81010698878) 19236 RON
84 1 1 MOTORHEAD CARRIAGE (81380221400) 59166 RON
85 1 2 Guide (81385221491) 5926 RON
86 1 1 Blade collar, inner (81485221618) Indisponibil Indisponibil
87 1 1 RIVING KNIFE CARRIER (81380221434) 5926 RON
88 1 1 ELECTRIC MOTOR 1,8KW 230/1/50 AM21 DREHZ (81010720520) 14839 RON
89 1 1 POSITIONING SCREW (81485221570) 1564 RON
90 1 1 LID, TERMINAL BOX MOTOR AM21 (81331700076) 781 RON
91 1 1 TERMINAL BLOCK 1,5 mm? Nr.134S / VDE (88216628625) 781 RON
92 1 1 SLEEVE, CABLE SUPPORT TYP 15-561 (81341016980) 781 RON
93 1 1 SHIM RING 16X22X0,2 VERZ. (86306670482) 446 RON
94 1 2 Fillister head screw (86172100099) 446 RON
95 1 1 STRAIN RELIEF (88242033664) 446 RON
96 1 1 TENSION SPRING RD 2X34X30 (87051221952) 2124 RON
97 1 1 SQUARE THIN NUT M 8 VERZ. (86217109599) 446 RON
98 1 1 Flange nut (6209110995) 446 RON
99 1 1 SPACER PLATE BL 0,5X40X40 (81382666042) 1564 RON
100 1 2 FELT BRUSH 3,5X13X 8 KLEIN (89132221704) 446 RON
101 1 1 ROLLER ARM (81380221418) 13756 RON
102 1 1 Cap screw (86121016638) 446 RON
103 1 2 ROLLER RD 35X22 (81485221634) 5926 RON
104 1 2 CIRCLIP FOR BORES 19X1 (86401195007) 446 RON
105 1 2 ROLLER SHAFT M 8/M 6X44 (81485221642) 3018 RON
106 1 3 SETTING SHAFT SW 13X44 (81485221715) 5479 RON
107 1 8 DEEP GROOVE BALL BEARING 6X19X6 626 -2Z (87100047262) 1564 RON
108 1 1 HEXAGON HEAD SCREW (86103000430) 446 RON
109 1 4 FELT BRUSH 3,5X17X 26 GRO? (89132221690) 446 RON
110 1 2 O-RING 6X2 70 SHORE A (87632610097) 446 RON
111 1 2 HEXAGON NUT (86200002235) Indisponibil Indisponibil
114 1 1 DUST EXTRACTION PORT (81381221454) 1340 RON
116 1 1 COVER PLATE BL 1,50X196X276 (81382221725) 7157 RON
117 1 4 Fillister head screw (86172001830) 446 RON
118 1 2 CABLE CLIP (88242051328) 105 RON
119 1 4 HEXAGON SOCKET HEAD CAP SCREW M 6X20 VER (86121000758) 446 RON
120 1 1 0910019937 - Indisponibil
121 1 1 GLIDE RAIL FL 16X5X230 PARALLELANSCHLAG (81482214548) 3689 RON
122 1 1 AUXILIARY FENCE EXTRUSION 400 MM (81383222024) 13756 RON
123 1 1 WING NUT (87005658068) 781 RON
124 1 1 Washer (86305002087) 446 RON
125 1 1 HEX. SOCKET SET SCREW, FLAT PT (86161183502) 446 RON
127 1 2 KNURLED THUMB SCREW M 6X16 / RD 20 VERZ. (86143075468) 781 RON
128 1 1 ANGLE BRACKET BL 2,99X230X125,5 (81382656721) 11519 RON
129 1 1 ANGLE SCALE (81142216716) 488 RON
130 1 1 SHIM PLATE (81482216702) 13756 RON
131 1 1 LOCK BOLT (81485215979) 1564 RON
133 1 1 PRESSURE SPRING, MITRE FENCE (87051148694) 446 RON
134 1 1 DOVETAIL GUIDE (81383221990) 11519 RON
135 1 1 CLAMPING PAD ASSEMBLY (81380656732) 21361 RON
136 1 1 PRESSURE SPRING (87051207240) 446 RON
137 1 1 CLAMPING LEVER (81380655795) 4249 RON
139 1 1 RATCHET LOCK LEVER M8X60 UK/TKU /ET (81010657578) 5479 RON
140 1 1 RATCHET LOCK LEVER M8X100 UK/TKU /ET (81010657560) 5926 RON
143 1 1 LOCK PLATE (81380222031) 4249 RON
145 1 2 6123662723 - Indisponibil
146 1 1 CUP SPRING (87053010088) 446 RON
147 1 1 COLLAR SCREW (81485209480) 105 RON
