Top » Piese de schimb » PIESE METABO » 0109025054 10

UK 220 E - 0109025054 10 - EU 230V
[0109025054 10]
UK 220 E - 0109025054 10 - EU 230V
Click pentru a mari
Imagini suplimentare
UK 220 E - 0109025054 10 - EU 230V
Click pentru a mari
UK 220 E - 0109025054 10 - EU 230V
Click pentru a mari
UK 220 E - 0109025054 10 - EU 230V
Click pentru a mari

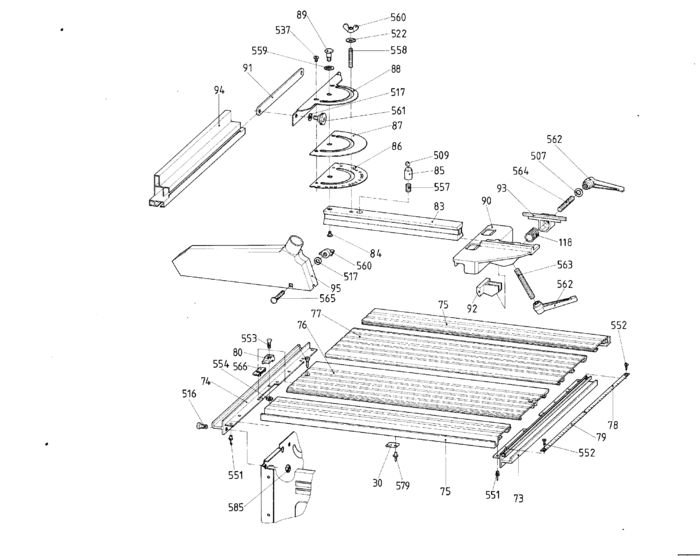

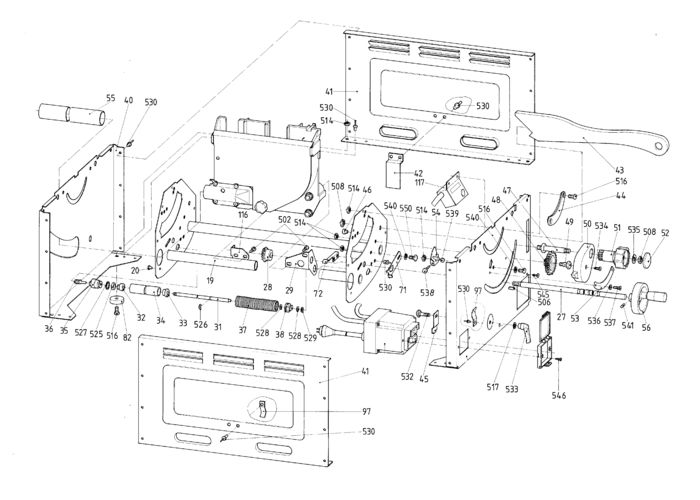

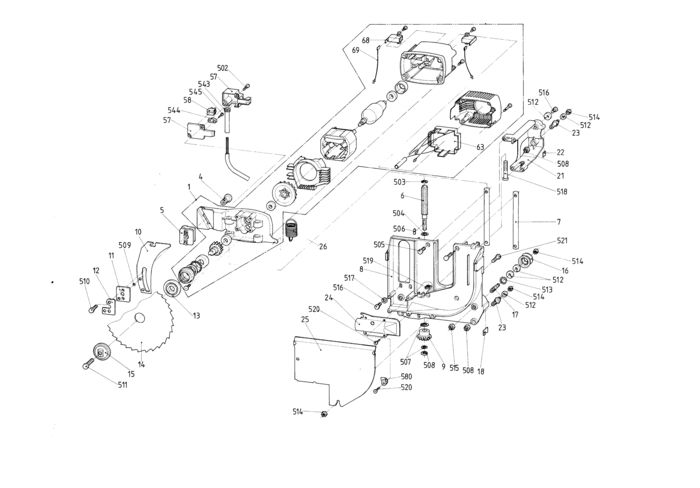

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 8012662433 - Indisponibil
4 1 1 POSITIONING SCREW (81485221570) 1564 RON
5 1 1 RIVING KNIFE CARRIER (81380221434) 5926 RON
6 1 1 THREADED ROD M 14LH X132 H?HENVERSTELLUN (81485221480) 955 RON
7 1 1 Guide (81385221491) 5926 RON
8 1 1 MOTORHEAD CARRIAGE (81380221400) 59166 RON
9 1 1 CONICAL GEAR WHEEL (81380613626) 190 RON
10 1 1 RIVING KNIFE (81482221587) 8275 RON
11 1 1 RIVING KIFE PLATE (81482221595) 781 RON
12 1 1 SPRING BAND (87052222014) 105 RON
13 1 1 Blade collar, inner (81485221618) Indisponibil Indisponibil
14 1 1 0910018965 - Indisponibil
15 1 1 BLADE COLLAR, OUTER (81482221900) Indisponibil Indisponibil
16 1 1 ROLLER RD 35X22 (81485221634) 5926 RON
17 1 1 ROLLER SHAFT M 8/M 6X44 (81485221642) 3018 RON
18 1 1 FELT BRUSH 3,5X17X 26 GRO? (89132221690) 446 RON
19 1 1 TILTING FRAME (81482221650) 3698 RON
20 1 1 GLIDE PIECE (82391202772) 446 RON
21 1 1 ROLLER ARM (81380221418) 13756 RON
22 1 1 FELT BRUSH 3,5X13X 8 KLEIN (89132221704) 446 RON
23 1 1 SETTING SHAFT SW 13X44 (81485221715) 5479 RON
24 1 1 DUST EXTRACTION PORT (81381221454) 1340 RON
25 1 1 1482221722 - Indisponibil
26 1 1 TENSION SPRING RD 2X34X30 (87051221952) 2124 RON
27 1 1 ADVANCING SHAFT RD 10X477 (81485221731) 955 RON
28 1 1 CONICAL GEAR WHEEL (81380613626) 190 RON
29 1 1 SHOCK ABSORBER BRACKET II BD 2,99X74X112 (81482222818) 1340 RON
30 1 1 SUPPORT PLATE BL 1,5X16,5X23 (81382222179) 781 RON
31 1 1 1485221758 - Indisponibil
32 1 1 PISTON, SHOCK ABSORBER (81381216183) 781 RON
33 1 1 VENT END PLUG (81381216167) 781 RON
34 1 1 1381221764 - Indisponibil
35 1 1 VENT END PLUG (81381216159) 781 RON
36 1 1 VALVE PIN,THREADED M 8X11/ 27 LANG (81485216223) 1340 RON
37 1 1 TENSION SPRING RDI 22X101X1,5 (87051221944) 1564 RON
38 1 1 HOLDER,CARRIAGE RETURN SPRING F?R STO?D (81381216175) 781 RON
40 1 1 1382628663 - Indisponibil
41 1 1 1382221792 - Indisponibil
42 1 1 RETENTION PLATE BL 2X40X110 (81382216780) 1564 RON
43 1 1 Push stick (81394201630) 3018 RON
44 1 1 SWIVEL SEGMENT (81380221442) 1564 RON
45 1 1 BRAKE PAD BD 2,99X25X59,5 (81482221803) 781 RON
46 1 1 PLUG-IN BUFFER (82391203906) 446 RON
47 1 1 GEARWHEEL AXLE SW 13X87 (81485215308) 3689 RON
48 1 1 GEARWHEEL RD 62X19 (81380215329) 3018 RON
49 1 1 GEARWHEEL SW 13X28 (81485221740) 5479 RON
50 1 1 COVER, BEVEL GEAR DRIVE (81381221462) 105 RON
51 1 1 HANDWHEEL, BLADE TILT (81381215330) 1564 RON
52 1 1 HANDWHEEL COVER (81381212846) 446 RON
53 1 1 ANGLE SCALE (81142215647) 190 RON
54 1 1 TILT STOP (81381221837) 781 RON
55 1 1 TUBE, DUST COLLECTION RDA 37X290 (81381221845) 4249 RON
56 1 1 HANDWHEEL (87003079524) 7157 RON
57 1 1 TERMINAL BOX ASSEMBLY (81381221209) 2459 RON
58 1 1 TERMINAL BLOCK 1,5 mm? Nr.134S / VDE (88216628625) 781 RON
63 1 1 SPEED DISPLAY VARIABLE DREHZAHL UK220E (88106222941) 34448 RON
68 1 1 CARBON BRUSH ASSEMBLY F?HRG. + ISOL. /E (81388190392) 4249 RON
71 1 1 1482221927 - Indisponibil
72 1 1 7052221930 - Indisponibil
73 1 1 1383221850 - Indisponibil
74 1 1 1383221869 - Indisponibil
75 1 1 TABLE EXTRUSION 539,9 MM AU?EN (81383221877) 18341 RON
76 1 1 1383222520 - Indisponibil
77 1 1 TABLE EXTRUSION 539,9 MM INNEN (81383221885) 24046 RON
78 1 1 SCALE 0,50X9,3X210 0,00-20,95 CM (81142221965) 2124 RON
79 1 1 1142221973 - Indisponibil
80 1 1 SPACER TISCHEINLEGEPROFIL (81381221608) 446 RON
82 1 1 RUBBER FOOT RD 30X17,5 80 SHORE (87057208753) 781 RON
83 1 1 DOVETAIL GUIDE (81383221990) 11519 RON
84 1 1 GLIDE PIECE (82391202772) 446 RON
85 1 1 LOCK BOLT (81485215979) 1564 RON
86 1 1 SHIM PLATE (81482216702) 13756 RON
87 1 1 ANGLE SCALE (81142216716) 488 RON
88 1 1 1382216721 - Indisponibil
89 1 1 COLLAR SCREW (81485209480) 105 RON
90 1 1 1380215990 - Indisponibil
91 1 1 GLIDE RAIL FL 16X5X230 PARALLELANSCHLAG (81482214548) 3689 RON
92 1 1 LOCK PLATE (81380222031) 4249 RON
93 1 1 CLAMPING LEVER (81380216031) 3689 RON
94 1 1 AUXILIARY FENCE EXTRUSION 400 MM (81383222024) 13756 RON
95 1 1 SAW BLADE GUARD WITH SUCTION PORT (81010698878) 19236 RON
97 1 1 CABLE CLIP (87052078118) 446 RON
116 1 1 SETTING PLATE BD 2,99X30X63,5 (81482222656) 781 RON
117 1 1 8106222950 - Indisponibil
118 1 1 PRESSURE SPRING (87051207240) 446 RON
502 1 1 RAISED CHEESE HEAD SCREW (86123612815) 446 RON
503 1 1 RETAINING WASHER RD 8 VERZ. (86404091580) 446 RON
504 1 1 MEDIUM WASHER (86300016349) 446 RON
505 1 1 HEXAGON SOCKET HEAD CAP SCREW M 6X20 VER (86121000758) 446 RON
506 1 1 WOODRUFF KEY (86720008511) 446 RON
507 1 1 Washer (86300016322) Indisponibil Indisponibil
508 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
509 1 1 STEEL BALL RD 7,938 (87123148635) 446 RON
510 1 1 HEXAGON HEAD SCREW M 6X16 VERZ.FLECKBESC (86103001356) 446 RON
511 1 1 Cap screw (86121000839) Indisponibil Indisponibil
512 1 1 DEEP GROOVE BALL BEARING 6X19X6 626 -2Z (87100047262) 1564 RON
513 1 1 CIRCLIP FOR BORES 19X1 (86401195007) 446 RON
514 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
515 1 1 HEXAGON NUT (86200002235) Indisponibil Indisponibil
516 1 1 Cap screw (86121023081) 446 RON
517 1 1 Washer Washer cod vechi 86300016365 (141151940) 446 RON
518 1 1 Cap screw (86121016638) 446 RON
519 1 1 SQUARE THIN NUT M 8 VERZ. (86217109599) 446 RON
520 1 1 Fillister head screw (86172001830) 446 RON
521 1 1 HEXAGON HEAD SCREW (86103000430) 446 RON
522 1 1 Washer (86305002087) 446 RON
525 1 1 CUP SLEEVE 18X8X6/2 (87636149637) 105 RON
526 1 1 RETAINING WASHER RD 5 VERZ. (86404149626) 446 RON
527 1 1 O-RING 13X2 70 SHORE (87632114120) 446 RON
528 1 1 O-RING 5,23X2,62 70 SHORE (87632149640) 446 RON
529 1 1 STARLOCK (87016122305) 446 RON
530 1 1 BLIND RIVET, MUSHROOM HEAD 6X8 F FLACHRU (86621009530) 446 RON
532 1 1 CUP SQUARE NECK SCREW (86110000594) 446 RON
533 1 1 Clamping lever (87006072385) 2459 RON
534 1 1 RAISED CHEESE HEAD SCREW (86123002049) 446 RON
535 1 1 Washer (86305002486) 446 RON
536 1 1 Washer (86300016357) 446 RON
537 1 1 RAISED CHEESE HEAD SCREW M 5X6 VERZ. (86123149287) 446 RON
538 1 1 HEXAGON HEAD TAPPING SCREW (86171028084) 446 RON
539 1 1 SPACER SLEEVE (86442059304) 446 RON
540 1 1 CUP SPRING (87053081619) 446 RON
541 1 1 CLAMPING SLEEVE 4X20 (86503001665) 446 RON
543 1 1 SLEEVE, CABLE SUPPORT TYP 15-561 (81341016980) 781 RON
544 1 1 STRAIN RELIEF (88242033664) 446 RON
545 1 1 Fillister head screw (86172100099) 446 RON
546 1 1 Fillister head screw (86172001821) 446 RON
550 1 1 Hex head screw (86103001127) 446 RON
551 1 1 BLIND RIVET, MUSHROOM HEAD 5X8 F FLACHRU (86621075371) 446 RON
552 1 1 Fillister head screw (86172091014) 446 RON
553 1 1 CROSS RECESSED FLAT HEAD SCREW M 4X16 VE (86131178687) 446 RON
554 1 1 HEXAGON NUT (86200002197) 446 RON
557 1 1 PRESSURE SPRING, MITRE FENCE (87051148694) 446 RON
558 1 1 HEX. SOCKET SET SCREW, FLAT PT (86161183502) 446 RON
559 1 1 CUP SPRING (87053010088) 446 RON
560 1 1 WING NUT M 6 GEW.-EINSATZ VERZINKT (87005125213) 446 RON
561 1 1 KNURLED THUMB SCREW M 6X16 / RD 20 VERZ. (86143075468) 781 RON
562 1 1 RATCHET LOCK LEVER, FEMALE (87006028653) Indisponibil Indisponibil
563 1 1 HEX. SOCKET SET SCREW, DOG PT. (86163198736) 1564 RON
564 1 1 HEX. SOCKET SET SCREW, FLAT PT (86161029120) 781 RON
565 1 1 CUP SQUARE NECK SCREW M 6X45 VERZ. (86110000624) 446 RON
566 1 1 TIN NUT (86265167657) 781 RON
579 1 1 BLIND RIVET, MUSHROOM HEAD 5X6 F FLACHRU (86621604536) 446 RON
580 1 1 CABLE CLIP (88242051328) 105 RON
585 1 1 Flange nut (86209114230) 446 RON
7004 1 1 TABLE ASSEMBLY UK220 (81010651120) 9821 RON
