DB 2008/2S - 02008000 - EU 230V
[02008000]
DB 2008/2S - 02008000 - EU 230V
Click pentru a mari
Imagini suplimentare
DB 2008/2S - 02008000 - EU 230V
Click pentru a mari

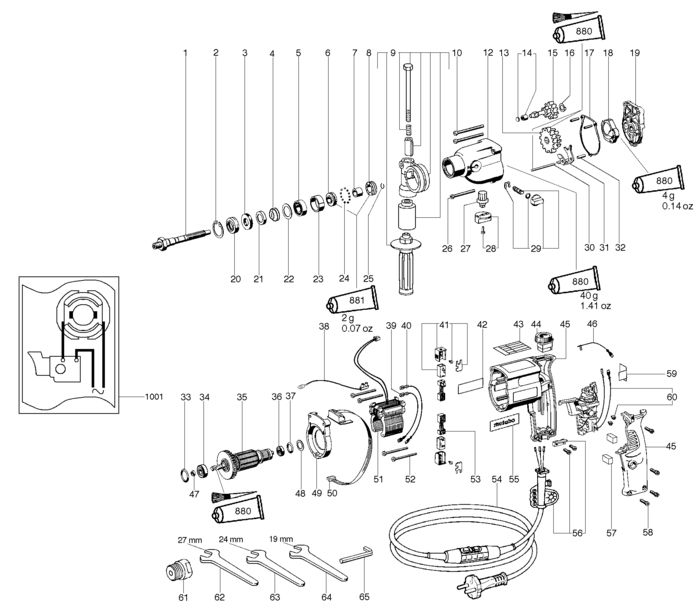

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Spindle (341602650) 13756 RON
2 1 1 Ring (141180710) 1340 RON
3 1 1 Felt ring (143193700) 446 RON
4 1 1 Frustrum spring (342020670) 446 RON
5 1 1 BALL BEARING, 15x32x9 (143110220) Indisponibil Indisponibil
6 1 1 Slotted disc (341050340) 2124 RON
7 1 1 Bush (341046380) 1564 RON
8 1 1 Slotted disc (341050250) 8275 RON
9 1 1 Support handle cpl. (314000790) 955 RON
10 1 2 Screw (341701860) 446 RON
12 1 1 Gear housing cpl. (316014480) 26730 RON
13 1 1 Sliding block (340001660) 15993 RON
14 1 1 Needle Sleeve cpl. (316029320) 488 RON
15 1 1 Intermediate gear (316014450) 26730 RON
16 1 1 Butting washer (339001090) 105 RON
17 1 1 Gasket (339210070) 1564 RON
18 1 1 Grease cover (339039610) 1340 RON
19 1 1 Gear flange cpl. (316006750) 15993 RON
20 1 1 Spacer ring (343359210) 105 RON
21 1 1 Spacer sheet (339002660) 446 RON
22 1 1 Washer (141153220) 446 RON
23 1 1 Spacer ring (339002670) 781 RON
24 1 15 Ball (143120020) 781 RON
25 1 1 Circlip (342020210) 446 RON
26 1 1 Screw (341701810) 446 RON
27 1 1 Shift axle cpl. (316017280) 105 RON
28 1 1 Control knob cpl. (316012380) 2459 RON
29 1 1 Control knob cpl. (316029300) 5926 RON
30 1 1 Guide bolt (341540010) 190 RON
31 1 1 Shift dog (339190010) 488 RON
32 1 3 Cylinder sleeve (142160480) 446 RON
33 1 1 O-ring (143192570) 781 RON
34 1 1 Ball bearing, 8x22x7 (143113400) 488 RON
35 1 1 Armature cpl. 220 V (310004850) 54357 RON
36 1 1 Ball bearing, 6x19x6 (143112230) Indisponibil Indisponibil
37 1 1 O-ring (143192430) Indisponibil Indisponibil
38 1 1 Strand (344493890) 190 RON
39 1 1 Strand cpl. AWG18SW (344488800) 105 RON
40 1 1 Strand cpl. AWG18SW (344488610) 105 RON
41 1 2 Carbon Guide cpl. (316029330) 488 RON
42 1 1 Rating plate (338037110) 446 RON
43 1 1 Indication label (338114040) 446 RON
44 1 1 Potentiometer (343404080) 7157 RON
45 1 1 Motor housing with cover (315014970) 13756 RON
46 1 1 Strand cpl. AWG18SW (344488840) 105 RON
47 1 1 Sealing ring (343356500) 446 RON
48 1 1 Washer (141153400) 781 RON
49 1 1 Intermediate flange (343361150) 3018 RON
50 1 1 Diode housing cpl. (316013450) 11519 RON
51 1 1 Field coil 220 V (311007380) 2848 RON
52 1 4 Self-tap. fill. h. screw (141118260) 446 RON
53 1 1 Carbon brush (316033640) Indisponibil Indisponibil
54 1 1 Cable with plug (344493880) 14839 RON
55 1 1 Metabo Label 99 (338118370) 446 RON
56 1 1 Cable clamp (316029340) 1564 RON
57 1 2 Insert (344100070) 446 RON
58 1 4 Self-tap. fill. h. screw (141117060) 781 RON
59 1 1 Cover (339110510) 446 RON
60 1 1 Electronic unit 220 V (343065510) 3698 RON
61 1 1 Adaptor 1/2" x 1/4" (341055750) 21361 RON
62 1 1 344162570 - Indisponibil
63 1 1 Open-end spanner (344160070) 3689 RON
64 1 1 Open-end spanner (344161300) 2459 RON
65 1 1 Hexagonal key (344161530) 781 RON
880 1 1 Grease SGF 079 (344130270) 2459 RON
881 1 1 Grease 50Gr 1,8oz (344130930) 13756 RON
1001 1 1 338501950 - Indisponibil
