Top » Piese de schimb » PIESE METABO » 0102001010 14

PK 200 - 0102001010 14 - GB 230V
[0102001010 14]
PK 200 - 0102001010 14 - GB 230V
Click pentru a mari
Imagini suplimentare
PK 200 - 0102001010 14 - GB 230V
Click pentru a mari
PK 200 - 0102001010 14 - GB 230V
Click pentru a mari
PK 200 - 0102001010 14 - GB 230V
Click pentru a mari
PK 200 - 0102001010 14 - GB 230V
Click pentru a mari

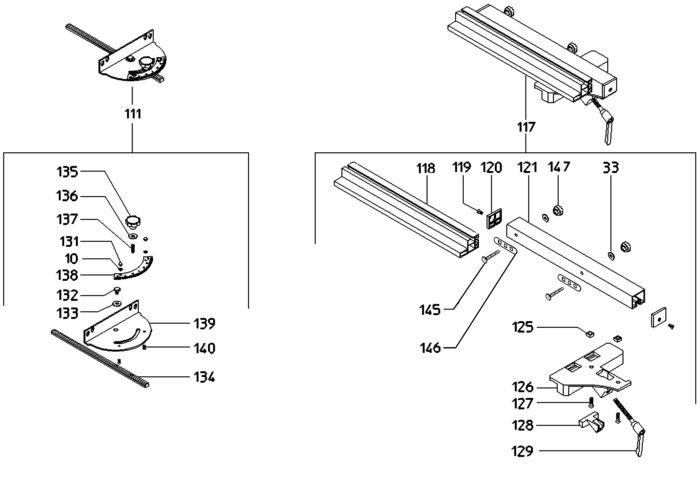

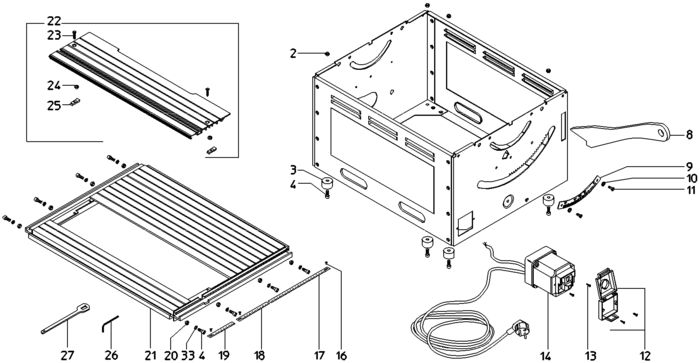

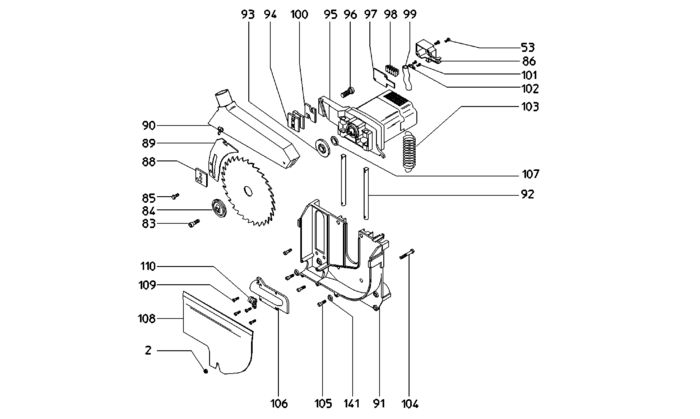

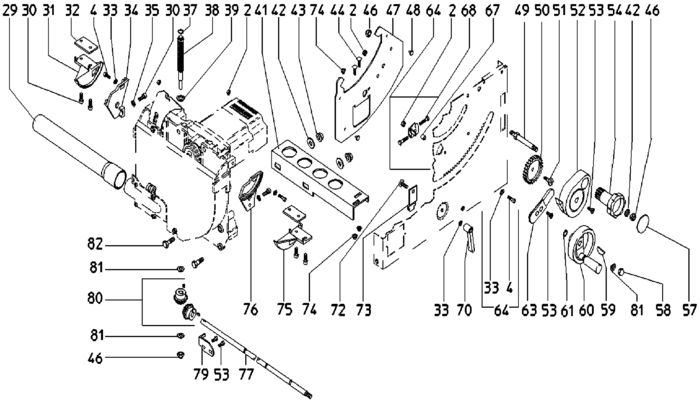

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
2 1 8 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
3 1 4 RUBBER FOOT RD 30X17,5 80 SHORE (87057208753) 781 RON
4 1 15 HEXAGON SOCKET HEAD CAP SCREW (86127059193) 446 RON
8 1 1 Push stick (81394201630) 3018 RON
9 1 1 ANGLE SCALE (81142215647) 190 RON
10 1 4 MEDIUM WASHER (86300016330) 446 RON
11 1 2 RAISED CHEESE HEAD SCREW (86143639612) 446 RON
12 1 1 PADLOCKABLE SWITCH GUARD (88118411022) 2124 RON
13 1 2 Fillister head screw w.fill. head screw (86172001805) 446 RON
14 1 1 SWITCH/POWER CABLE ASSEMBLY UC230V (GB) (88133619110) 68673 RON
16 1 3 Fillister head screw (86172091014) 446 RON
17 1 1 SCALE 0,50X9,3X210 0,00-20,95 CM (81142221965) 2124 RON
18 1 1 SCALE 0,50X9,3X101 0,00-10,00 CM (81142221043) 2124 RON
19 1 1 SCALE 0,50X9,3X88 12,15-20,95 CM (81142221027) 190 RON
20 1 8 Flange nut (86209114230) 446 RON
21 1 1 TABLE ASSEMBLY PK200 (81010651111) 9821 RON
22 1 1 EXTRUSION, REMOV.TABLE SECTION KOMPLETT (81010657616) 2848 RON
23 1 2 Self-tapp. counters. screw (86174155800) 446 RON
24 1 2 7632183687 - Indisponibil
25 1 2 TIN NUT (86265167657) 781 RON
26 1 1 ALLEN HEXAGON KEY (89102016766) 781 RON
27 1 1 WRENCH, BLADE COLLAR, OUTE BD 2,5X33X175 (89105222162) 1340 RON
29 1 1 TUBE, DUST COLLECTION RDA 37X290 (81381221845) 4249 RON
30 1 6 HEXAGON SOCKET HEAD CAP SCREW (86121000731) 446 RON
31 1 1 TABLE SECTION HINTEN (81380220977) 3018 RON
32 1 2 FASTENING STRAP FL 16X5X48 /2XM6 (81482222788) 1564 RON
33 1 13 Washer Washer cod vechi 86300016365 (141151940) 446 RON
34 1 1 SWIVEL SEGMENT HINTEN (81380220950) 3018 RON
35 1 4 CUP SPRING (87053081619) 446 RON
37 1 1 RETAINING WASHER RD 8 VERZ. (86404091580) 446 RON
38 1 1 THREADED ROD M 14LH X132 H?HENVERSTELLUN (81485221480) 955 RON
39 1 1 MEDIUM WASHER (86300016349) 446 RON
41 1 1 LEVER, BLADE TILT BL 2,5X286X100 (81382220915) 5479 RON
42 1 3 Washer (86305002486) 446 RON
43 1 2 Flange nut (6209110995) 446 RON
44 1 2 CUP SQUARE NECK SCREW M 5X16 VERZ. (86110125036) 446 RON
46 1 3 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
47 1 1 SWIVEL PLATE BL 2,99X263X236 (81482220920) 7157 RON
48 1 4 GLIDE PIECE (82391202772) 446 RON
49 1 1 GEARWHEEL AXLE SW 13X87 (81485215308) 3689 RON
50 1 1 GEARWHEEL RD 62X19 (81380215329) 3018 RON
51 1 1 GEARWHEEL SW 13X28 (81485221740) 5479 RON
52 1 1 COVER, BEVEL GEAR DRIVE (81381221462) 105 RON
53 1 6 RAISED CHEESE HEAD SCREW (86123612815) 446 RON
54 1 1 HANDWHEEL, BLADE TILT (81381215330) 1564 RON
57 1 1 HANDWHEEL COVER (81381212846) 446 RON
58 1 1 CAP NUT, SELF-LOCKING (86208073395) 446 RON
59 1 3 WOODRUFF KEY (86720008511) 446 RON
60 1 1 HANDWHEEL KOMPLETT UK/TKU ET (81010657543) 13756 RON
61 1 1 RETAINING RING FOR SHAFTS 10X1 VERZ. (86400047349) 446 RON
63 1 1 SEGMENT PIECE (81381220938) 781 RON
64 1 1 1010657535 - Indisponibil
67 1 1 SPACER SLEEVE (86442059304) 446 RON
68 1 2 HEXAGON HEAD TAPPING SCREW (86171028084) 446 RON
70 1 1 Clamping lever (87006072385) 2459 RON
72 1 1 CUP SQUARE NECK SCREW (86110000594) 446 RON
73 1 1 BRAKE PAD BD 2,99X25X59,5 (81482221803) 781 RON
74 1 3 NUT AND WASHER ASSEMBLY (86209018460) 446 RON
75 1 1 TABLE SECTION VORNE (81380220969) 3018 RON
76 1 1 SWIVEL SEGMENT VORNE (81380220942) 3018 RON
77 1 1 ADVANCING SHAFT RD 10X385 (81485221090) 8275 RON
79 1 1 SETTING PLATE BD 2,99X30X63,5 (81482222656) 781 RON
80 1 1 REPAIR KIT KEGELR?DER-H?HENVER. (81010657527) 5479 RON
81 1 3 Washer (86300016322) Indisponibil Indisponibil
82 1 2 HEXAGON HEAD SCREW M 8X25 VERZ. (86103001194) 446 RON
83 1 1 Cap screw (86121000839) Indisponibil Indisponibil
84 1 1 BLADE COLLAR, OUTER (81482221900) Indisponibil Indisponibil
85 1 4 HEXAGON HEAD SCREW M 6X16 VERZ.FLECKBESC (86103001356) 446 RON
86 1 1 TERMINAL BOX MOTOR AM21 (81331700068) 1564 RON
88 1 1 RIVING KIFE PLATE (81482221595) 781 RON
89 1 1 RIVING KNIFE (81482221587) 8275 RON
90 1 1 SAW BLADE GUARD WITH SUCTION PORT (81010698878) 19236 RON
91 1 1 MOTORHEAD CARRIAGE (81380221400) 59166 RON
92 1 2 Guide (81385221491) 5926 RON
93 1 1 Blade collar, inner (81485221618) Indisponibil Indisponibil
94 1 1 RIVING KNIFE CARRIER (81380221434) 5926 RON
95 1 1 ELECTRIC MOTOR 1,8KW 230/1/50 AM21 DREHZ (81010720520) 14839 RON
96 1 1 POSITIONING SCREW (81485221570) 1564 RON
97 1 1 LID, TERMINAL BOX MOTOR AM21 (81331700076) 781 RON
98 1 1 TERMINAL BLOCK 1,5 mm? Nr.134S / VDE (88216628625) 781 RON
99 1 1 SLEEVE, CABLE SUPPORT TYP 15-561 (81341016980) 781 RON
100 1 1 SPACER PLATE BL 0,5X40X40 (81382666042) 1564 RON
101 1 2 Fillister head screw (86172100099) 446 RON
102 1 1 STRAIN RELIEF (88242033664) 446 RON
103 1 1 TENSION SPRING RD 2X34X30 (87051221952) 2124 RON
104 1 1 HEXAGON HEAD SCREW (86103000430) 446 RON
105 1 4 HEXAGON SOCKET HEAD CAP SCREW M 6X20 VER (86121000758) 446 RON
106 1 1 DUST EXTRACTION PORT (81381221454) 1340 RON
107 1 1 SHIM RING 16X22X0,2 VERZ. (86306670482) 446 RON
108 1 1 COVER PLATE BL 1,50X196X276 (81382221725) 7157 RON
109 1 4 Fillister head screw (86172001830) 446 RON
110 1 1 CABLE CLIP (88242051328) 105 RON
111 1 1 MITRE FENCE, PRE-ASSEMBLED (81010603265) 26730 RON
117 1 1 RIP FENCE, PRE-ASSEMBLED (81010603257) 64311 RON
118 1 1 AUXILIARY FENCE EXTRUSION 400 MM (81383220838) 10288 RON
119 1 2 Self-tapp. counters. screw (86174155800) 446 RON
120 1 2 EXTRUSION END CAP (81381220822) 105 RON
121 1 1 FENCE CARRIER EXTRUSION (81383220862) 13756 RON
125 1 2 SQUARE NUT (86218005126) 446 RON
126 1 1 CLAMPING PAD (81380220845) 24046 RON
127 1 2 CROSS RECESSED FLAT HEAD SCREW (86131009460) 446 RON
128 1 1 LOCK PLATE (81380222031) 4249 RON
129 1 1 RATCHET LOCK LEVER M8X100 UK/TKU /ET (81010657560) 5926 RON
131 1 2 CAP NUT M 4 VERZ. (86201001437) 446 RON
132 1 1 Hex fit bolt (86104220876) Indisponibil Indisponibil
133 1 1 Cup spring (87053016795) 446 RON
134 1 1 GUIDE RAIL 300 MM (81482221129) 7157 RON
135 1 1 STARKNOB NUT M 6 (DIN 934) VERZINKT (87000025466) 781 RON
136 1 1 Washer (86305002087) 446 RON
137 1 1 HEX. SOCKET SET SCREW, FLAT PT M 6X20 VE cod vechi 86161030528 (141124480) 446 RON
138 1 1 ANGLE SCALE 1,00 2X0-45 GRAD (81142221132) 190 RON
139 1 1 ANGLE BRACKET BL 2,99X125,6X170 (81382221148) 7157 RON
140 1 2 6131001531 - Indisponibil
141 1 2 O-RING 6X2 70 SHORE A (87632610097) 446 RON
145 1 2 Truss head screw (86110019490) 669 RON
146 1 2 GUIDE PLATE, FLIPSTOP (81392201587) 446 RON
147 1 2 Knurled nut (86241125058) 781 RON
7500 1 1 SPARE PARTS LIST 8-SEITIG /A4 ART.NR.010 (81153674988) 190 RON
