Top » Piese de schimb » PIESE METABO » 0102001010 11

PK 200 - 0102001010 11 - GB 230V
[0102001010 11]
PK 200 - 0102001010 11 - GB 230V
Click pentru a mari
Imagini suplimentare
PK 200 - 0102001010 11 - GB 230V
Click pentru a mari
PK 200 - 0102001010 11 - GB 230V
Click pentru a mari
PK 200 - 0102001010 11 - GB 230V
Click pentru a mari

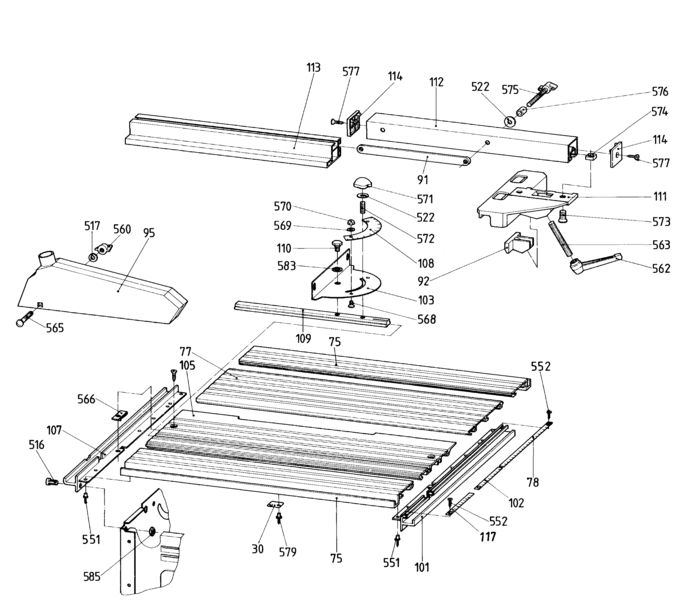

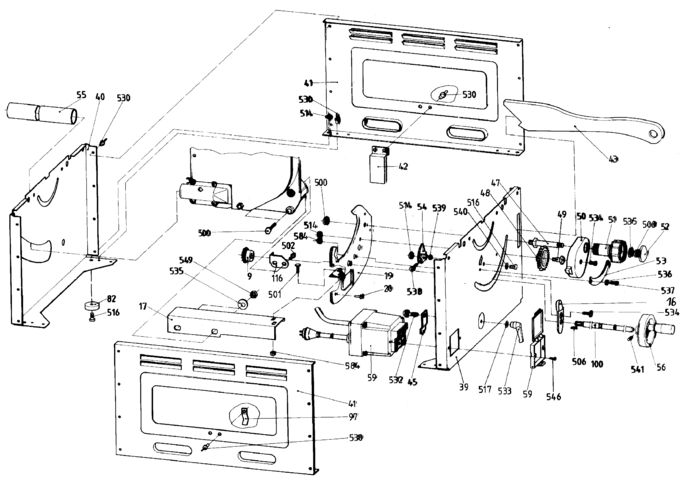

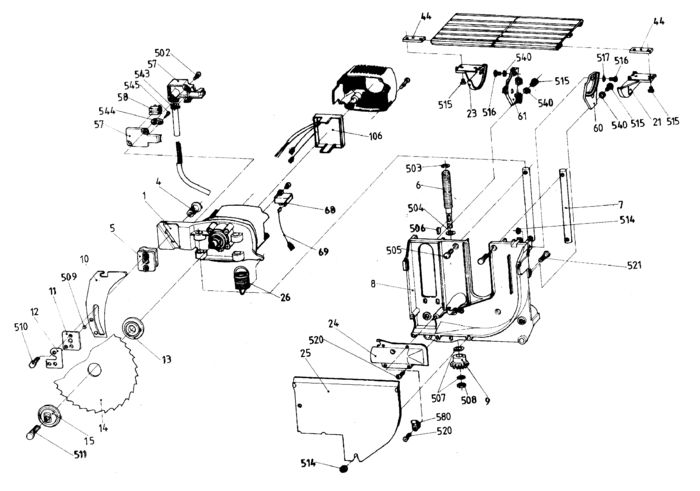

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 1010221150 - Indisponibil
4 1 1 POSITIONING SCREW (81485221570) 1564 RON
5 1 1 RIVING KNIFE CARRIER (81380221434) 5926 RON
6 1 1 THREADED ROD M 14LH X132 H?HENVERSTELLUN (81485221480) 955 RON
7 1 1 1485221499 - Indisponibil
8 1 1 MOTORHEAD CARRIAGE (81380221400) 59166 RON
9 1 1 CONICAL GEAR WHEEL (81380613626) 190 RON
10 1 1 RIVING KNIFE (81482221587) 8275 RON
11 1 1 RIVING KIFE PLATE (81482221595) 781 RON
12 1 1 SPRING BAND (87052222014) 105 RON
13 1 1 Blade collar, inner (81485221618) Indisponibil Indisponibil
14 1 1 0910018965 - Indisponibil
15 1 1 BLADE COLLAR, OUTER (81482221900) Indisponibil Indisponibil
16 1 1 SEGMENT PIECE (81381220938) 781 RON
17 1 1 LEVER, BLADE TILT BL 2,5X286X100 (81382220915) 5479 RON
19 1 1 SWIVEL PLATE BL 2,99X263X236 (81482220920) 7157 RON
20 1 1 GLIDE PIECE (82391202772) 446 RON
21 1 1 TABLE SECTION VORNE (81380220969) 3018 RON
23 1 1 TABLE SECTION HINTEN (81380220977) 3018 RON
24 1 1 DUST EXTRACTION PORT (81381221454) 1340 RON
25 1 1 1482221722 - Indisponibil
26 1 1 TENSION SPRING RD 2X34X30 (87051221952) 2124 RON
30 1 1 SUPPORT PLATE BL 1,5X16,5X23 (81382222179) 781 RON
39 1 1 1382221776 - Indisponibil
40 1 1 1382221784 - Indisponibil
41 1 1 1382221792 - Indisponibil
42 1 1 RETENTION PLATE BL 2X40X110 (81382216780) 1564 RON
43 1 1 Push stick (81394201630) 3018 RON
44 1 1 FASTENING STRAP FL 16X5X48 /2XM6 (81482222788) 1564 RON
45 1 1 BRAKE PAD BD 2,99X25X59,5 (81482221803) 781 RON
47 1 1 GEARWHEEL AXLE SW 13X87 (81485215308) 3689 RON
48 1 1 GEARWHEEL RD 62X19 (81380215329) 3018 RON
49 1 1 GEARWHEEL SW 13X28 (81485221740) 5479 RON
50 1 1 COVER, BEVEL GEAR DRIVE (81381221462) 105 RON
51 1 1 HANDWHEEL, BLADE TILT (81381215330) 1564 RON
52 1 1 HANDWHEEL COVER (81381212846) 446 RON
53 1 1 ANGLE SCALE (81142215647) 190 RON
54 1 1 TILT STOP (81381221837) 781 RON
55 1 1 TUBE, DUST COLLECTION RDA 37X290 (81381221845) 4249 RON
56 1 1 7003195370 - Indisponibil
57 1 1 TERMINAL BOX ASSEMBLY (81381221209) 2459 RON
58 1 1 TERMINAL BLOCK 2,5 mm? VDE 5VD4 301 /Nr. (88216103930) 446 RON
59 1 1 SWITCH/POWER CABLE ASSEMBLY UC230V (GB) (88133619110) 68673 RON
60 1 1 SWIVEL SEGMENT VORNE (81380220942) 3018 RON
61 1 1 SWIVEL SEGMENT HINTEN (81380220950) 3018 RON
64 1 1 1381221284 - Indisponibil
68 1 1 CARBON BRUSH ASSEMBLY F?HRG. + ISOL. /E (81388190392) 4249 RON
75 1 1 TABLE EXTRUSION 539,9 MM AU?EN (81383221877) 18341 RON
77 1 1 TABLE EXTRUSION 539,9 MM INNEN (81383221885) 24046 RON
78 1 1 SCALE 0,50X9,3X210 0,00-20,95 CM (81142221965) 2124 RON
82 1 1 RUBBER FOOT RD 30X17,5 80 SHORE (87057208753) 781 RON
91 1 1 GLIDE RAIL FL 16X5X230 PARALLELANSCHLAG (81482214548) 3689 RON
92 1 1 LOCK PLATE (81380222031) 4249 RON
95 1 1 SAW BLADE GUARD WITH SUCTION PORT (81010698878) 19236 RON
97 1 1 CABLE CLIP (87052078118) 446 RON
100 1 1 ADVANCING SHAFT RD 10X385 (81485221090) 8275 RON
101 1 1 ANGLE GUIDE EXTRUSION 426 MM VORNE (81383221060) 13756 RON
102 1 1 SCALE 0,50X9,3X101 0,00-10,00 CM (81142221043) 2124 RON
103 1 1 ANGLE BRACKET BL 2,99X125,6X170 (81382221148) 7157 RON
105 1 1 REMOVABLE TABLE SECTION 539,7 MM (81383221079) 26730 RON
106 1 1 8106221228 - Indisponibil
107 1 1 ANGLE GUIDE EXTRUSION 426 MM HINTEN (81383221052) 11519 RON
108 1 1 ANGLE SCALE 1,00 2X0-45 GRAD (81142221132) 190 RON
109 1 1 Guide rail (81492027223) 8275 RON
110 1 1 Hex fit bolt (86104220876) Indisponibil Indisponibil
111 1 1 CLAMPING PAD (81380220845) 24046 RON
112 1 1 FENCE CARRIER EXTRUSION (81383220862) 13756 RON
113 1 1 AUXILIARY FENCE EXTRUSION 400 MM (81383220838) 10288 RON
114 1 1 Guide rail (81492027223) 8275 RON
116 1 1 SETTING PLATE BD 2,99X30X63,5 (81482222656) 781 RON
117 1 1 SCALE 0,50X9,3X88 12,15-20,95 CM (81142221027) 190 RON
500 1 1 HEXAGON HEAD SCREW M 8X25 VERZ. (86103001194) 446 RON
501 1 1 CUP SQUARE NECK SCREW M 5X16 VERZ. (86110125036) 446 RON
502 1 1 RAISED CHEESE HEAD SCREW (86123612815) 446 RON
503 1 1 RETAINING WASHER RD 8 VERZ. (86404091580) 446 RON
504 1 1 MEDIUM WASHER (86300016349) 446 RON
505 1 1 HEXAGON SOCKET HEAD CAP SCREW M 6X20 VER (86121000758) 446 RON
506 1 1 WOODRUFF KEY (86720008511) 446 RON
507 1 1 Washer (86300016322) Indisponibil Indisponibil
508 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
509 1 1 STEEL BALL RD 7,938 (87123148635) 446 RON
510 1 1 HEXAGON HEAD SCREW M 6X16 VERZ.FLECKBESC (86103001356) 446 RON
511 1 1 Cap screw (86121000839) Indisponibil Indisponibil
514 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
515 1 1 HEXAGON SOCKET HEAD CAP SCREW (86121000731) 446 RON
516 1 1 Cap screw (86121023081) 446 RON
517 1 1 Washer Washer cod vechi 86300016365 (141151940) 446 RON
520 1 1 Fillister head screw (86172001830) 446 RON
521 1 1 HEXAGON HEAD SCREW (86103000430) 446 RON
522 1 1 Washer (86305002087) 446 RON
530 1 1 BLIND RIVET, MUSHROOM HEAD 6X8 F FLACHRU (86621009530) 446 RON
532 1 1 CUP SQUARE NECK SCREW (86110000594) 446 RON
533 1 1 Clamping lever (87006072385) 2459 RON
534 1 1 RAISED CHEESE HEAD SCREW (86123612815) 446 RON
535 1 1 Washer (86305002486) 446 RON
536 1 1 Washer (86300016357) 446 RON
537 1 1 RAISED CHEESE HEAD SCREW M 5X6 VERZ. (86123149287) 446 RON
538 1 1 HEXAGON HEAD TAPPING SCREW (86171028084) 446 RON
539 1 1 SPACER SLEEVE (86442059304) 446 RON
540 1 1 CUP SPRING (87053081619) 446 RON
541 1 1 CLAMPING SLEEVE 4X20 (86503001665) 446 RON
543 1 1 SLEEVE, CABLE SUPPORT TYP 15-561 (81341016980) 781 RON
544 1 1 STRAIN RELIEF (88242033664) 446 RON
545 1 1 Fillister head screw (86172100099) 446 RON
549 1 1 Flange nut (6209110995) 446 RON
551 1 1 BLIND RIVET, MUSHROOM HEAD 5X8 F FLACHRU (86621075371) 446 RON
552 1 1 Fillister head screw (86172091014) 446 RON
560 1 1 WING NUT M 6 GEW.-EINSATZ VERZINKT (87005125213) 446 RON
562 1 1 RATCHET LOCK LEVER, FEMALE (87006028653) Indisponibil Indisponibil
563 1 1 HEX. SOCKET SET SCREW, DOG PT. (86163198736) 1564 RON
565 1 1 CUP SQUARE NECK SCREW M 6X45 VERZ. (86110000624) 446 RON
566 1 1 TIN NUT (86265167657) 781 RON
568 1 1 6131001531 - Indisponibil
569 1 1 MEDIUM WASHER (86300016330) 446 RON
570 1 1 CAP NUT M 4 VERZ. (86201001437) 446 RON
571 1 1 STARKNOB NUT M 6 (DIN 934) VERZINKT (87000025466) 781 RON
572 1 1 HEX. SOCKET SET SCREW, FLAT PT M 6X20 VE cod vechi 86161030528 (141124480) 446 RON
573 1 1 CROSS RECESSED FLAT HEAD SCREW (86131009460) 446 RON
574 1 1 SQUARE NUT (86218005126) 446 RON
575 1 1 THUMB SCREW M 6X68 (86150190299) 105 RON
576 1 1 SPACER SLEEVE RD 15/6X18 (86442025779) Indisponibil Indisponibil
577 1 1 Self-tapp. counters. screw (86174155800) 446 RON
579 1 1 BLIND RIVET, MUSHROOM HEAD 5X6 F FLACHRU (86621604536) 446 RON
580 1 1 CABLE CLIP (88242051328) 105 RON
583 1 1 Cup spring (87053016795) 446 RON
584 1 1 FLANGE NUT (86209620098) 669 RON
585 1 1 Flange nut (86209114230) 446 RON
7001 1 1 MITRE FENCE, PRE-ASSEMBLED (81010603265) 26730 RON
7002 1 1 RIP FENCE, PRE-ASSEMBLED (81010603257) 64311 RON
7003 1 1 1010647254 - Indisponibil
7004 1 1 TABLE ASSEMBLY PK200 (81010651111) 9821 RON
