Top » Piese de schimb » PIESE METABO » 0000320013 10

BS 200 D - 0000320013 10 - 3 / 400V/50Hz
[0000320013 10]
BS 200 D - 0000320013 10 - 3 / 400V/50Hz
Click pentru a mari
Imagini suplimentare
BS 200 D - 0000320013 10 - 3 / 400V/50Hz
Click pentru a mari

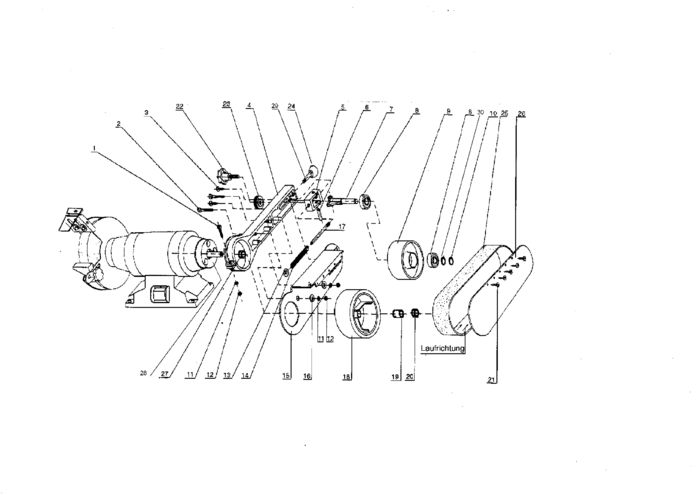

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HEXAGON SOCKET HEAD CAP SCREW M 6X30 VER (86121000774) 669 RON
2 1 2 HEXAGON HEAD SCREW M 6X30 VERZ. (86103019921) 446 RON
3 1 1 86172001848 - Indisponibil
4 1 1 LINISHING ARM GS (81300011990) 30980 RON
5 1 1 HOLDER (81301006116) 3018 RON
6 1 1 PARALLEL PIN 8 m6X32 (86500059123) 446 RON
7 1 1 ANGLE LEVER (81300408822) 7157 RON
8 1 2 DEEP GROOVE BALL BEARING (87100136915) Indisponibil Indisponibil
9 1 1 TRACKING WHEEL (81300080789) 24046 RON
10 1 1 RETAINING RING FOR SHAFTS (86400009897) 446 RON
11 1 3 Serrated lock washer (86304084047) 446 RON
12 1 3 Hex nut (86200002219) 446 RON
13 1 1 Washer (86300016322) Indisponibil Indisponibil
14 1 1 PRESSURE SPRING RD 2X13X120 (87051015520) 105 RON
15 1 1 SUPPORT BL 2,99X207X440 (81302080760) 18341 RON
16 1 2 Washer (86305002087) 446 RON
17 1 1 BOLT RD 8X140 (86631015504) 781 RON
18 1 1 CUP WHEEL GUMMI AUFVULKAN. (81300648548) 2848 RON
19 1 1 1405648535 - Indisponibil
20 1 1 HEXAGON NUT (86200017992) 446 RON
21 1 5 THREAD CUTTING SCRE A M 4X10 VERZ. (86175604829) 446 RON
22 1 1 STARKNOB SCREW RD40/M8X33 (DIN 933) VERZ (87001005922) 105 RON
23 1 1 KNURLED THUMB NUT, THIN TYPE M 8 VERZ. (86241005982) 1340 RON
24 1 1 BALL KNOB RD 32/ M 8 VERZINKT (87002015565) 1564 RON
25 1 1 1307015591 - Indisponibil
26 1 1 GUARD PLATE BL 1,50X132X443,5 (81302080751) 5926 RON
27 1 1 REDUCER RDA22/RDI17H7X11,5 (81405648527) 3018 RON
