Top » Piese de schimb » PIESE METABO » 06441260

WX 21-180 - 06441260 - EU 230V
[06441260]
WX 21-180 - 06441260 - EU 230V
Click pentru a mari
Imagini suplimentare
WX 21-180 - 06441260 - EU 230V
Click pentru a mari

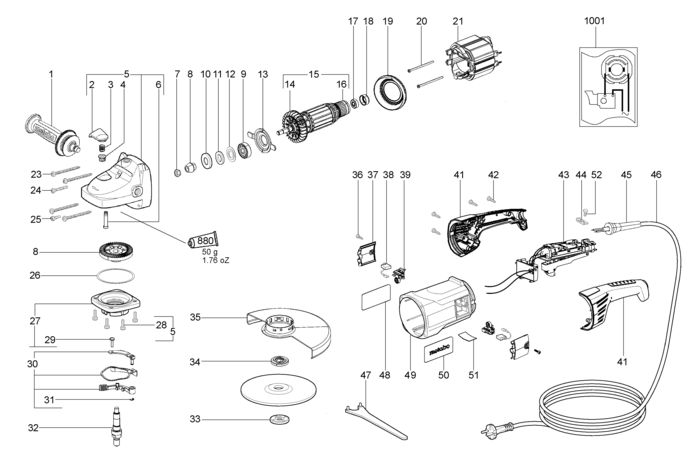

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Anti-vibration handle,M 14 (314000960) 10288 RON
2 1 1 Push button (343376440) 105 RON
3 1 1 Pressure spring (342001730) 446 RON
4 1 1 Guide bush (341003970) 1564 RON
5 1 1 Gear housing cpl. (316031720) Indisponibil Indisponibil
6 1 1 Thrust bolt (341513810) 781 RON
7 1 1 Self locking nut (341100660) 1340 RON
8 1 1 Bevel gear (316025280) 26730 RON
9 1 1 Ball bearing, 12x37x12 (143115230) 3018 RON
10 1 1 Spacer ring (341011510) 2124 RON
11 1 1 Felt ring (143192440) 1340 RON
12 1 1 Cover washer (339070080) 781 RON
13 1 1 Fixed bearing cover (339007280) 1340 RON
14 1 1 Fan w. dust guard (316045560) 4249 RON
15 1 1 Armature compl.,230 V (310009480) 59166 RON
16 1 1 Sealing washer (343390630) 446 RON
17 1 1 Ball bearing, 8x22x7 (143113400) 488 RON
18 1 1 Rubber bearing (344094080) 781 RON
19 1 1 Baffle (339151160) 781 RON
20 1 2 Self-tap. fill. h. screw (141121680) 446 RON
21 1 1 Field coil (311009590) 24046 RON
22 1 2 Strand compl.,230V (344498050) 669 RON
23 1 4 Self-tap. fill. h. screw (141119370) 446 RON
24 1 1 Fillister head screw (141122020) 446 RON
25 1 1 Fillister head screw (141119850) 446 RON
26 1 1 Sealing ring (339060140) 781 RON
27 1 1 Gear flange compl.,D180 (316045800) 18341 RON
28 1 4 Fill. head screw(DIN 7985) (141121640) 446 RON
29 1 1 Fillister head screw,(DIN 7985) (141123890) 446 RON
30 1 1 protective hood adjustment (316045360) 7157 RON
31 1 1 Circlip (141181500) 446 RON
32 1 1 Spindle shaft (341602980) 11519 RON
33 1 1 Flange nut (341106900) 3689 RON
34 1 1 Clamping flange (341031160) 488 RON
35 1 1 Wheel guard (339204020) 7157 RON
36 1 2 Screw (341702050) 446 RON
37 1 2 Cover (343376430) 781 RON
38 1 1 Carbon brush set,230 V (316045790) 5479 RON
39 1 2 Brush guide (343000770) 2459 RON
41 1 1 Handle (upper+under part) (343398260) 488 RON
42 1 4 Self-tap. fill. h. screw (141116020) 781 RON
43 1 1 Switch compl.,230V (316046440) 21361 RON
44 1 1 Cable clip (339127730) 446 RON
45 1 1 Cable sleeve (344094550) Indisponibil Indisponibil
46 1 1 Cable with plug (344487800) 13756 RON
47 1 1 Pin spanner (344160840) 2124 RON
48 1 1 Indication label (338117330) 446 RON
49 1 1 Motor housing (315012760) 955 RON
50 1 1 Metabo label (338122080) 669 RON
51 1 1 Rating plate (338053110) 446 RON
52 1 1 Self-tap. fill. h. screw (141116800) 446 RON
880 1 1 Grease 100G (344130910) 5926 RON
1001 1 1 338505320 - Indisponibil
