Top » Piese de schimb » PIESE METABO » 02175190

PE 12-175 - 02175190 - AU 240V
[02175190]
PE 12-175 - 02175190 - AU 240V
Click pentru a mari
Imagini suplimentare
PE 12-175 - 02175190 - AU 240V
Click pentru a mari

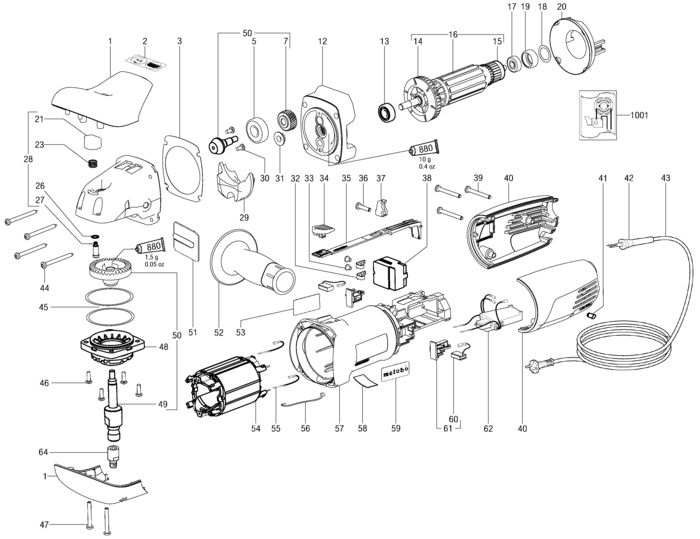

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Cover (343390160) 2459 RON
2 1 1 Label to read instructions (338117240) 446 RON
3 1 1 O-ring (143195450) 446 RON
5 1 1 Ball bearing, 10x30x9 (143112050) Indisponibil Indisponibil
7 1 1 spurwheel (340012440) 5926 RON
12 1 1 Gear flange cpl. (316037480) 34448 RON
13 1 1 Ball bearing, 8X 22X 7 (143115060) 2459 RON
14 1 1 Fan w. prot. Grid (316031210) Indisponibil Indisponibil
15 1 1 Tacho disc (343391120) 1564 RON
16 1 1 Armature 230 V (310008630) 39481 RON
17 1 1 Ball bearing, 6X 19X 6 (143114900) Indisponibil Indisponibil
18 1 1 Washer (141153340) 446 RON
19 1 1 Rubber bushing (344095260) 781 RON
20 1 1 Baffle (339150890) 781 RON
21 1 1 Push button yellow (343390140) 669 RON
23 1 1 Pressure spring (342001550) Indisponibil Indisponibil
26 1 1 Sealing washer (339006520) Indisponibil Indisponibil
27 1 1 Bolt (341513790) 1564 RON
28 1 1 Gear housing cpl. (316037470) 33553 RON
29 1 1 Insert (343390900) 669 RON
30 1 2 Fill. head screw(DIN 7985) (141119570) 446 RON
31 1 1 Sealing ring (343378120) 2459 RON
32 1 2 Flat plug (339080310) 446 RON
33 1 2 Fillister head screw (141115780) 446 RON
34 1 1 Switch slide (343394180) 669 RON
35 1 1 Switch rod (343391880) Indisponibil Indisponibil
36 1 1 Self-tap. fill. h. screw (141116020) 781 RON
37 1 1 Cable clip (343362490) 781 RON
38 1 1 Switch (343406740) 8275 RON
39 1 3 Self-tap. fill. h. screw (141116990) 781 RON
40 1 1 2 part motor cap (343375710) 2459 RON
41 1 1 Light transmission (343077280) 446 RON
42 1 1 Cable sleeve (344100970) 781 RON
43 1 1 Cable with plug (344494010) 8275 RON
44 1 4 Self-tap. fill. h. screw (341701470) 446 RON
45 1 2 Compensating Washer (339060160) 781 RON
46 1 4 Fillister head screw (141119860) 781 RON
47 1 2 Self-tap. fill. h. screw (141116980) 446 RON
48 1 1 Flange complete (343377210) Indisponibil Indisponibil
49 1 1 Spindle shaft (341603850) 10288 RON
50 1 1 Intermediate flange M14 cpl. (316037500) 49212 RON
51 1 1 Hand guard (339039540) 3689 RON
52 1 1 Handle cpl. (314000540) 488 RON
53 1 1 Rating plate (338045100) 669 RON
54 1 1 Field coil 230 V El (311009890) 26730 RON
55 1 2 Cable strand (344493960) 781 RON
56 1 1 Temperature sensor (343077490) 4249 RON
57 1 1 Motor housing (315012630) Indisponibil Indisponibil
58 1 1 399999990 - Indisponibil
59 1 1 M-Label,08 52x22 (338122160) 446 RON
60 1 1 Carbon brush (316035510) 5479 RON
61 1 2 Brush holder cpl. (316035480) 488 RON
62 1 1 Electronic unit (343079230) 24046 RON
64 1 1 399999990 - Indisponibil
880 1 1 Special grease 100Gr 3,6oz (344130840) Indisponibil Indisponibil
1001 1 1 338504140 - Indisponibil
