Top » Piese de schimb » PIESE METABO » 0901012440 10

DS 1610 - 0901012440 10 - -
[0901012440 10]
DS 1610 - 0901012440 10 - -
Click pentru a mari
Imagini suplimentare
DS 1610 - 0901012440 10 - -
Click pentru a mari

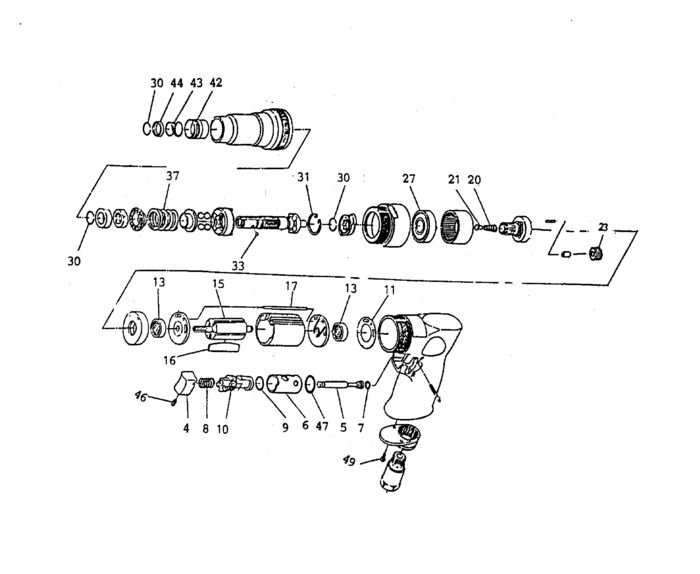

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
4 1 1 THROTTLE LEVER ET (81310159979) 2124 RON
5 1 1 VALVE STEM ET (81319159980) 2124 RON
6 1 1 REVERSING LEVER SEAT ET (81319160414) 5926 RON
7 1 1 O-RING 4,1X1,9 ET (87632160008) 1340 RON
8 1 1 VALVE SPRING ET (81319160015) 1340 RON
9 1 1 O-RING 11,2X1,6 ET (87632160024) 1340 RON
10 1 1 REVERSING LEVER ET (81310160420) 5479 RON
11 1 1 MOTOR GASKET ET (87631160047) 105 RON
13 1 2 DEEP GROOVE BALL BEARING 6X19X6 626 -2Z (87100047262) 1564 RON
15 1 1 ARMATURE ET (81319160449) 19236 RON
16 1 1 ROTOR VANE ET (81319160082) 190 RON
17 1 1 PIN ET (81319160457) 105 RON
20 1 1 SPRING ET (87051160481) 1340 RON
21 1 1 SPRING GUIDE ET (81319160490) 1340 RON
23 1 1 PLANETARY GEARWHEEL DW 1610/20 /ET (87247160510) 8275 RON
27 1 1 DEEP GROOVE BALL BEARING (cod vechi 7100083463 ) (143115730) 2459 RON
30 1 1 RETAINING RING ET (86400160560) 2459 RON
31 1 1 6401160572 - Indisponibil
33 1 1 STEEL BALL ET (87123160597) 1564 RON
37 1 1 PRESSURE SPRING (87051160635) 3689 RON
42 1 1 BALL RETAINER ET (81315160681) 3689 RON
43 1 1 SPRING ET (87051160694) 1340 RON
44 1 1 THRUST WASHER ET (81315160703) 105 RON
46 1 1 HEX. SOCKET SET SCREW, FLAT PT M 4X6 (86161158982) 446 RON
47 1 1 O-RING 13,5X1,95 ET (87632160180) 1340 RON
49 1 1 86172039632 - Indisponibil
