Top » Piese de schimb » PIESE METABO » 0250160011 11

HV 1600/100 D - 0250160011 11 - 3 / 400V/50Hz
[0250160011 11]
HV 1600/100 D - 0250160011 11 - 3 / 400V/50Hz
Click pentru a mari
Imagini suplimentare
HV 1600/100 D - 0250160011 11 - 3 / 400V/50Hz
Click pentru a mari

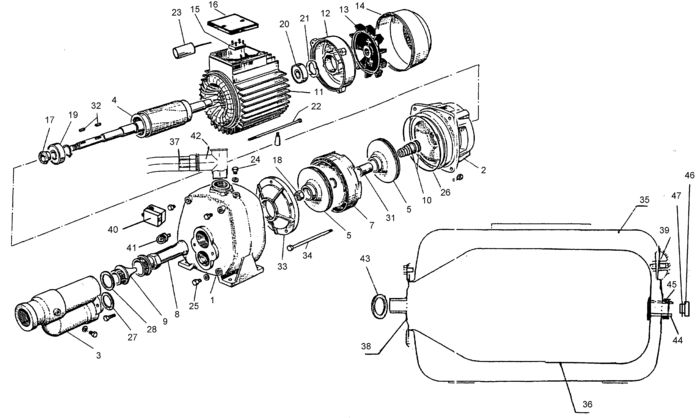

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 PUMP CASING ET (81349152092) 68673 RON
2 1 1 MOTOR BASE ET (81349152106) 54357 RON
3 1 1 INJECTOR ET (81349152114) 4442 RON
4 1 1 ARMATURE 400 V ET (81349152130) 59166 RON
5 1 1 IMPELLER ET (81349152149) 13756 RON
7 1 1 PEELER 2 TEILIG ET (81349152157) 13756 RON
8 1 1 JET PIPE ET (81349152165) 7157 RON
9 1 1 NOZZLE ET (81349152173) 190 RON
10 1 1 DUOCONE SEAL ET (81349152181) 15993 RON
11 1 1 STATOR 400 V ET (81349152203) 137236 RON
12 1 1 1349152211 - Indisponibil
13 1 1 COOLING FAN ET (81349152220) 190 RON
14 1 1 FAN COVER ET (81349152238) 7157 RON
15 1 1 TERMINAL BOARD 400 V ET (81349152246) 2459 RON
16 1 1 TERMINAL BOX 400 V ET (81349152440) 190 RON
17 1 1 SPLASH RING ET (81349152262) 781 RON
18 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002313) 446 RON
19 1 1 DEEP GROOVE BALL BEARING 20X47X14 6204-2 (87100016820) 488 RON
20 1 1 DEEP GROOVE BALL BEARING 20X47X14 6204-2 (87100016820) 488 RON
21 1 1 SPACER WASHER ET (81349152270) 781 RON
22 1 1 TIE ROD M 5X150 ET (81349152289) 446 RON
24 1 1 THREADED PLUG 1/4" ET (86109149193) 105 RON
25 1 1 THREADED PLUG 1/4" ET (86109149193) 105 RON
26 1 1 O-RING ET (87632152307) 1340 RON
27 1 1 FLAT PACKING RD 48 ET (81349152319) 781 RON
28 1 1 FLAT PACKING RD 55 ET (81349152327) 781 RON
31 1 1 SPACER RING ET (81349152335) 2124 RON
32 1 1 FEATHER KEY A 4X4X10 ET (86721152349) 446 RON
33 1 1 LID ET (81349152351) 7157 RON
34 1 1 HEXAGON HEAD SCREW M 5X60 VERZ. /ET (86103152362) 446 RON
35 1 1 PRESSURE VESSEL 100 LITER ZILMET /ET (81349650939) 245282 RON
36 1 1 RUBBER BAG 100LITER ET ZILMET (81349650394) 73930 RON
37 1 1 PRESSURE HOSE ET (87853152395) 30980 RON
38 1 1 1342635578 - Indisponibil
39 1 1 AIR VALVE ET ZILMET (100LTR.) (87830650959) 2459 RON
40 1 1 PRESSURE SWITCH 1/4"IG M.REDUZ.1/2"-1/4" (81349152432) 68673 RON
41 1 1 PRESSURE GAUGE, REAR CONNECT RD 40 R1/4" (87823127590) 11519 RON
42 1 1 TEE FITTING I/A 1" MITTELABG.1" ET (87871082469) 955 RON
43 1 1 1349152424 - Indisponibil
44 1 1 RETAINING SCREW, RUBBER BAG 1/2"AG / 100 (81349650947) 21361 RON
45 1 1 1349650971 - Indisponibil
46 1 1 6109610443 - Indisponibil
47 1 1 O-RING 10X2,5 ET (87632129836) 781 RON
7001 1 1 DOUBLE NIPPLE R 1/4"X45 ET (87806634764) 446 RON
7003 1 1 CAP, PRESSURE CONTROL SWITC 380 V / MDR (88101037801) 955 RON
